- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Roof Garden Project, Roof Garden Project
-
Design Style:
-
Industrial
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BPM GEOSYNTHETICS
-
Model Number:
-
BPMGMW
-
Type:
-
Plastic Drainage Cell
-
Product name:
-
Grass paver PP Polypropylene Drainage cell Drainage Board Geonet
-
Material:
-
HDPE/PP
-
Color:
-
Black Green
-
Size:
-
400mm*400mm
-
Height:
-
30mm
-
Service Temperature:
-
-20°C-120°C
-
Storage capacity:
-
3L/m2
-
Sample:
-
Available
-
package:
-
Pallet Packing
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
total solution for projects
-
Application:
-
Roof Garden Project, Roof Garden Project
-
Design Style:
-
Industrial
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BPM GEOSYNTHETICS
-
Model Number:
-
BPMGMW
-
Type:
-
Plastic Drainage Cell
-
Product name:
-
Grass paver PP Polypropylene Drainage cell Drainage Board Geonet
-
Material:
-
HDPE/PP
-
Color:
-
Black Green
-
Size:
-
400mm*400mm
-
Height:
-
30mm
-
Service Temperature:
-
-20°C-120°C
-
Storage capacity:
-
3L/m2
-
Sample:
-
Available
-
package:
-
Pallet Packing
Products Description

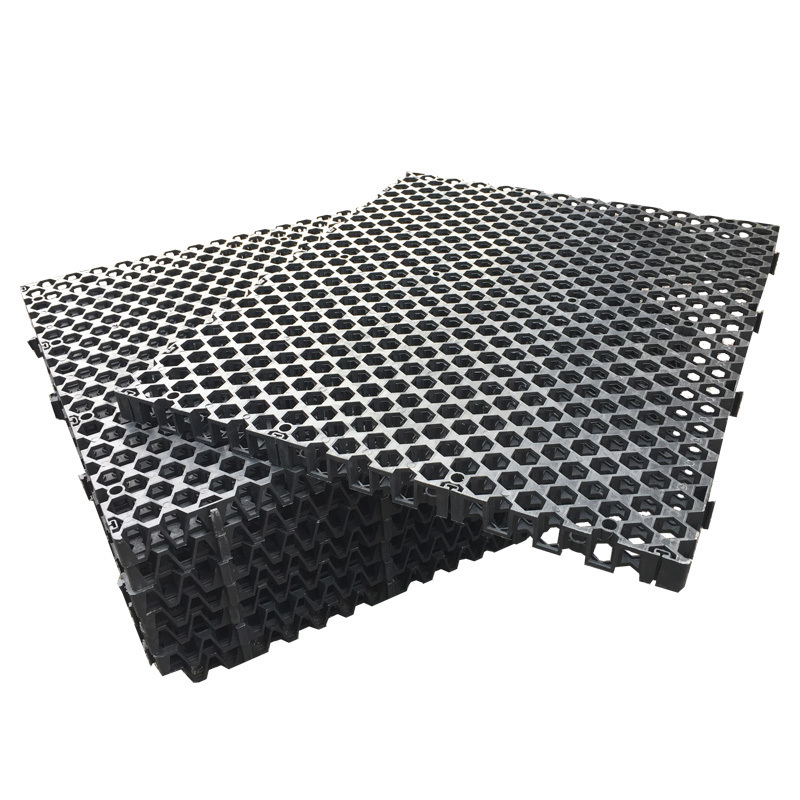

Grass paver PP Polypropylene Drainage cell Drainage Board Geonet
Drainage Board
are the single or multi-layered geosynthetic products which are often made with polypropylene PP or regenerated HDPE, some of them are covered with thermally bonded filament nonwoven geotextiles. BPM drainage Board products are widely used as drainage elements beneath traffic areas like frequently used pathways, car or truck usage, intensive green roofs or on vertical building components, etc. BPM brand high quality drainage board products include drainage net, drainage cell, drainage sheet, HDPE grass paver and other customized drainage boards.
Details Images
Technical Parameters
|
Product Name
|
Grass paver PP Polypropylene Drainage cell Drainage Board Geonet
|
|
Founction of drainage cell
|
water drainage and storage
|
|
Size:
|
50cm x 50cm / 40cm x 40cm
|
|
Height:
|
20mm, 25mm, 30mm, 50mm
|
|
Color:
|
white, black, green
|
|
Material:
|
HDPE/PP
|
|
Surface void area:
|
60% Min
|
|
Internal Void area:
|
88% Min
|
|
Compresive strength:
|
900KN/M2
|
Packing and Application
Drainage Cell 20mm Application
1. Greening project: the garage roof greening, roof garden, vertical greening, roof greening, football pitches, golf course, etc.
2. Municipal engineering: airport, road embankment, subway, tunnel, landfill, etc.
3. Construction: the upper or lower building foundation, inside and outside the basement wall, floor and roof, roof seepage
control and heat insulation layer, etc.
4. Water conservancy project: the reservoir seepage water, reservoir, lake water seepage control, etc.
5. Traffic engineering: highway, railway basement, roadbed, dam and slope protection layer, etc.
2. Municipal engineering: airport, road embankment, subway, tunnel, landfill, etc.
3. Construction: the upper or lower building foundation, inside and outside the basement wall, floor and roof, roof seepage
control and heat insulation layer, etc.
4. Water conservancy project: the reservoir seepage water, reservoir, lake water seepage control, etc.
5. Traffic engineering: highway, railway basement, roadbed, dam and slope protection layer, etc.
