Quick Details
-
Power:
-
132KW-600KW
-
Dimension(L*W*H):
-
different model
-
Weight:
-
2000 kg
-
Product granularity:
-
4-120mesh
-
Total power:
-
110-260kw
-
Dust removal area:
-
100-300㎡
-
Speed:
-
Variable speed
-
Productivity:
-
7-20t/h
-
Price:
-
Negotiatable
-
After Warranty Service:
-
Video technical support
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
guote
-
Voltage:
-
220v/380v
-
Power:
-
132KW-600KW
-
Dimension(L*W*H):
-
different model
-
Weight:
-
2000 kg
-
Product granularity:
-
4-120mesh
-
Total power:
-
110-260kw
-
Dust removal area:
-
100-300㎡
-
Speed:
-
Variable speed
-
Productivity:
-
7-20t/h
-
Price:
-
Negotiatable
-
After Warranty Service:
-
Video technical support
Product Overview
Sand Making Machine
our patent product, feeding size less than 3 cm, can make 4-120 mesh quartz plate sand
finished product：high purity, no pollution, large output, low investment
Basic Introduction
Vertical sand making machine is our company's patented product, with the characteristics of large output, high purity, pollution-free and less investment. The plate sand is
specially used for high-grade quartz plate, which can be used in plate, glass, ceramics, casting, construction and other industries.
specially used for high-grade quartz plate, which can be used in plate, glass, ceramics, casting, construction and other industries.
Outstanding advantages
1. Large output and high efficiency. 2. The sand production rate is high, more than 90%. 3. The product has good iron removal
effect. 4. The entire equipment structure is simple and reasonable, easy to operate, low failure rate, easy maintenance. 5.
Environment-friendly and dust-free.
effect. 4. The entire equipment structure is simple and reasonable, easy to operate, low failure rate, easy maintenance. 5.
Environment-friendly and dust-free.
Working principle
Feed requirements are less than 3cm, the material from the top of the equipment directly into the high-speed rotating turntable, at this time from the feed into the material and the surrounding into the material impact, stone hit stone, the formation of sand, you can get 4-120 qualified plate sand grain size.

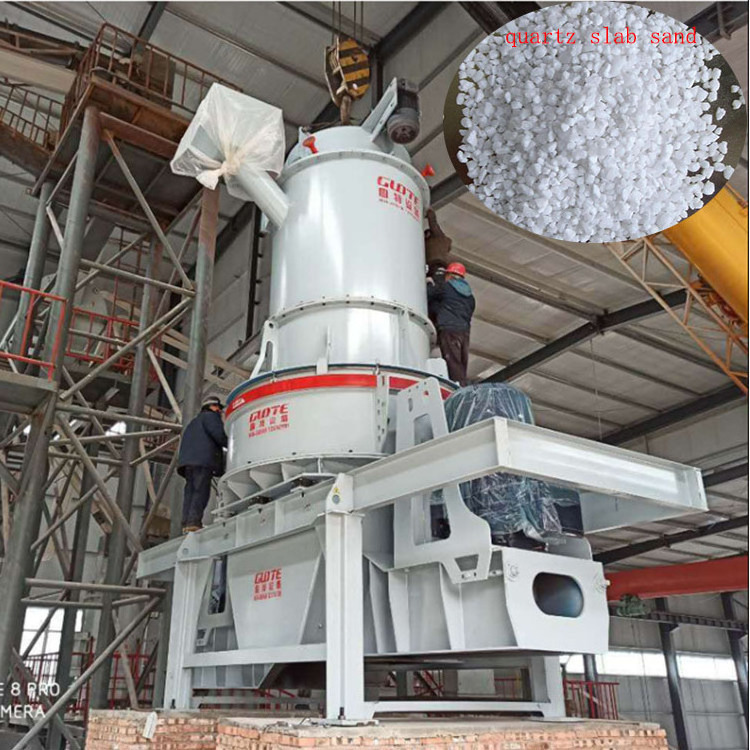

product scene picture
product scene picture
product scene picture
PRODUCT SPECIFICATIONS
|
Model
|
Feed granularity
（mm)
|
Product granularity
(mesh)
|
Total power
(kw)
|
Dust removal area
(㎡)
|
Rotating Speed
(rpm) |
Productivity
(t/h) |
|
GZP180
|
≤50
|
4-120
|
110
|
100
|
Variable speed
|
7-9
|
|
GZP200
|
≤80
|
4-120
|
130
|
150
|
|
8-12
|
|
GZP220
|
≤120
|
4-120
|
170
|
200
|
|
10-15
|
|
GZP260
|
≤150
|
4-120
|
260
|
300
|
|
15-20
|
Successful Project
Project in Vietnam
Project in Gangsu
Project in Xinjiang
