Quick Details
-
Application:
-
Silicone Rubber Making
-
Selling point:
-
automatic
-
Color:
-
Customized Color
-
Power:
-
27
-
System pressure:
-
200
-
Spare parts:
-
free
-
Origin:
-
China
-
Delivery:
-
30
-
Certificate:
-
CE ISO
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
KUSK
-
Weight:
-
5200
-
Application:
-
Silicone Rubber Making
-
Selling point:
-
automatic
-
Color:
-
Customized Color
-
Power:
-
27
-
System pressure:
-
200
-
Spare parts:
-
free
-
Origin:
-
China
-
Delivery:
-
30
-
Certificate:
-
CE ISO

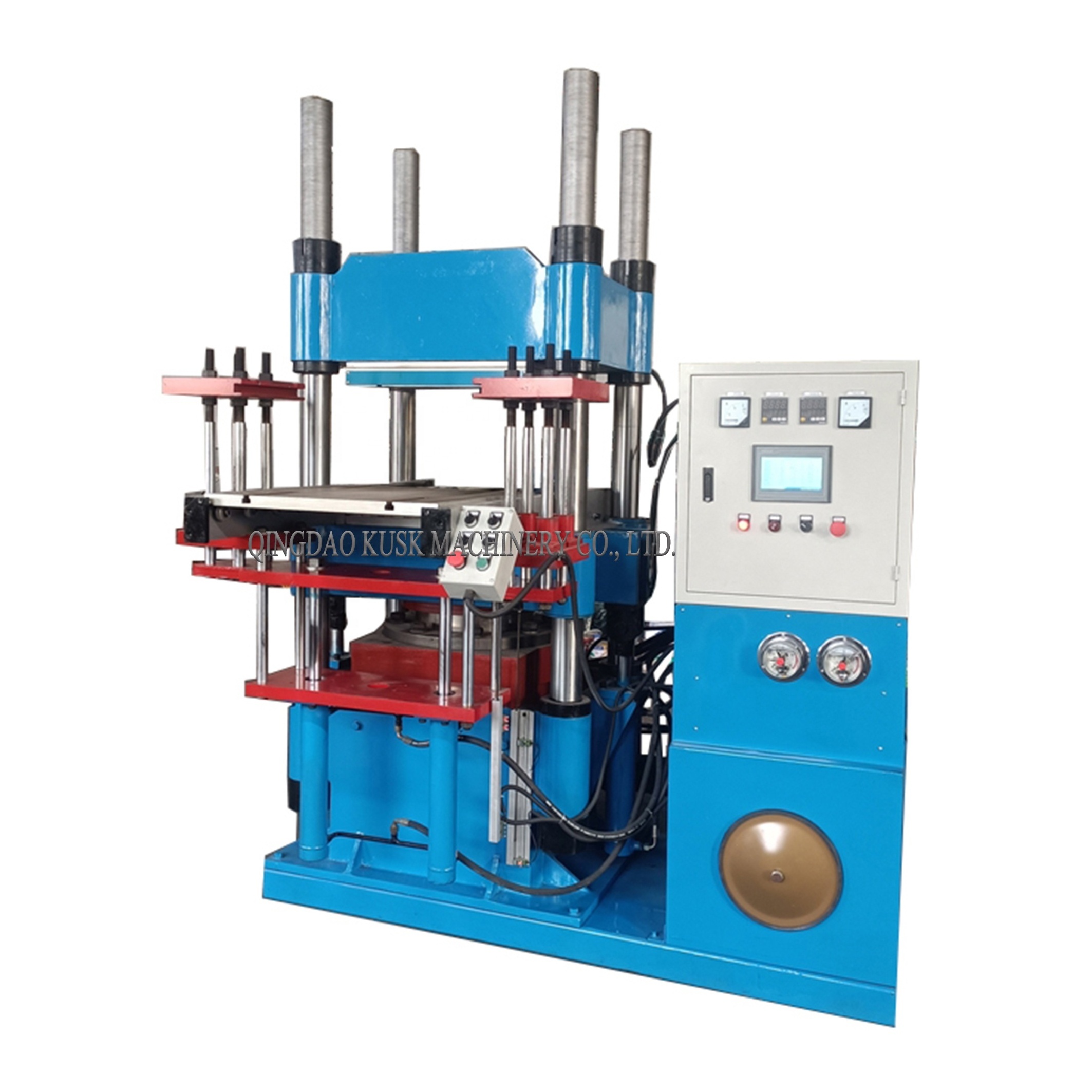

vulcanizing press rubber machine / press rubber machine / flat press machine
1.Main uses:
The Curing Press mainly works for the clampdown of rubber ,which can be used as normal hydraulic machine or it is mainly in use of vulcanizing various kinds of rubber pattern products.
2.Features:
1.This series is mainly used to vulcanize common rubber conveyor belt, nylon or belt ,PVC/PU conveyor belt ,steel wire core conveyor belt fabric core parallel adhesive tape.
2.Four-column structure , hot plate and plunger are high quality material ,has the features with precision machining, difficult to abrasion, anticorrosion, convenient maintenance ,stable working pressure ,and easy to adjust.
3.This type of machine is control by PLC , vulcanization process can achieve many procedures for automatic control ,can automatically detect and adjust hot plate rubber machine.
4.The working layer number can be designed as the request.
Main parameters :
|
Type |
XLB-D0.50MN 400X400X1 |
XLB- D0.80MN 450X450X1 |
XLB-D1.00MN 500X500X1 |
XLB- D1.60MN 600X600X1 |
XLB-D2.00MN 600X650X1 |
XLB-D2.50MN 650X650X1 |
XLB-D3.15MN 650X700X1 |
XLB-D2.50MN 700*700*1 |
|
Total pressure(MN) |
0.50 |
0.80 |
1.00 |
1.60 |
2.00 |
2.50 |
3.15 |
2.50 |
|
Plate size(mm) |
400X400 |
450X450 |
500X500 |
600X600 |
600X650 |
650X650 |
650X700 |
700*700 |
|
Clamping stroke |
300 |
300 |
300 |
350 |
350 |
380 |
400 |
380 |
|
Injection pressure |
120 |
120 |
120 |
140 |
140 |
160 |
180 |
160 |
|
Injection stroke |
320 |
320 |
350 |
350 |
350 |
380 |
400 |
380 |
|
Barrel specifications |
70X215 |
75X225 |
80X255 |
85X300 |
90X320 |
95X350 |
100X380 |
95*350 |
|
Main motor power(KW) |
2.2+2.2 |
2.2+2.2 |
2.2+3.0 |
2.2+3.0 |
2.2+3.0 |
3.0+3.0 |
3.0+5.5 |
3.0+3.0 |
|
Weight(KG) |
1800 |
2200 |
2800 |
4500 |
6000 |
7800 |
11000 |
8200 |
.
...
