Quick Details
-
Application:
-
General purpose
-
Cross Reference:
-
/
-
Product name:
-

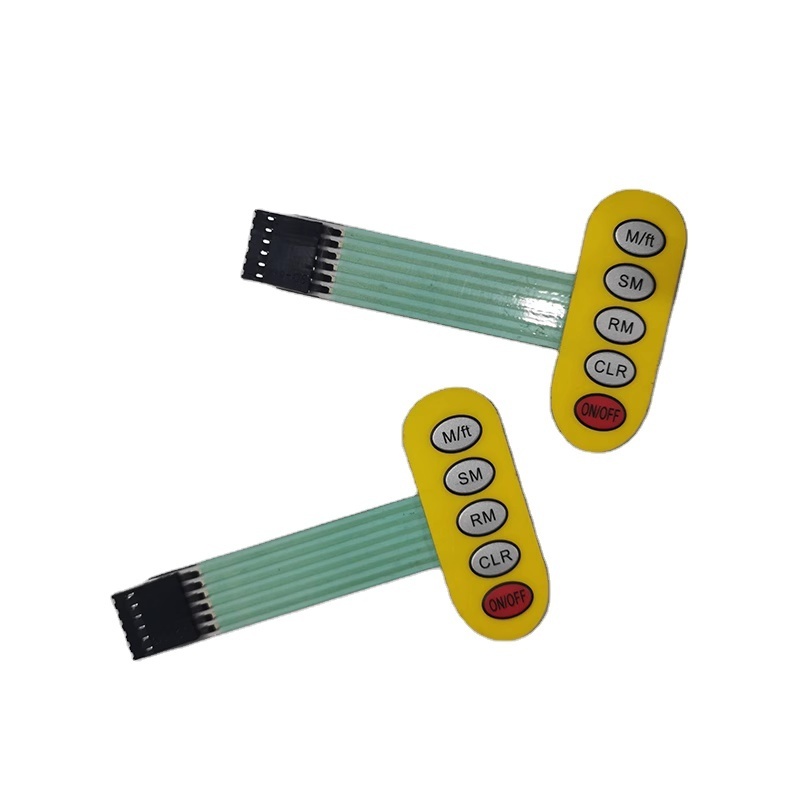

Custom Made Membrane Switch
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
smart
-
Model Number:
-
custom
-
Application:
-
General purpose
-
Cross Reference:
-
/
-
Product name:
-
Custom Made Membrane Switch
Products Description
Membrane keyboard manufacturers
Smart has rich experience on Membrane Keyboard industry over 8 years.
A membrane keyboard is a computer keyboard whose “keys” are not separate, moving parts, as with the majority of other keyboards,but rather are pressure pads that have only outlines and symbols printed on a flat, flexible surface. Very little, if any ,tactile feedback is felt when using such a keyboard and error-free blind typing is difficult.
Membrane keyboards work with electrical contact between the keyboard surface and the underlying circuits when key-top areas are pressed.
For the Modern PC keyboards, they re essentially a membrane keyboard mechanism covered with an array of dome switches which give positive tactile feedback.
A membrane keyboard is a computer keyboard whose “keys” are not separate, moving parts, as with the majority of other keyboards,but rather are pressure pads that have only outlines and symbols printed on a flat, flexible surface. Very little, if any ,tactile feedback is felt when using such a keyboard and error-free blind typing is difficult.
Membrane keyboards work with electrical contact between the keyboard surface and the underlying circuits when key-top areas are pressed.
For the Modern PC keyboards, they re essentially a membrane keyboard mechanism covered with an array of dome switches which give positive tactile feedback.
|
Electrical Performances
|
|
|
|
|||
|
Wire Resistance
|
0.5mm width,<1Ω/cm
|
Rated Current
|
25-100mA,0-30V DC
|
|||
|
Insulation Resistance
|
>100MΩ 250V DC
|
Working Voltage
|
<50V DC
|
|||
|
Non-tactile Switch
|
0.1-0.4mm
|
Tactile Switch
|
0.4-1.0mm
|
|||
|
Working Life
|
>1 million times
|
Working Temperature
|
-40℃-70℃
|
|||
|
Working Humidity
|
40℃,98%RH No Influence
|
Substrate Voltage
|
1500V DC
|
|||
|
Feed backTime
|
10ms
|
Tail Folding
|
R>1,180
|
|||
Product Display
|
Art
|
Ordinary Material
|
|
|
||
|
Graphic Overlay
|
|
Finish
|
Specification
|
||
|
|
PC
|
Gloss
|
0.175/.25/.35/.5 mm thickness
|
||
|
|
PC
|
Matt
|
0.175/.25/.35/.5 mm thickness
|
||
|
|
PET
|
Fine Texture
|
0.15/.20 mm thickness
|
||
|
|
|
Valet Texture
|
0.15/.20 mm thickness
|
||
|
|
|
Gloss with Hard Coat
|
0.18 mm thickness
|
||
|
Top Adhesive
|
PET Double-sided Tape
|
|
0.10/.125mm
|
||
|
|
Paper Double-sided Tape
|
|
0.10mm
|
||
|
|
Transfer Tape
|
|
0.06/.12mm
|
||
|
Retainer
|
PET
|
Gloss
|
0.125mm
|
||
|
Spacer
|
PET Double-sided Tape
|
|
0.225/.275mm
|
||
|
Circuit Layer
|
PET
|
Gloss
|
0.125mm
|
||
|
Rear Adhesive
|
Paper Double-sided Tape
|
|
0.10mm
|
||
|
|
Transfer Tape
|
|
0.06/.12mm
|
||
|
Connector
|
Pin
|
|
Metal,Male/Female 2.54mm
|
||
|
|
House
|
|
Female,2.54mm
|
||
|
Conductive Layer
|
Silver Paste
|
|
Acheson ELECTRODA 820B
|
||
|
|
Carbon Paste
|
|
Acheson ELECTRODA 423SS
|
||
|
|
Insulation Ink
|
|
Acheson ELECTRODA 452SS
|
||
Advantage:
*We have ISO 9001: 2015 authentication.
*Small trial orders can be accepted, free sample is available.
*Our price is reasonable and keep top quality for every clients
