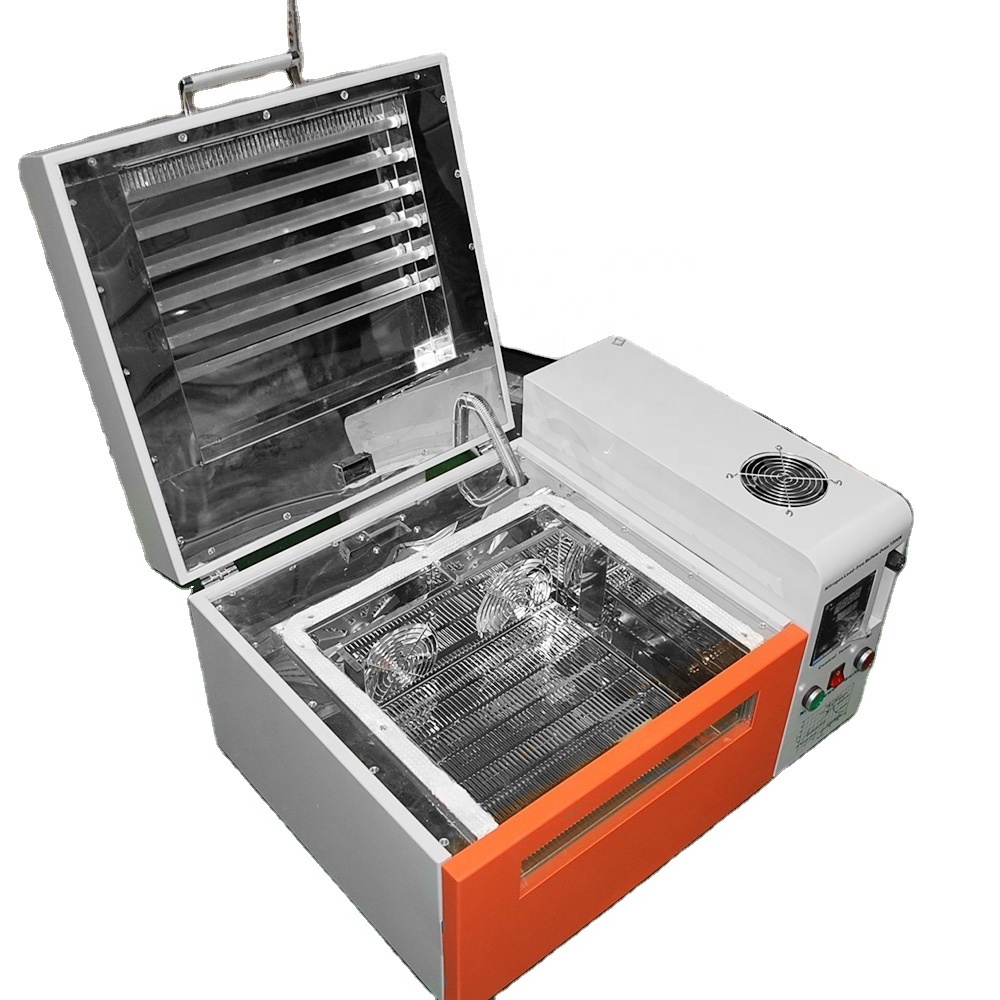

SMD Small Nitrogen Reflow Oven

SMD Small Nitrogen Reflow Oven

Product Description :

According to the practical requirements of the customers, the small batch trial- product in research center, T200N+ is designed and manufactured by Torch technologists that have years of technical experience . This product has many specialties such as high precision, multi-function; practicality; steady capability; long life; energy-saving with high efficiency and viewable operation. It has is been adapted in research centers, war industry, middle and small-sized corporations, small Private Corporations and other electronic production companies. Along with the development of the electrical technology, SMT is used more and more widely. The mini-type ‘product line’ which is made by Torch is benefic for the popularization of the SMT. Torch will contribute itself to the development of electrical industry in China.

Standout Point of T200C desk reflow oven:

1. 1.5mm cold-roll steel sheet, impact molding formed for one time
2. TORCH patent of automatic door control technology on tray
3. 8K mirror 314 stainless steel as a furnace
4. Unique hot air cycling system in the furnace
5. Heating system uses TORCH’s heating technology
6. It uses the 6th generation of multi-channel high precision temperature control system
7. LED displayer temp control interface, digital measuring scale shows the power output
8. America Omega sensor as temperature testing system, which is the only one in China
9. Waste smoke filtration system is used on TORCH reflow oven
10. Appearance, color
11. 2 suits of independent protection device on the electric control system
12. It firstly developed professional temperature control software for desktop reflow oven. The small oven has stepped into the computer-control era. TORCH, as a famous brand of the Desk Reflow Ovens enjoys a good reputation in China and overseas markets. It owns core technology in SMT industries that other suppliers do not have.
13. Intelligent software system of desktop reflow oven
14. The software can satisfy a multi operation system and a multi language environment of Chinese and English
15. Remote control function
16. Realize RS485 communication and USD interface
17. High temperature protection function
18. Configure a cool-down system on the oven
19. 4 layers of industrial package case
20. The is stainless steel switch on operation panel
21. It is the first Desktop Nitrogen reflow oven in the SMT industry, has been really well sold for 6 years

Mean features:

• High precision, multi-function. It satisfies all welding requirements of 0201 resistance and capacitance, and makes fine spacing of QFP, SOP, PLCC, BGA, CSP and so on. It answers to the requirements of small batch and multimode products. It is also suitable for laboratories to pursue their researches.
• Energy-saving with high efficiency; it is a machine with several uses. It can be used to solidify the SMT -Adhesive.
• It has a long life and a smooth capability.
• The operation is visible. It is the best choice for teaching and scientific research.

Remarks:

The ROHS directive has promoted this product. During the lead-free welding process, all of the electronic manufacturers are concerned about ensuring the quality of lead-free welding. It is well-known that the lead-free welding is more difficult than the lead welding in the control of quality. In the lead-free generation of lead-free, Torch has always had a significant implication by trying to improve the products’ quality and to satisfy the requirement of the trial-manufacture and of a lead-free welding and of the small batch’s manufacture.

• Real time testing of temperature curves

Tests on the temperature curve of soldering are executed at any time. During the process of welding, the actual temperature can be simultaneously displayed. It is convenient to adjust and control the lead-free curve. Special controls on the heat preservation zone and on the melting zone

• Viewable operation

The real time display of temperature and the real time observation of the welding process. It is the best choice for science research and teaching.

Parameters
