Quick Details
-
Number of Cells:
-
36 cells
-
Panel Dimensions:
-
615*560*25mm
-
Panel Efficiency:
-
23%
-
Product name:
-

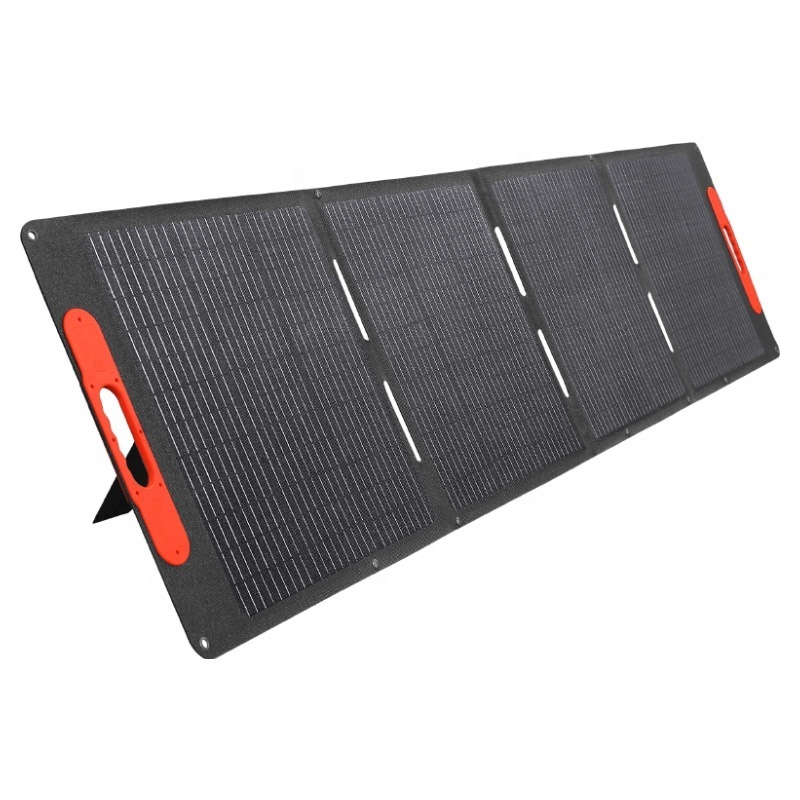

folding solar panel portable solar panel
-
color:
-
black,grey or custom
-
Application:
-
Outdoor,camping,hiking,ETC
-
Warranty:
-
3 years
-
Weight:
-
8.2
-
Cell Type:
-
Mono PERC Half Cell
-
Feature:
-
IP67 waterproof and ultra slim
-
Material:
-
900D nylon waterproof
-
Expanded size:
-
2360*560*5mm
Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
SN-ME-SC200W
-
Place of Origin:
-
China
-
Number of Cells:
-
36 cells
-
Panel Dimensions:
-
615*560*25mm
-
Panel Efficiency:
-
23%
-
Product name:
-
folding solar panel portable solar panel
-
color:
-
black,grey or custom
-
Application:
-
Outdoor,camping,hiking,ETC
-
Warranty:
-
3 years
-
Weight:
-
8.2
-
Cell Type:
-
Mono PERC Half Cell
-
Feature:
-
IP67 waterproof and ultra slim
-
Material:
-
900D nylon waterproof
-
Expanded size:
-
2360*560*5mm
Product Parameter
outdoor power charging solar panel portable
portable power station 100w with solar panels
|
ELECTRICAL CHARACTERISTICS
|
|
|
|
|
|
|
||||||
|
Model
|
SN- ME-SC75W
|
SN- ME-SC100W
|
SN- ME-SC200W
|
SN- ME-SC300W
|
SN- ME-SC400W
|
SN- ME-SC400W
|
||||||
|
Folding Number
|
2pcs
|
2pcs
|
4pcs
|
4pcs
|
4pcs
|
4pcs
|
||||||
|
Cell Efficiency
|
＞22％
|
＞23％
|
＞23％
|
＞23％
|
＞23％
|
＞22％
|
||||||
|
Max Power Voltage
|
20V
|
18V
|
18V
|
20V / 39V
|
41V
|
39V
|
||||||
|
Max Power Current
|
3.75A
|
5.5A
|
11.11A
|
15A / 7.69A
|
9.76A
|
10.26A
|
||||||
|
Open Circuit Voltage
|
24V
|
21.6V
|
21.6V
|
24V / 46.8V
|
49.2V
|
46.8V
|
||||||
|
Short Circuit Current
|
4.13A
|
6.05A
|
12.22A
|
16.5A / 8.46A
|
10.74A
|
11.29A
|
||||||
|
Fabric
|
900D Nylon
|
900D Nylon
|
900D Nylon
|
900D Nylon
|
900D Nylon
|
900D Nylon
|
||||||
|
Number of Cells
|
12
|
18
|
36
|
48
|
72
|
72
|
||||||
|
Cell Dimension
|
166*166mm
|
158.75*158.75mm
|
166*166mm
|
166*166mm
|
166*166mm
|
166*166mm
|
||||||
|
Weight
|
2.2kg
|
4.6kg
|
8.2kg
|
12.5kg
|
6.35kg
|
9.0kg
|
||||||
|
Expand Size
|
915*550*10mm
|
1230*560*10mm
|
2360*560*10mm
|
2370*720*10mm
|
2360*1075*10mm
|
3030*800*10mm
|
||||||
|
Folded Size
|
550*450*25mm
|
560*615*25 mm
|
560*615*25 mm
|
720*630*25mm
|
1075*615*35mm
|
800*795*35mm
|
||||||
|
Max Power Tolerance
|
+（0~5W）
|
|
|
|
|
|
||||||
|
Color
|
Grey/Black/Camouflage
|
|
|
|
|
|
||||||
|
Cable
|
11-3.0Meter in length, length can be customized
|
|
|
|
|
|
||||||
Note
:
All electrical parameters are rated at standard test conditions
(irradiance of 1000W/㎡,AM 1.5G,cell tempertaure 77F/25℃）
