Quick Details
-
Brand Name:
-
Kingwo
-
Model Number:
-
NT53E
-
Product name:
-

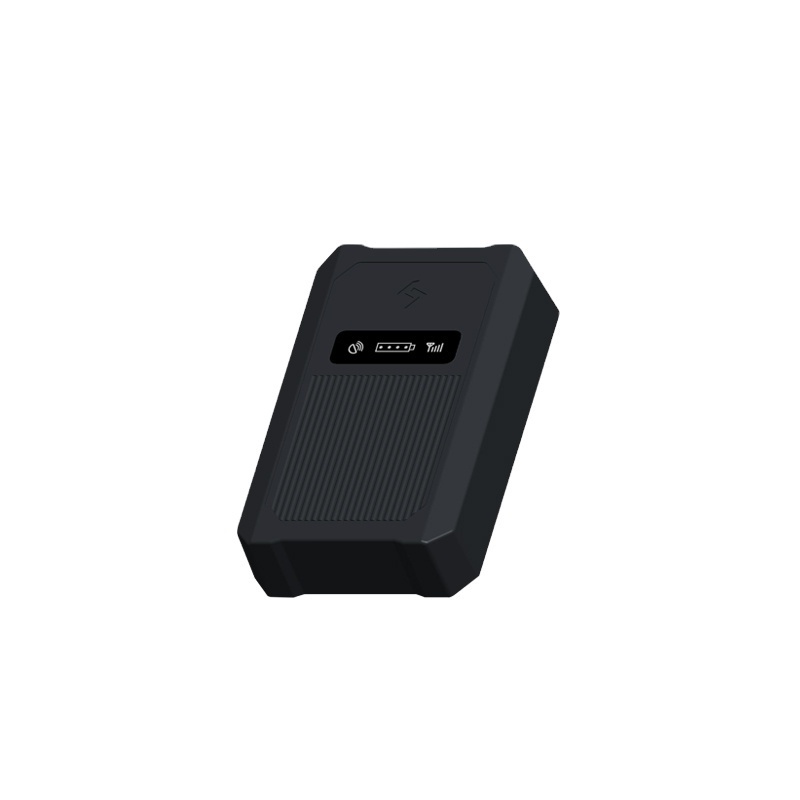

NT53E powered asset tracker
-
Network:
-
GSM+NB IoT+LTE-M/CatM1
-
Location mode:
-
GPS+AGPS+LBS
-
Battery:
-
5200mAh
-
Waterproof:
-
IP68 Standard
-
Size:
-
110mm*68mm*25mm
-
Color:
-
Black
-
OEM/ODM:
-
Customize Accepted
-
Usage:
-
Asset tracking
-
Tracking system:
-
Web Platform Andoid IOS APP
Quick Details
-
Feature:
-
wifi, GPS Navigation, APP Control, IP68 waterproof, Cat-m &NB-IOT
-
Function:
-
Remote Control, Sleep Tracker, Altitude Meter, APP Remote Control, GPS location, Power Saving Mode, Location history, Activity monitoring, Tamper alarm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kingwo
-
Model Number:
-
NT53E
-
Product name:
-
NT53E powered asset tracker
-
Network:
-
GSM+NB IoT+LTE-M/CatM1
-
Location mode:
-
GPS+AGPS+LBS
-
Battery:
-
5200mAh
-
Waterproof:
-
IP68 Standard
-
Size:
-
110mm*68mm*25mm
-
Color:
-
Black
-
OEM/ODM:
-
Customize Accepted
-
Usage:
-
Asset tracking
-
Tracking system:
-
Web Platform Andoid IOS APP
| Parameters: |
|
Physical |
Dimension |
110mm*68mm*25mm( L*W*H ) |
|
Weight |
233 g |
|
|
Cellular |
Cellular module |
Quectel BG95 |
|
Frequency |
Working frequency: Cat M1:
LTEFDD B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26*/B27/B28/B66/B85
•Cat NB 2:
LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26*/B28/B66/B71/B85
• EGPRS: 850/900/1800/1900MHz protocol: Embedded TCP/IP stack Sensitivity: -107dBm@850/900MHz -106dBm@1800/1900MHz Output power: Class 4 (2W)@850/900MHz Class 1 (1W)@1800/1900MHz GPRS data: GPRS Class 10, Mobile Station Class B |
|
|
GPS |
Channels: 50 Sensitivity: -147dBm Position accuracy:5-10m Accuracy: 5m CEP Cold start: <27s Hot start: <1s |
|
|
Processor |
ST |
|
|
Motion sensor |
DA260 |
|
|
Wifi position |
Wifi 5.0 |
|
|
B luetooth |
B luetooth 5.1 |
|
|
Power |
Battery |
Rechargeable Lithium-ion battery and ( 3.7V , 52 00mAh) and ultra-low discharge rate: less than 1%, store one year below 25℃ |
|
Power consumption |
Average working current <100mA; Power save current 7uA; |
|
|
GSM antenna |
Internal High Gain |
|
|
GPS antenna |
Internal High Gain |
|
|
SIM |
Microsim |
|
|
Indicator |
3 status LEDs, Green: GPS, Battery level: Blue: Red: Celluar |
|
|
Environmental Parameter |
Working Temperature |
-30℃ ~ +80℃ |
|
Humidity |
5% ~ 95% (no fog) |
|
|
Ingress Protection Rating |
IP67 |
|
Q1.Can you help for design?
A:Yes,we have our own software and hardware engineer,you can give your idea to us,we can assist the design work.Provide sample for your reference.
