-Our hardware is very strong and is great for both indoor and outdoor use .
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHE
-
Model Number:
-
rivet nut
-
Item Name:
-
rivet nut
-
Material:
-
Stainless Steel,Carbon Steel,brass,custom
-
Surface Treatment:
-
Plain,Black,custom
-
Usage:
-
car,Traffic parts,etc
-
Advantage:
-
OEM Customized Service Provided
-
Grade:
-
4.8/ 6.8/ 8.8/ 10.9/ 12.9
-
size:
-
m5,m6,m8,m10 or custom
-
certification:
-
ISO9001,ISO14001,IATF16949,ROHS
Quick Details
-
Finish:
-
ZINC PLATED, Black Oxide, galvanized, Nickel Plated, Cadmium Plated, Blue Phosphate
-
Measurement system:
-
Metric, Imperial (Inch)
-
Application:
-
Heavy Industry, General Industry, Automotive Industry
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHE
-
Model Number:
-
rivet nut
-
Item Name:
-
rivet nut
-
Material:
-
Stainless Steel,Carbon Steel,brass,custom
-
Surface Treatment:
-
Plain,Black,custom
-
Usage:
-
car,Traffic parts,etc
-
Advantage:
-
OEM Customized Service Provided
-
Grade:
-
4.8/ 6.8/ 8.8/ 10.9/ 12.9
-
size:
-
m5,m6,m8,m10 or custom
-
certification:
-
ISO9001,ISO14001,IATF16949,ROHS
-High-quality materials, even in bad environments, still have high strength and good durability.
-Our hardware is very strong and is great for both indoor and outdoor use .
-Our hardware is very strong and is great for both indoor and outdoor use .
Product Description
|
Product Name
|
Rivet Nuts
|
|
Thread size
|
M4-M12/ 8#-1/2'',M3-M42 or customized
|
|
Height
|
10-100mm or customized
|
|
Out Diameter
|
6-30mm Or customized
|
|
Standard
|
ISO,GB,DIN,BS,ANSI,JIS,Nonstandard.
|
|
Grade
|
4.8/ 6.8/ 8.8/ 10.9/ 12.9
|
|
Available Material
|
All carbon steel,Stainless steel 201/301/304, alloy steel,copper,etc.
|
|
Surface Treatment
|
Nickel,trivalent zinc,silver plating,etc.
|
|
|
Fastening piece categories: Including all kinds of precision screws, screws, triangle screws, sectional screws, nut category and
lathe part category (non-standard items) |
|
|
Nuts series:Anti theft nut,hex nut ,barrel nut,wheel nut,cage nut,cap nut,car nut,claw nut,eye nut,flange nut,insert nut,lock nut,rivet nut,knurled nut...
|
|
Advantage
|
OEM / ODM / customized service provided
|
|
Quality control
|
ISO standard,100% Whole range inspection through the production
|
|
Certificate
|
ISO9001,IATF16949,ISO14001,ROHS
|
|
After-sales Service
|
We will follow up every customer and solve all your problems satisfied after sales
|
|
Material
|
Carbon steel,Stainless steel,brass,Aluminum，Allloy sreel,,Etc
|
|
Head/drive
|
Headed/headless/slotted/hex socket ;Flat round head , CSK head, csk reduced head;
|
|
Surface
|
plain, zinc plated (yellow, blue）
|
Rivet nut

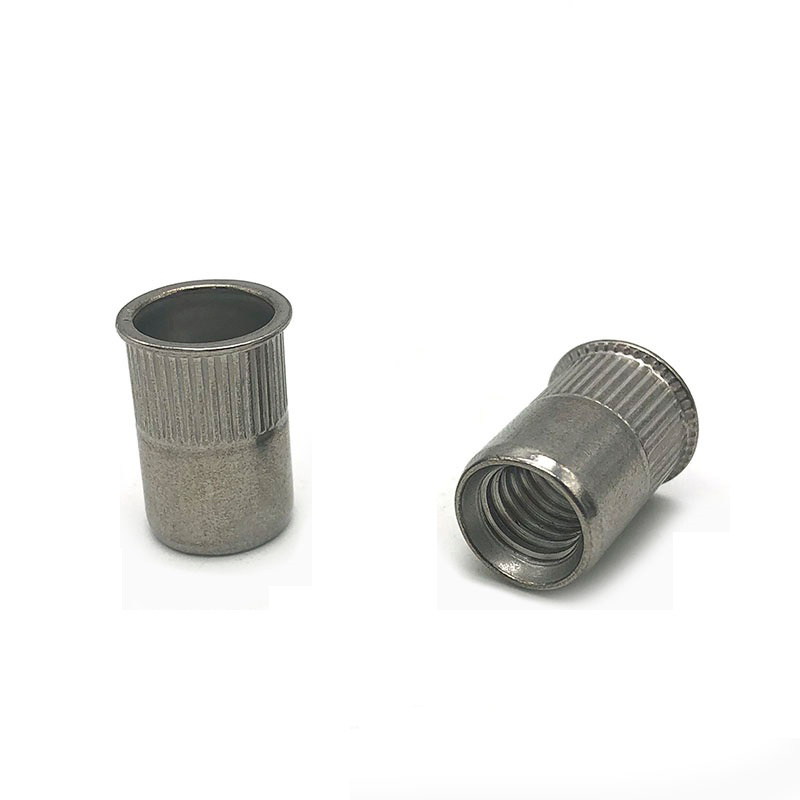

A rivet nut, also known as a blind rivet nut, or rivnut,is a one-piece internally threaded and counterbored tubular rivet that can be anchored entirely from one side. It is a kind of threaded insert. There are two types: one is designed to form a bulge on the back side of the panel as a screw is tightened in its threads. The other is similarly drawn in using a screw, but is drawn into the sleeve instead of creating a bulge.
|
Insert Nut For Wood Type D - Screw In Insert Type D
|
|
|
|
|
|
|
||||||
|
Thread Diameter
|
Length (mm)
|
Flange DiaD1 (mm)
|
D2 (mm)
|
Socket A/Fmm)
|
Pilot Hole(mm)
|
Pitch (mm)
|
||||||
|
M4
|
10
|
8.5
|
5.5
|
4
|
5.6 to 6.0
|
0.7
|
||||||
|
M4
|
20
|
8.5
|
5.5
|
4
|
5.6 to 6.0
|
0.7
|
||||||
|
M5
|
10
|
10.5
|
7
|
5
|
7.5 to 7.9
|
0.8
|
||||||
|
M5
|
13
|
10.5
|
7
|
5
|
7.5 to 7.9
|
0.8
|
||||||
|
M5
|
20
|
12.5
|
7
|
5
|
7.9 to 8.7
|
0.8
|
||||||
|
M6
|
8
|
14.5
|
8
|
6
|
11.1 to 11.5
|
1
|
||||||
|
M6
|
10
|
12.5
|
8
|
6
|
8.7 to 9.1
|
1
|
||||||
|
M6
|
13
|
12.5
|
8
|
6
|
8.7 to 9.1
|
1
|
||||||
|
M6
|
16
|
12.5
|
8
|
6
|
8.7 to 9.1
|
1
|
||||||
|
M6
|
20
|
12.5
|
8
|
6
|
8.7 to 9.1
|
1
|
||||||
|
M6
|
25
|
12.5
|
8
|
6
|
8.7 to 9.1
|
1
|
||||||
|
M8
|
13
|
14.5
|
9.5
|
8
|
9.5 to 9.9
|
1.25
|
||||||
|
M8
|
20
|
14.5
|
9.5
|
8
|
9.5 to 9.9
|
1.25
|
||||||
|
M8
|
25
|
14.5
|
9.5
|
8
|
9.5 to 9.9
|
1.25
|
||||||
|
M10
|
13
|
16
|
11.5
|
10
|
12.7 to13.1
|
1.5
|
||||||
|
M10
|
19
|
16
|
11.5
|
10
|
12.7 to13.1
|
1.5
|
||||||
|
M10
|
20
|
16
|
11.5
|
10
|
12.7 to13.1
|
1.5
|
||||||
|
M10
|
25
|
16
|
11.5
|
10
|
12.7 to13.1
|
1.5
|
||||||
【Premium Quality】
Rivet nut is made of high quality carbon steel, anti-corrosion and anti-rust, long-term use; black zinc-plated surface helps to prevent surface damage and discoloration, good antioxidant effect, load-bearing threads, healthy and lead-free, non-toxic and tasteless, sturdy and durable, non-deformation.
【Easy to Use】
These knurled valve body threaded nuts can be easily installed from one side of the work piece and create a strong connection to the material. Simplely installed in weak or thin gauge materials such as plastic, metal, fiberglass, etc. . Ideal for assembling boxes or closed sections such as castings, panels
Using Effects
Where are rivet nuts used?
In the field of aviation, rivet nuts are often used to attach various items, such as static dischar gers and inspection access covers, to the surface of an aircraft.Rivet nuts are an ideal replacement for weld nuts because they will not distort base materials, eliminate weld splatter, toxic fumes, and other by-products of the welding process, and can be installed in many different kinds of material including steel, plastic, composites, and fiberglass.
Best Selling
Company Introduction
Certificate
Exhibition&Partner
Customer reviews
Packing & Delivery
Q1: What is your main products and material supply?
1.1. Our main products are Screws,Bolt,Nuts,rivet,Special Non-standard studs,Turning parts and High-end precision complex CNC Machining parts etc.
1.2. Carbon Steel, Alloy Steel, Aluminum alloy,Stainless Steel, Brass, Copper ,Titanium alloy or according to your requirement.
Q2. When can I get the price?
We usually offer you a quotation within 12 hours, and the special offer is not more than 24 hours. Any urgent cases, please contact us directly by phone or send email to us.
Q3:If you can not find on our website the product you need how to do?
You can send the pictures/photos and drawings of the products you need by email , we will check if we have them. We develop new models every month, Or you can send us samples by DHL/TNT, then we can develop the new model especially for you.
Q4:Can You Strictly Follow The Tolerance on The Drawing And Meet The High Precision?
Yes, we can, we can provide high precision parts and make the parts as your drawing.
Q5: How should I order and make payment?
By T/T, for samples 100% with the order；for production, 30% paid for deposit by T/T before production arrangement, the balance to be paid before shipment.
Q6: What’s your Delivery Time?
Standard parts: 7-15days
Non-standard parts: 15-25days
We will make the delivery as soon as possible with the guarantee quality.
Q7:How to Custom-made (OEM/ODM)
If you have a new product drawing or a sample, please send to us, and we can custom-made the hardware as your required. We will also provide our professional advices of the products to make the design to be more realized & maximize the performance.
Q8. What is your terms of packing?
A: Generally, we pack our goods in neutral Transparent bag/ Color box/ plastic box+ carton. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q9:Which mode of transport would be better?
In general, the production are heavy, we advice to make delivery by sea, Also we respect your views of other transportation as well.
