Quick Details
-
Brand Name:
-
Teren
-
Model Number:
-
TDS-200M
-
Accuracy:
-
Better than 1.0%
-
Display:
-
4 line LCD
-
Output:
-
OCT/RS-485/4-20mA
-
Pipe Material:
-
All metals, most plastics, fiber glass etc
-
Flow rate:
-
0-+-32m/s
-
Temperature:
-
0-160 ℃
-
Pipe Size:
-
15mm - 6,000mm
-
Certificate:
-
CE&ISO9001
-
Power supply:
-
AC: 110V/220V, or DC :8VDC-36VDC
-
Transducer:
-
Clamp on type or insert type
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
-
Warranty:
-
1 year
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Teren
-
Model Number:
-
TDS-200M
-
Accuracy:
-
Better than 1.0%
-
Display:
-
4 line LCD
-
Output:
-
OCT/RS-485/4-20mA
-
Pipe Material:
-
All metals, most plastics, fiber glass etc
-
Flow rate:
-
0-+-32m/s
-
Temperature:
-
0-160 ℃
-
Pipe Size:
-
15mm - 6,000mm
-
Certificate:
-
CE&ISO9001
-
Power supply:
-
AC: 110V/220V, or DC :8VDC-36VDC
-
Transducer:
-
Clamp on type or insert type

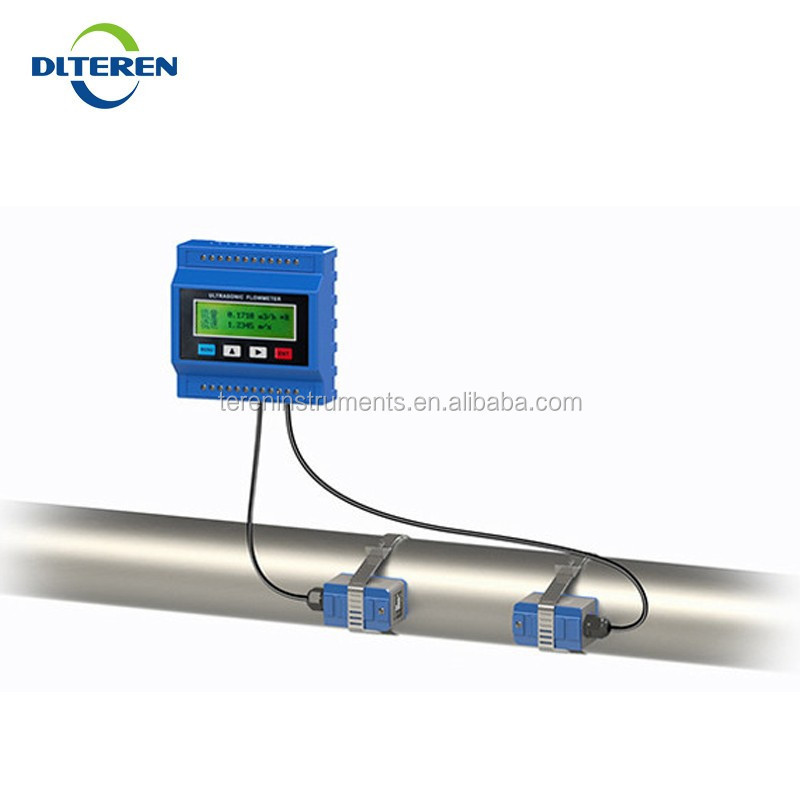

General Introduction:
TDS-100M lo
w cost ultrasonic flowmeter can work alone without a LCD and Keypad module, the module can be used alone as a flow meter. Users can even integrate a number of the modules into a multi-channel flow meter that can measures up to several dozen of different pipes or a flow meter that has higher accuracy by measures the same pipe with all the channels.
Technical Parameter:
|
Repeatability
|
0.20%
|
|
|
||
|
Linearity
|
Better than 0.5%
|
|
|
||
|
Accuracy
|
±1%
|
|
|
||
|
Pipe Size
|
15mm - 6,000mm
|
|
|
||
|
Rate Units
|
English(U.S) or metric
|
|
|
||
|
Liquid Types
|
Virtually all liquids
|
|
|
||
|
Display
|
2*10backlit LCD,displaying instant
|
|
|
||
|
Transducers
|
Clamp-on type,insertion type ,in line type.
|
|
|
||
|
Operating Power
|
Isolation 8-36VDC
|
|
|
||
|
Communication Interface
|
RS-485
|
|
|
||
|
Current
|
50mA
|
|
|
||
|
Recording
|
Automatic memory the positive,negative,net totaliser or flow rate and heat
quantity of the last 512 days,128 months,10years |
|
|
||
|
Transmission Distance
|
Up to 1000m
|
|
|
||
Transducer Installation:
Teren instruments Established in 2007, located in the beautiful coastal city - Dalian,China.We main focus on running of instruments, main cover
ultrasonic flowmeter, ultrasonic level meter, ultrasonic water meter, electromagnetic flowmeter, radar Level meter
etc.
* Competitive Price
* Free OEM service,makes the products to be yours only.
* Design and printing, we offer you product's designing and handbook's revising.
* Online service and inquiry, we promise to reply any of your information within 12 hours.
* R&D, customers provide their own idea or option, we could change the appearance, logo, color, program, output.etc
* Technical support, we offer free support whatever you know them well or not, we will solve your measuring problem all products' life.
* Better After Sale,we promise to repair and maintain the products for free in 2 years if there is any natural damage.
a) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
b) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
c) What's the MOQ ?
1 set machine, mixed order is also welcomed.
d) How can I buy this machine from you? ( Very easy and flexible !)
- Consult us about this product on line or by e-mail.
- Negotiate and confirm the final price , shipping , payment methods and other terms.
- Send you the proforma invoice and confirm your order.
- Make the payment according to the method put on proforma invoice.
- We prepare for your order in terms of the proforma invoice after confirming your full payment.
-And 100% quality check before shipping.
