- Product Details
- {{item.text}}
Quick Details
-
Dimensions (L x W x H) (mm):
-
11500*2500*3280mm
-
Place of Origin:
-
Hubei, China
-
Product name:
-
Crane Towing Truck
-
Type:
-
8x4
-
Chassis brand:
-
Shacman
-
Loading capacity:
-
50 Tons
-
Wheel Base:
-
1800+4625+1350
-
Color:
-
Requirements
-
Winch capacity:
-
50 Tons
-
Tires:
-
12.00R20, 12 pieces with one spare
-
Driving type:
-
LHD or RHD
-
Engine:
-
Weichai
Quick Details
-
Emission Standard:
-
EURO 5
-
Condition:
-
New
-
Brand Name:
-
Shacman, Sinotruk, Foton, Jac,Dongfeng
-
Dimensions (L x W x H) (mm):
-
11500*2500*3280mm
-
Place of Origin:
-
Hubei, China
-
Product name:
-
Crane Towing Truck
-
Type:
-
8x4
-
Chassis brand:
-
Shacman
-
Loading capacity:
-
50 Tons
-
Wheel Base:
-
1800+4625+1350
-
Color:
-
Requirements
-
Winch capacity:
-
50 Tons
-
Tires:
-
12.00R20, 12 pieces with one spare
-
Driving type:
-
LHD or RHD
-
Engine:
-
Weichai
Product Description

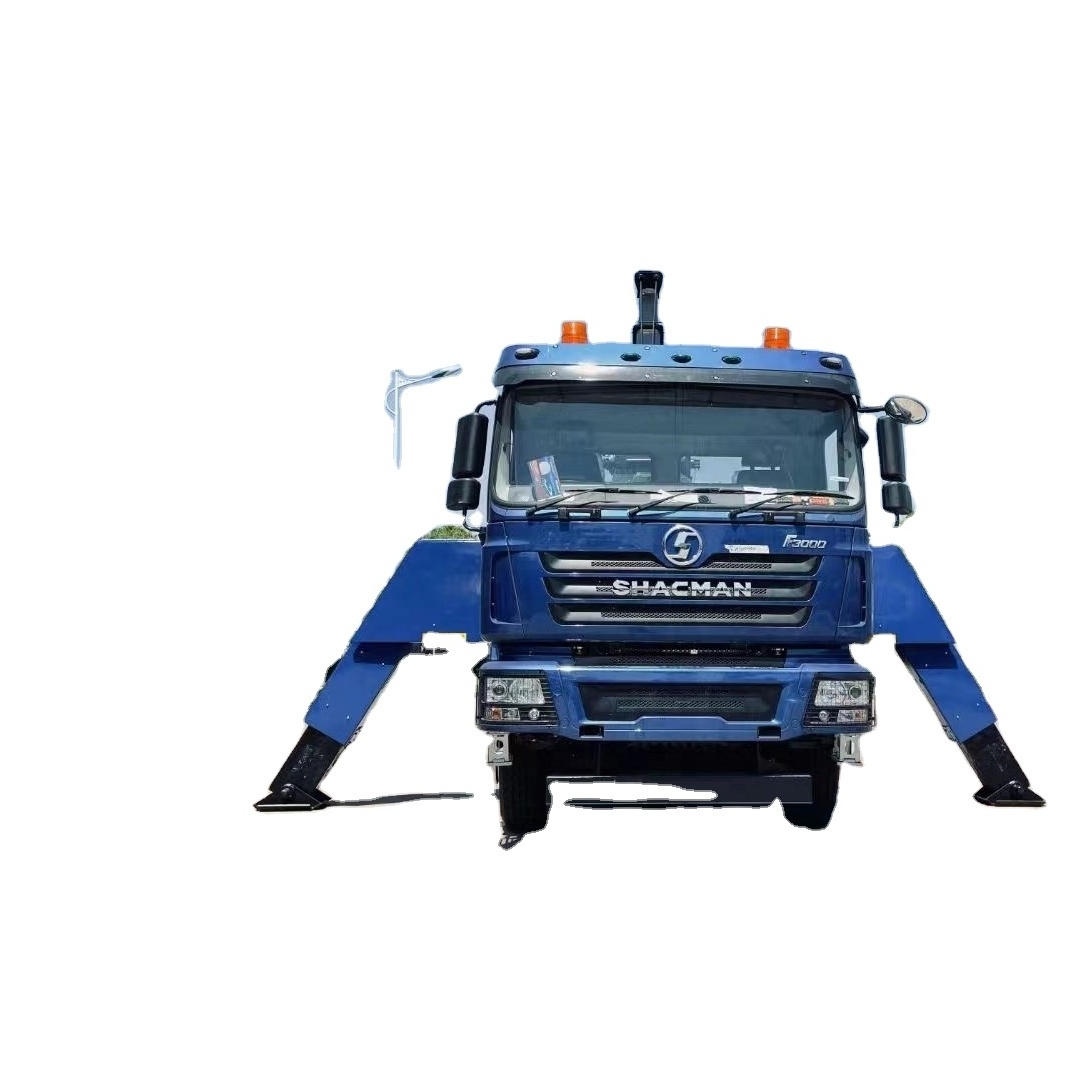

SHACMAN 50 Ton Heavy Rotator Recovery Wrecker 8x4 Towing Truck Crane Towing Truck
Tow truck, whole name is road wrecker, also called as the wrecker truck, tow wrecker truck, tow truck wrecker, wrecker towing truck, etc.
Wrecker tow truck is a vehicle used to transport disabled or illegally parked motor vehicles to another location (generally a
repair garage or impound lot), or to recover vehicles which are no longer on a drivable surface. Less commonly, flatbed tow trucks or tow dollies may transport a car that is in drive able condition; this is distinct from motor carriers that regularly transport multiple cars simultaneously.
Our tow truck consists of the chassis, hoisting equipment, truck tow hook, tow truck winch, tow truck wheel lift, hydraulic
system, electric control system, truck body and the tool boxes.
The tow truck can hoist, lift, draw and be with other special functions, mainly used in highway and city road obstacle cleaning.
As a professional tow truck manufacturer, the wrecker tow truck we produce is from 3 ton to 60 ton. The road wrecker truck we manufacture are flatbed tow truck, under lift wrecker truck, rotating tow truck, tow truck mounted crane, etc.
Tow truck, whole name is road wrecker, also called as the wrecker truck, tow wrecker truck, tow truck wrecker, wrecker towing truck, etc.
Wrecker tow truck is a vehicle used to transport disabled or illegally parked motor vehicles to another location (generally a
repair garage or impound lot), or to recover vehicles which are no longer on a drivable surface. Less commonly, flatbed tow trucks or tow dollies may transport a car that is in drive able condition; this is distinct from motor carriers that regularly transport multiple cars simultaneously.
Our tow truck consists of the chassis, hoisting equipment, truck tow hook, tow truck winch, tow truck wheel lift, hydraulic
system, electric control system, truck body and the tool boxes.
The tow truck can hoist, lift, draw and be with other special functions, mainly used in highway and city road obstacle cleaning.
As a professional tow truck manufacturer, the wrecker tow truck we produce is from 3 ton to 60 ton. The road wrecker truck we manufacture are flatbed tow truck, under lift wrecker truck, rotating tow truck, tow truck mounted crane, etc.
Details Images
Specification
|
Parameter
|
|
|
|
Cabin
|
Single row with a sleeper, Driving type 8x4.
|
|
|
|
with air conditioner.
|
|
|
Overall dimensions (L x W x H)mm
|
11500*2500*3280
|
|
|
Wheel base (mm)
|
1800+4625+1350
|
|
|
Wheel track (front/rear) (mm)
|
1504/1425
|
|
|
Approach/Departure angle(°)
|
8/24
|
|
|
Tare Weight
|
13070kgs
|
|
|
Recommended Payload
|
50000kgs
|
|
|
Front axles loading capacity
|
2x6500kgs
|
|
|
Rear axles loading capacity
|
2x18000kgs
|
|
|
Max. driving speed(km/h)
|
89
|
|
|
Engine brand
|
Weichai
|
|
|
Engine Model
|
WP12.375E50
|
|
|
Horse Power(HP)
|
375 hp
|
|
|
Gearbox
|
FAST
|
|
|
Max Lifting Moment
|
160 T.M
|
|
Max Working Radius
|
15.5 m
|
|
Standard Reach
|
8.2 (rear)+5.1（front） m
|
|
Pump Capacity
|
100 cc/r
|
|
Rated Pressure Of Hydraulic System
|
28 MPa
|
|
Oil Tank Capacity
|
>300L
|
|
Rotation Angle
|
360°
|
|
Installation Space
|
2600 mm
|
|
Winch
|
Rated traction per unit (T)
|
5
|
|
|
Diameter of wire rope (mm)
|
φ11
|
|
|
Length of wire rope (m)
|
25
|
|
|
Capstan Diameter (mm)
|
φ110
|
|
|
Minimum linear speed of wire rope (m/min)
|
5
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
