Quick Details
-
Product Name:
-

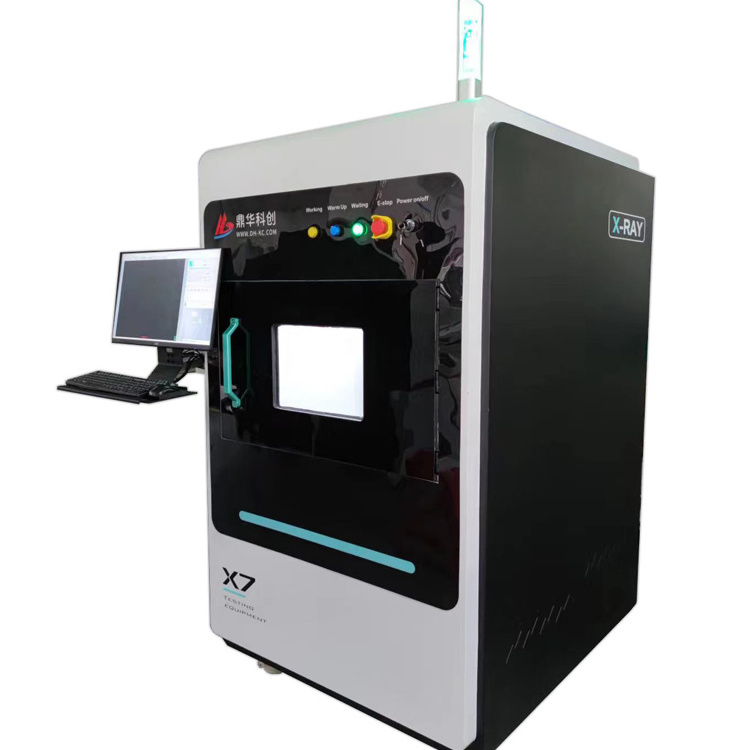

X-ray Flaw Detector
-
Power supply:
-
220v 50/60HZ
-
Model:
-
DH-X7
-
Certificate:
-
CE RoHS
-
Display:
-
LCD Display
-
Measuring range:
-
320X410mm
-
Weight:
-
1400 KG
-
Accuracy:
-
99%
-
Dimension:
-
1300mmX1400mmX2200mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dinghua
-
Weight (KG):
-
150
-
Product Name:
-
X-ray Flaw Detector
-
Power supply:
-
220v 50/60HZ
-
Model:
-
DH-X7
-
Certificate:
-
CE RoHS
-
Display:
-
LCD Display
-
Measuring range:
-
320X410mm
-
Weight:
-
1400 KG
-
Accuracy:
-
99%
-
Dimension:
-
1300mmX1400mmX2200mm
|
1. The loading platform can move in the X Y direction
|
Greater effective detection range, improving product magnification and detection efficiency (optional 360 º rotary loading stage)
|
|
2. Image detector
|
Easily observe product side defects, such as BGA solder joints, through-hole tin penetration, etc
|
|
3. X-ray source
|
Adopting Japanese Hamamatsu enclosed light tube, with long service life and maintenance free
|
|
4. X-ray reception
|
High definition digital flat panel detector
|
|
5. Visual automatic navigation window
|
Easy to operate and quickly locate the detection target location
|
|
6. Loading platform
|
Large detection space, size 450 * 500mm (large industrial control motherboard, LED light strip, etc.)
|
|
7. Editable detection program
|
Suitable for large-scale automatic detection, improving efficiency, and automatically detecting NG products
|
|
8. Rework Digital Library Management
|
Savable and editable detection program, detection effect image
|
|
9. MWS/ERP system
|
Customized access for easy management
|
|
size 1100 ×1200 ×2100mm
|
|
|
Input voltage AC220V 10A
|
|||
|
weight about1400KG
|
|
|
Gross weight about 1600KG
|
|||
|
Case size 1300 ×1400 ×2200mm
|
|
|
Power 1.7KW
|
|||
|
Open mode by hand
|
|
|
Inspection mode Offline
|
|||
|
Loading method by hand
|
|
|
Rights Management Password
|
|||
|
X-ray tube
|
|
|
|
|||
|
Tube type Closed
|
|
|
Tube current 200ɥA
|
|||
|
Tube voltage 90KV
|
|
|
Focus 3-5um
|
|||
|
Cooling mode air cooling
|
|
|
Geometric magnification 300X
|
|||
|
Imaging system
|
|
|
|
|||
|
Detector New TFT
|
|
|
radiation tolerance 10000Gy
|
|||
|
Effective imaging area
130 ×130mm |
|
|
Protection level lP65
|
|||
|
pixel matrix 1536 ×1536
|
|
|
Size 176 ×176 ×47
|
|||
|
pixel size 85µm
|
|
|
Weight 3.5KG
|
|||
|
spatial resolution 5.8lp/mm
|
|
|
Power 9W
|
|||
|
Frame rate 20fps
|
|
|
Operation Temperature 10-40℃
|
|||
|
AD conversion bits 16bit
|
|
|
Storage temperature -10-55℃
|
|||
|
data interface Gigabit Ethernet
|
|
|
Operation humidity
20-90%HP（Frost free） |
|||
|
Trigger mode Continuous acquisition, pulse synchronization
|
|
|
Storage humidity
10-90%HP（Frost free） |
|||
|
X-ray energy range 40KV-90KV
|
|
|
Image Settings
Brightness, Contrast, Auto Gain, and Exposure |
|||
|
IPC
|
|
|
|
|||
|
Monitor 21.5-inch high-definition display
|
|
|
operating system Windows10 64位
|
|||
|
Operatiob mode keyboard/Mouse
|
|
|
Hard disk/memory 1TB/8G
|
|||
|
Safty
|
|
|
|
|||
|
Radiation
amount |
The steel lead steel protective structure is adopted, and the front door window is made of lead glass for ray protection. At any
position 20mm away from the box, the equivalent rate of the tested radiation dose is ≤ 1 μ SV/H meets international standards |
|
|
|||
|
lead glass window
|
Transparent Lead glass, isolating radiation to observe the measured object
|
|
|
|||
|
Safty interlock
|
Two high sensitivity limit switches are set at the door opening positions for equipment maintenance and upkeep. Once the door is
opened, the X-ray tube will automatically power off immediately |
|
|
|||
|
Electromagnetic safety door switch
|
The observation window is equipped with an electromagnetic switch, and cannot be opened when the X-ray tube is in working state
|
|
|
|||
|
Emergency
|
Located next to the operation position, press to immediately power off
|
|
|
|||
|
Visible window
|
With a visible and transparent window, it is easy to observe the sample situation directly from the window during equipment
operation |
|
|
|||
|
X-ray tube protection
|
Only after turning off the X-ray can you leave the software for other operations
|
|
|
|||
