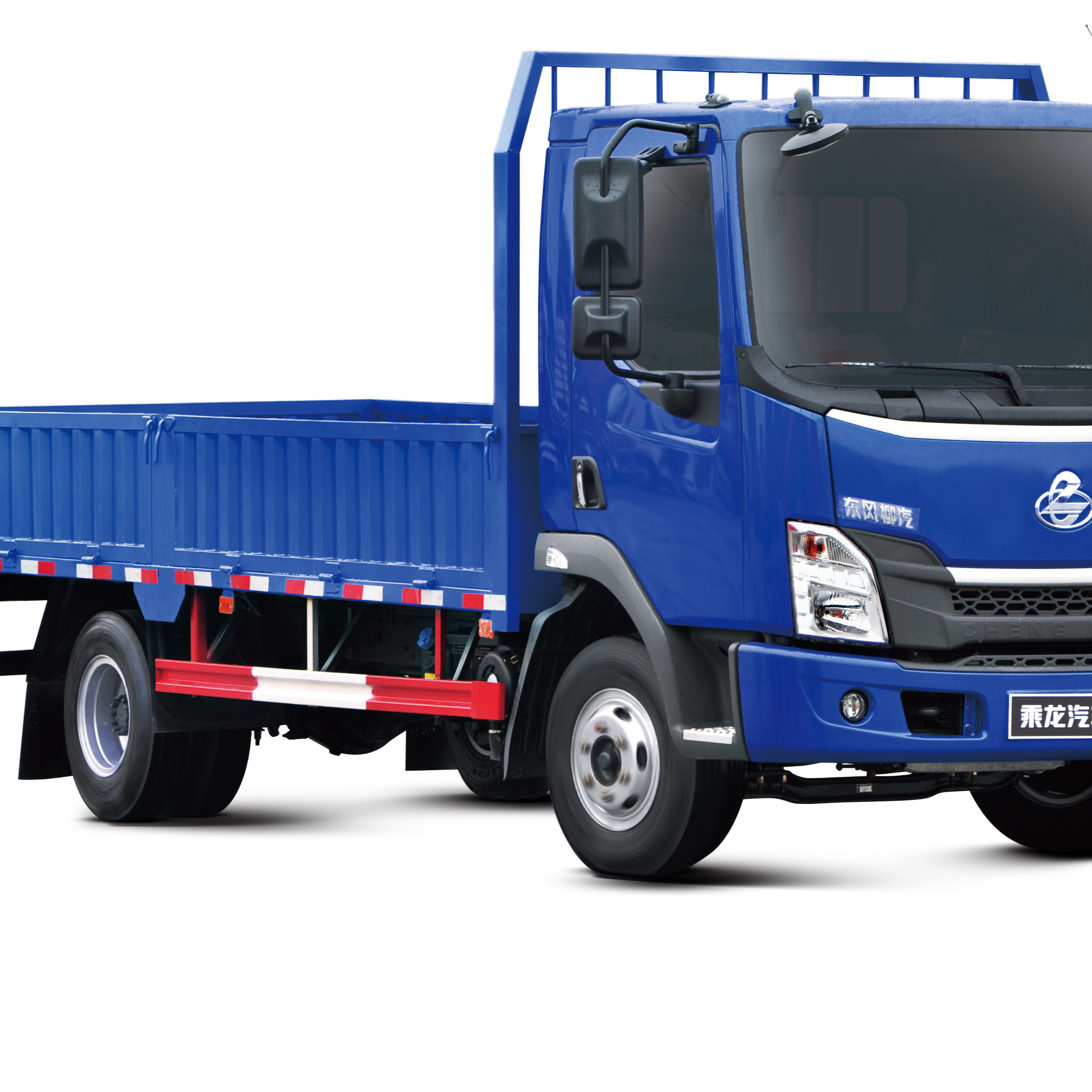

dongfeng chenglong medium truck 15ton 20ton cargo truck 4*2 flat bed truck
dongfeng chenglong medium truck 15ton 20ton cargo truck 4*2 flat bed truck
dongfeng chenglong medium truck 15ton 20ton cargo truck 4*2 flat bed truck
dongfeng chenglong medium truck 15ton 20ton cargo truck 4*2 flat bed truck
dongfeng chenglong medium truck 15ton 20ton cargo truck 4*2 flat bed truck
dongfeng chenglong medium truck 15ton 20ton cargo truck 4*2 flat bed truck
dongfeng chenglong medium truck 15ton 20ton cargo truck 4*2 flat bed truck
dongfeng chenglong medium truck 15ton 20ton cargo truck 4*2 flat bed truck

dongfeng chenglong medium truck 15ton 20ton cargo truck 4*2 flat bed truck

FOB Reference Price: Get Latest Price
≥1 Pieces
US $30000
≥10 Pieces
US $25000
≥25 Pieces
US $20000
≥50 Pieces
US $15000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Drive Wheel:
4X2
Brand Name:
dongfeng
Place of Origin:
Guangxi, China
Size:
6810mm*2265mm*2696mm
Wheel base:
6300
Curb weight:
5440kg
Engine Type:
YC6JA180-50
Emission level:
Euro 5
Displacement:
6.87L
Maximum power:
132Kw/2300rpm
Rear Axle:
9t
Chassis Dimensions(L*W*H):
10465mm*2320mm*2945mm
Gear box:
8JS75TC
Brand:
dongfeng

Quick Details

Condition:
New
Emission Standard:
Euro 3
Horsepower:
150 - 250hp
Drive Wheel:
4X2
Brand Name:
dongfeng
Place of Origin:
Guangxi, China
Size:
6810mm*2265mm*2696mm
Wheel base:
6300
Curb weight:
5440kg
Engine Type:
YC6JA180-50
Emission level:
Euro 5
Displacement:
6.87L
Maximum power:
132Kw/2300rpm
Rear Axle:
9t
Chassis Dimensions(L*W*H):
10465mm*2320mm*2945mm
Gear box:
8JS75TC
Brand:
dongfeng

Product Description
Model LZ5182XLCM3AB
Model code 1M3YJ18A63D9BF2
Max Payload 12000kg
Chassis Dimensions
Chassis Dimensions(L*W*H) 10465mm*2320mm*2945mm
Wheel base 6300
Front/Rear wheel track 1916mm/1800mm
Front/Rear overhang 1345mm/2820mm
vehicle weights
G.V.W 18000kg
Curb weight 5440kg
Frame profile Dimensions
Frame width 860mm
Section height 264mm
Section thickness 6+4mm
Engine
Type YC6JA180-50
Emission level Euro 5
Maximum power 132Kw/2300rpm
Maximum torque 700N.m/1200-1800rpm
Number of cylinders 6
Displacement 6.87L
Cylinder bore×Stroke 108mm×125mm
Clutch
Plate's diameter φ395mm
Operating system Hydraulic control with air booster,pushing
Gear box
Type 8JS75TC
Number of gears 8 forward gears& 2 reverse
Gear ratios 7.34;5.24;3.76;2.82;1.95;1.39;1.00;0.79; r1=7.34;r2=1.95
Axle
Front Axle Rigid stubaxle with double T-cross section,dram brake
3.6t
Rear Axle Press welding shell, Single-stage reduction shaft, speed ratio:4.875.
9t
Suspension
Front suspension 11-Leaf spring with shock absorber
Rear suspension 12+9-leaf spring
Battery
Voltage 24V
Battery capacity 120Ah(2)
Fuel Tank
Type Aluminum fuel tank
Capacity 250L
Others
Cab M31B flat-top single-bedroom cab, mechanical full-floating cab suspension, electro-hydraulic flip, electric glass lifter, airbag shock driver seat, metallic paint, WABCO valve (air handling unit, parking manual control valve), electronic Silicone oil fan, LCD liquid crystal instrument, MP3 + radio, air conditioning, cruise control system, external sunshade, same-color bumper, center lock, multi-state switch, leather multi-function steering wheel, air deflector, under door trim.
Brake System Full air brake system,split pneumatic circuit;parking spring brake acting on rear axles, exhaust brake.
Tyres 10.00R20-18PR
Minimum turning circle 12000mm
Minimum ground clearance 270mm
Maximum driving speed 115km/h
Maximum gradeability ≥25%
Fuel consumption 20L/100Km(20t)
