Quick Details
-
Voltage:
-
380V/415V/450V
-
No Load Speed:
-
0.38m/s
-
Place of Origin:
-
China
-
Brand Name:
-
VICO
-
Model Number:
-
VPB-SD78
-
Warranty:
-
18 months
-
Product name:
-
Car Spray painting oven
-
Baking method:
-
Diesel burner
-
Ventilation type:
-
Downdraft with basement
-
Size custom design:
-
available to extend to 8M or 9M
-
Usage:
-
passenger cars, truck, pickups
-
packing:
-
20GP container
-
Filtration system:
-
Ceiling for new air and exhaust with glass filter
-
Certification:
-
CE
-
Marketing:
-
European/Asia/Africa/America/Australia
-
Custom design:
-
available for size, color, heating method
Quick Details
-
Power:
-
16KW
-
External Size:
-
7000*5350*3400mm
-
Internal Size:
-
6900*3900*2650mm
-
Voltage:
-
380V/415V/450V
-
No Load Speed:
-
0.38m/s
-
Place of Origin:
-
China
-
Brand Name:
-
VICO
-
Model Number:
-
VPB-SD78
-
Warranty:
-
18 months
-
Product name:
-
Car Spray painting oven
-
Baking method:
-
Diesel burner
-
Ventilation type:
-
Downdraft with basement
-
Size custom design:
-
available to extend to 8M or 9M
-
Usage:
-
passenger cars, truck, pickups
-
packing:
-
20GP container
-
Filtration system:
-
Ceiling for new air and exhaust with glass filter
-
Certification:
-
CE
-
Marketing:
-
European/Asia/Africa/America/Australia
-
Custom design:
-
available for size, color, heating method
Product Description

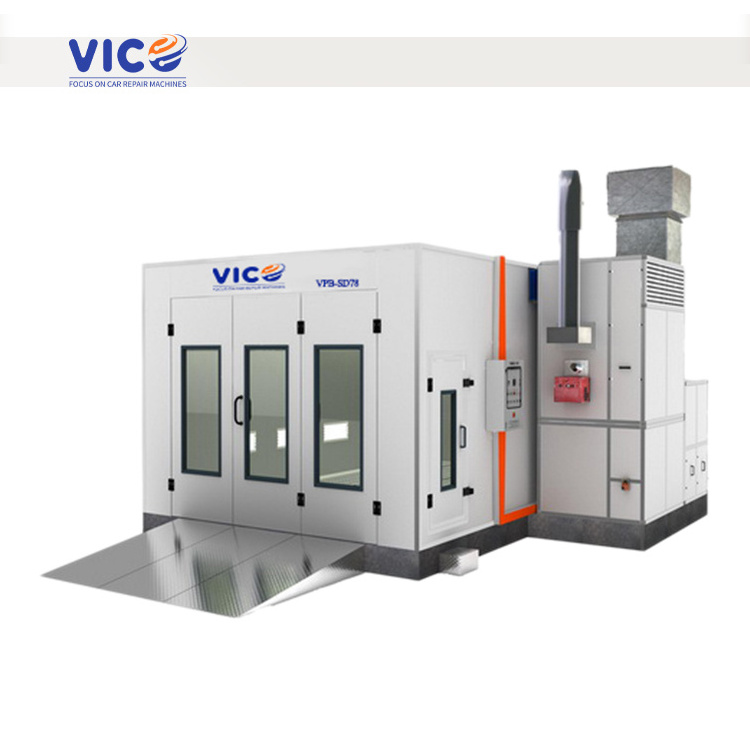

Model
VPB-SD78
is one of the most hottest sale
Downdraft type
car spray painting and
diesel baking
booth.
Perfect frame shape and beautiful main door and booth body color performance, customers love her with a look.
Also the blower fan power works well, VPB-SD78 booth can make painting job more perfect.
Specification
|
Painting booth description
|
Hot sale Export Diesel Type Car Spray Painting Booth
#VPB-SD78
|
|
Outer dimension:(mm)
|
7000*5350*3400 mm
|
|
Inner dimension:(mm)
|
6900*3900*2650 mm
|
|
Door size:
|
3000 mm(W)*2600 mm(H), side small door 700 mm*2000 mm
|
|
Appearance color
|
Red/ Blue / White grey/ Orange
|
|
Booth Frame system
|
Frame retardant polystyrene insulation board: 50mm thickness, 0.426mm thickness steel,galvanized steel assembled roof. Aluminum alloy front door frame and galvanized steel fixed room frame. The floor is assembly formed by corrosion-resistant rectangular tube with 2 rows of grids and 3 rows of checkered plates. Bottom with glass filters. 3 units drive on ramps，each size 750*2000mm(W*L)
|
|
Air circulation system
|
2*4kw
double channels centrifugal outer-motor ventilating machines, air flow: 25000m³/h, exhaust duct is formed from superior galvanized steel sheet and flange; On load air speed: 0.38m/s; Air exchange rate:320 times/h
|
|
Exhaust
|
1*5.5 KW
centrifugal fan, model YDW 5.5KW, blower capacity 15000 m3/h.
|
|
Filter system
|
High-efficiency imported glue-spreading cotton (VF-600) ceiling filter
Basement bottom grills bottom with glass filters system. |
|
Heating system
|
RIELLO G20 burner, Max. Calorific value:180,000kcal/h.
Exchanger Argon arc welded SUS304 stainless steel Max. Temperature :80℃； Diesel consumption 5-8L/h; Temperature rise rate:5-8min(20-60℃)； |
|
Lighting system
|
Ceiling with two lines of lighting box, each line 4 units.total with 24pcs of 36w LED lamps. Illuminance: 800Lux. Side lights:8 groups*2 pc=16 pcs 36W LED lights.
|
|
E-controlling system
|
Adopt superior electronic components, main circuit has multi-protection.
Function:Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch,emergency stop, pressure gauge, all motors reduced-voltage starting. |
|
Total power
|
16KW
|
|
Electric power supply
|
3PH, 220V/380V/415V, 50Hz/60Hz
|
