Quick Details
-
Applicable Models:
-
for most OBD2 compatible vehicles
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BOYNA
-
Model Number:
-
A0004-1
-
Warranty:
-
12 Months
-
Item Type:
-
Car Diagnostic Scanner
-
Model number:
-
MINI OBDII wireless connection
-
Communication method:
-
wireless connection
-
Software platform:
-
Support Android / IOS / Windows
-
Operating temperature:
-
-40℃~85℃
-
Operating humidity:
-
<60%
-
Dimensions:
-
48mm*25mm*25mm
-
Language:
-
English
-
Size:
-
25*10*8cm
-
Weight:
-
0.025Kg
Quick Details
-
Car Fitment:
-
Universal
-
Voltage:
-
9V~16V
-
Power:
-
25mA
-
Applicable Models:
-
for most OBD2 compatible vehicles
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BOYNA
-
Model Number:
-
A0004-1
-
Warranty:
-
12 Months
-
Item Type:
-
Car Diagnostic Scanner
-
Model number:
-
MINI OBDII wireless connection
-
Communication method:
-
wireless connection
-
Software platform:
-
Support Android / IOS / Windows
-
Operating temperature:
-
-40℃~85℃
-
Operating humidity:
-
<60%
-
Dimensions:
-
48mm*25mm*25mm
-
Language:
-
English
-
Size:
-
25*10*8cm
-
Weight:
-
0.025Kg

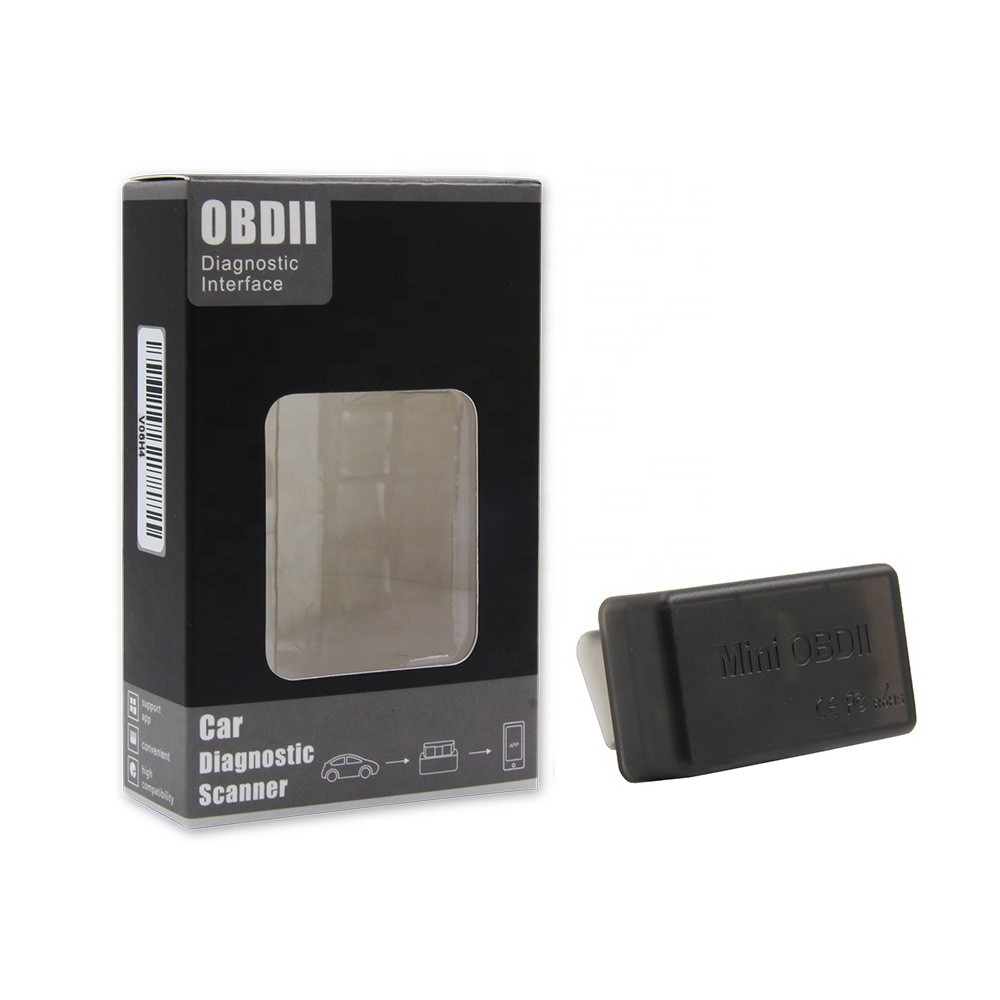

Mini OBDII Wireless BT 4.0 V1.5 PIC18F25K80 chip obd car diagnostic scanner for vehicles obd2
| Item Type | Car Diagnostic Scanner |
| Model number | MINI OBDII BT 4.0 |
| Communication method | BT 4.0 |
| Software platform | Support Android / IOS / Windows |
| Operating voltage | 9V~16V |
| Operating current | 25mA |
| Operating temperature | -40℃~85℃ |
| Operating humidity | <60% |
| Dimensions | 48mm*25mm*25mm |
| Language | English |
| Size | 25*10*8cm |
| Weight | 0.04Kg |
Mini OBD2 BT 4.0 Scanner for Multi-brands CAN-BUS as same as ELM327 BT 4.0. Supports All OBD2 Protocol works on IOS, Android, Symbian, Windows, used to read diagnostic trouble codes, both generic and manufacturer-specific, and display your meaning (over 3000 generic code definitions in the database).
Mini OBD2 BT 4.0 Scanner for Multi-brands CAN-BUS as same as ELM327 BT 4.0.
Top 5 Reasons To Get Mini OBD2 BT 4.0 Scanner:
1. Software Version: V2.1 (depending on software)
2. Hardware Version: V1.5
3. Works with all OBD-II compliant vehicles
4. Wireless (BT)
5. Support Four operating platforms (IOS, Android, Symbian, Windows)
Supported protocols:
1.SAE J1850 PWM (41.6Kbaud)
2.SAE J1850 VPW (10.4Kbaud)
3.ISO9141-2 (5 baud init, 10.4 Kbaud)
4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5.ISO14230-4 KWP (fast init, 10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
8.ISO15765-4 CAN (11bit ID, 250 Kbaud)
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)
Mini OBD2 BT 4.0 Scanner Specifications:
Communication: BT 4.0
Main Chip: PICI8F25K80
Support System: IOS, Android, Symbian, Windows
Working Voltage: 9v ~ 16v
Working Current: 35mA
Standby Current: 25mA
Operating temperature: -40 ℃ ~ 85 ℃
Working Humidity: less than 60%
Size: 43mm * 25mm * 30mm
Compatible systems:
Software support platform: Windows XP, Windows 7/8, IOS, Android, Symbian.
Compatible software:
Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, ELM327 Identifier, ELM327Chat etc.
IOS: Auto Doctor, Mini OBDII
Android: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.
Symbian: OBDScope
Mini OBD2 BT 4.0 Scanner Functions:
1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2: Clear trouble codes and turn off the MIL ("Check Engine" light)
3: Display current sensor data, including:
4: Engine RPM
5: Calculated Load Value
6: Coolant Temperature
7: Fuel System Status
8: Vehicle Speed
9: Short Term Fuel Trim
10: Long Term Fuel Trim
11: Intake Manifold Pressure
12: Timing Advance
13: Intake Air Temperature
14: Air Flow Rate
15: Absolute Throttle Position
16: Oxygen sensor voltages / associated short term fuel trims
17: Fuel System status
18: Fuel Pressure
19: Many others
Packing list:
1pc x Mini OBD2 BT 4.0
1pc x Box
Package:
Poly bags + carton box, or OEM as your request
Delivery Time:
3-7 working days for samples; 7-30 working days for bulk goods.
