Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Huiyinn
-
Model Number:
-
KHI-10B
-
Torque:
-
High Torque
-
Product Name:
-
High Duty Linear Actuator
-
Voltage:
-
DC12V/24V/36V/48V
-
Load capacity:
-
12000N
-
Power:
-
120W
-
Protection class:
-
IP66
-
Stroke:
-
100mm
-
Working frequency:
-
10%(Work continuously for 2 minutes and rest for more than 18 minutes)
-
Limit switch:
-
Built-in
-
Ambient temperature:
-
-25℃-65℃
-
Structure:
-
Low Noise, High Load
Quick Details
-
Speed(RPM):
-
customize
-
Continuous Current(A):
-
9A-25A
-
Efficiency:
-
IE 2
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Huiyinn
-
Model Number:
-
KHI-10B
-
Torque:
-
High Torque
-
Product Name:
-
High Duty Linear Actuator
-
Voltage:
-
DC12V/24V/36V/48V
-
Load capacity:
-
12000N
-
Power:
-
120W
-
Protection class:
-
IP66
-
Stroke:
-
100mm
-
Working frequency:
-
10%(Work continuously for 2 minutes and rest for more than 18 minutes)
-
Limit switch:
-
Built-in
-
Ambient temperature:
-
-25℃-65℃
-
Structure:
-
Low Noise, High Load
Product Description

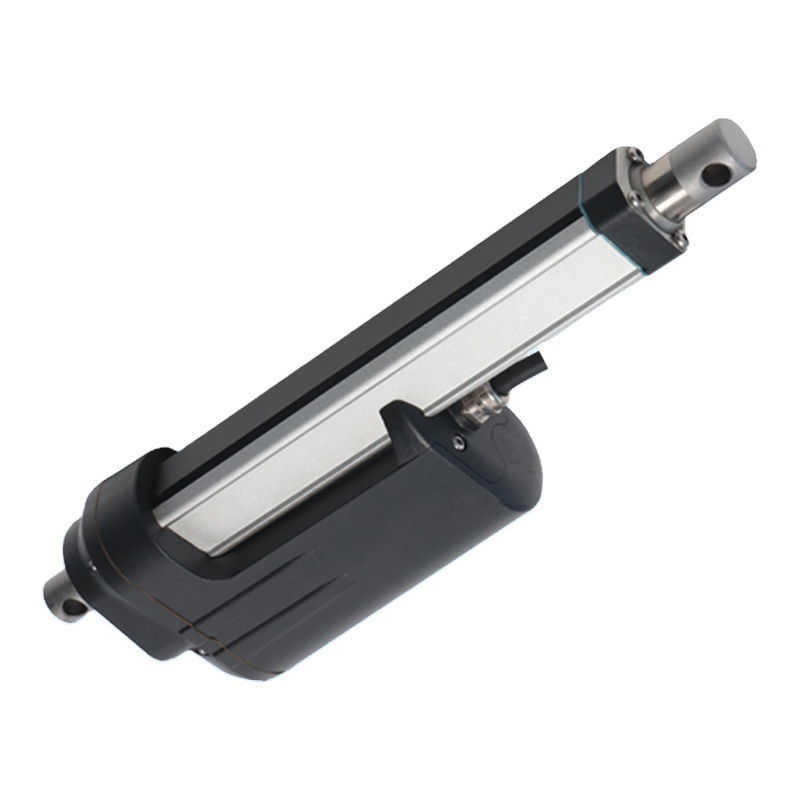

Permanent Magnet Electric Linear Actuator 12V Stroke 400mm Waterproof 12000N Linear Actuator with Position Feedback
Product Details:
1.Thickened aluminum alloy pipe
2.
Electroplated iron head
3.Built-in limit switch
Advantages:
1. Large thrust
2. Low noise
4. Long life time
|
Product Name
|
linear actuator
|
|
Voltage
|
12V/24V/36V/48V
|
|
Power
|
120W
|
|
Working Frequency
|
10%
|
|
Ambient Temperature
|
-25℃-65℃
|
|
Stroke
|
100mm
|
|
Load
|
12000N
|
|
Protection Degree
|
IP66
|
The details of this IP66 heavy duty linear actuator
Dimensional Drawing
The Installation Dimension of
Electronic Linear Actuators
Minimum Installation Distance(L):
The distance between the front and rear mounting holes after the push rod is fully retracted
S=(50MM~400MM) (L)=S+200MM
S=(301MM~600MM) (L)=S+250MM
S=(601MM~1000MM) (L)=S+300MM
Application
Application of Linear Actuator
