The door body is more stable at high speed, reducing noise. Adopt double turbine structure, high safety factor.
Thanks to non-contact roll-up technology, there is no wear on the door panel sections which helps the door to keep its exclusive
appearance for a long time.
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Warehouse
-
Design Style:
-
Industrial
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Cutedoor
-
Model Number:
-
15
-
The maximum size:
-
W8m * H8m
-
sealing:
-
wind-proof
-
Name:
-
Hard Material High Speed Rolling Door
-
Thickness of panel:
-
43mm thick, 60mm thick, 80mm thick
-
Speed:
-
open,close:0.8~2.5m/s
-
application:
-
all types of plant outside
-
operating life:
-
1000000 cycles
-
Sealing property:
-
Water tightness≤1.5w
-
Open Style:
-
Rolling
-
Position:
-
Industrial
Quick Details
-
Door Material:
-
aluminum
-
Feature:
-
Windproof
-
Main Material:
-
aluminum
-
Application:
-
Warehouse
-
Design Style:
-
Industrial
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Cutedoor
-
Model Number:
-
15
-
The maximum size:
-
W8m * H8m
-
sealing:
-
wind-proof
-
Name:
-
Hard Material High Speed Rolling Door
-
Thickness of panel:
-
43mm thick, 60mm thick, 80mm thick
-
Speed:
-
open,close:0.8~2.5m/s
-
application:
-
all types of plant outside
-
operating life:
-
1000000 cycles
-
Sealing property:
-
Water tightness≤1.5w
-
Open Style:
-
Rolling
-
Position:
-
Industrial
Product Description
Cutedoor

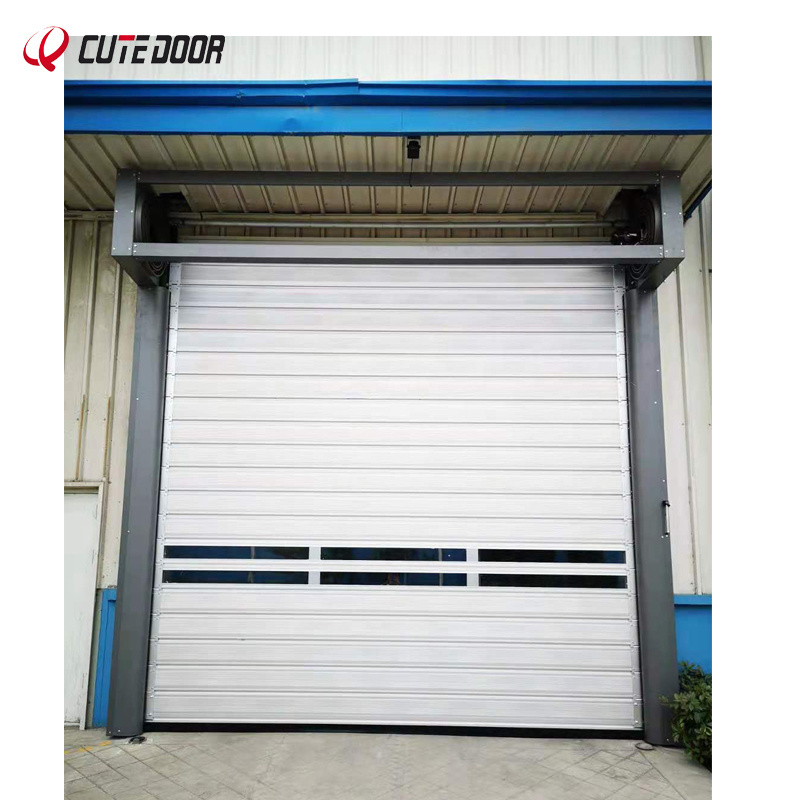

Aluminum Spiral High Speed Doors combine all the benefits of a traditional roller shutter with a sectional overhead door and give it the high speed, fast action of a Rapid Roll door.
It can be used as exteral security doors with heavy traffic and also need to prevent outside people. It can also be used as
thermal insulated rapid doors fit for temperature-controlled rooms.
It can be used as exteral security doors with heavy traffic and also need to prevent outside people. It can also be used as
thermal insulated rapid doors fit for temperature-controlled rooms.
|
PARAMETERS
|
TECHNICAL AND OPERATING SPECIFICATIONS
|
|
APPLICATION
|
Inside and outside
|
|
MAX CLEAR DIMENSIONS
|
8000 x 7500 mm
|
|
OPENING /CLOSING SPEED
|
0.5~ 2.5 m/s (Setting depending on the size)
|
|
WATER PERMEABILITY
|
≤700pa, Class 6
|
|
WIND PERMEABILITY
|
5kpa, Class6
|
|
OPERATING TEMPERATURE
|
-10°C +40°C
|
|
GUIDE STRUCTURE
|
Galvanized steel+Aluminium alloy
|
|
CURTAIN
|
OUTSIDE/INSIDE:
pre-painted alluminium with PU forming the thickness 43/60/80mm |
|
CONTROL PANEL
|
Inverter 380 V with microprocessor
|
|
POWER SUPPLy
|
380V，50/60HZ
|
|
Motor
|
Serve Motor
|
|
EMERGENCy OPENING
|
STANDARD
|
|
|
Manual crank release (counterweight)
|
|
SAFETY EDGE
|
STANDARD
|
|
|
Integrate in photocells barriers activated up to a height of 3000mm
|
Detailed Images
Turbine guide rail
Spring balancing system
Installation and two sides of the interior of the door pillar, and the weight of the door panel ratio, can reduce the load of the sever motor operation
Hinge axis & Hinge
Hinge axis with QP heat treatment technology, so that the hardness of the shaft body, smoothness, corrosion resistance is 3-5times of ordinary galvanized shaft hinge with high strength aluminum alloy heat treatment, corrosion resistance, hinge and roller
shaft with close sliding flexibility
shaft with close sliding flexibility
Packing&Shipping
Company Introduction
Our Services & Strength
Our factory can support curtain and steel for free to confirm quality.
After any inquiry, our customer will get effect drawing.
Contact us without hesitation now , Cutedoor regards the provision of reliable and responsive service as a critical part of our business.
Contact us without hesitation now , Cutedoor regards the provision of reliable and responsive service as a critical part of our business.
Certificate
CE
ISO14001
ISO14001
