Factory Wholesale Price Stainless Steel Dry Fish Fillet Processing Equipment
Factory Wholesale Price Stainless Steel Dry Fish Fillet Processing Equipment
Factory Wholesale Price Stainless Steel Dry Fish Fillet Processing Equipment
Factory Wholesale Price Stainless Steel Dry Fish Fillet Processing Equipment
Factory Wholesale Price Stainless Steel Dry Fish Fillet Processing Equipment
Factory Wholesale Price Stainless Steel Dry Fish Fillet Processing Equipment
Factory Wholesale Price Stainless Steel Dry Fish Fillet Processing Equipment
Factory Wholesale Price Stainless Steel Dry Fish Fillet Processing Equipment

Factory Wholesale Price Stainless Steel Dry Fish Fillet Processing Equipment

FOB Reference Price: Get Latest Price
≥1 Pieces
US $1600
≥5 Pieces
US $1350
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Voltage:
220V/380V
Power:
1.5KW
Dimension(L*W*H):
830*680*870 MM
Weight:
140 KG
Material:
Stainless steel
Gross weight:
140kg
Output:
180kg/h
The belt length:
1195mm
The thickness of the belt:
20mm
The belt width:
150mm
diameter of cylinder:
150mm
The thickness of the cylinder:
6mm
Mesh diameter:
2.7mm
Customize:
Y

Quick Details

Production Capacity:
180kg/h
Place of Origin:
Guangdong, China
Brand Name:
Chuangyu
Voltage:
220V/380V
Power:
1.5KW
Dimension(L*W*H):
830*680*870 MM
Weight:
140 KG
Material:
Stainless steel
Gross weight:
140kg
Output:
180kg/h
The belt length:
1195mm
The thickness of the belt:
20mm
The belt width:
150mm
diameter of cylinder:
150mm
The thickness of the cylinder:
6mm
Mesh diameter:
2.7mm
Customize:
Y

Product Description

Product Features:

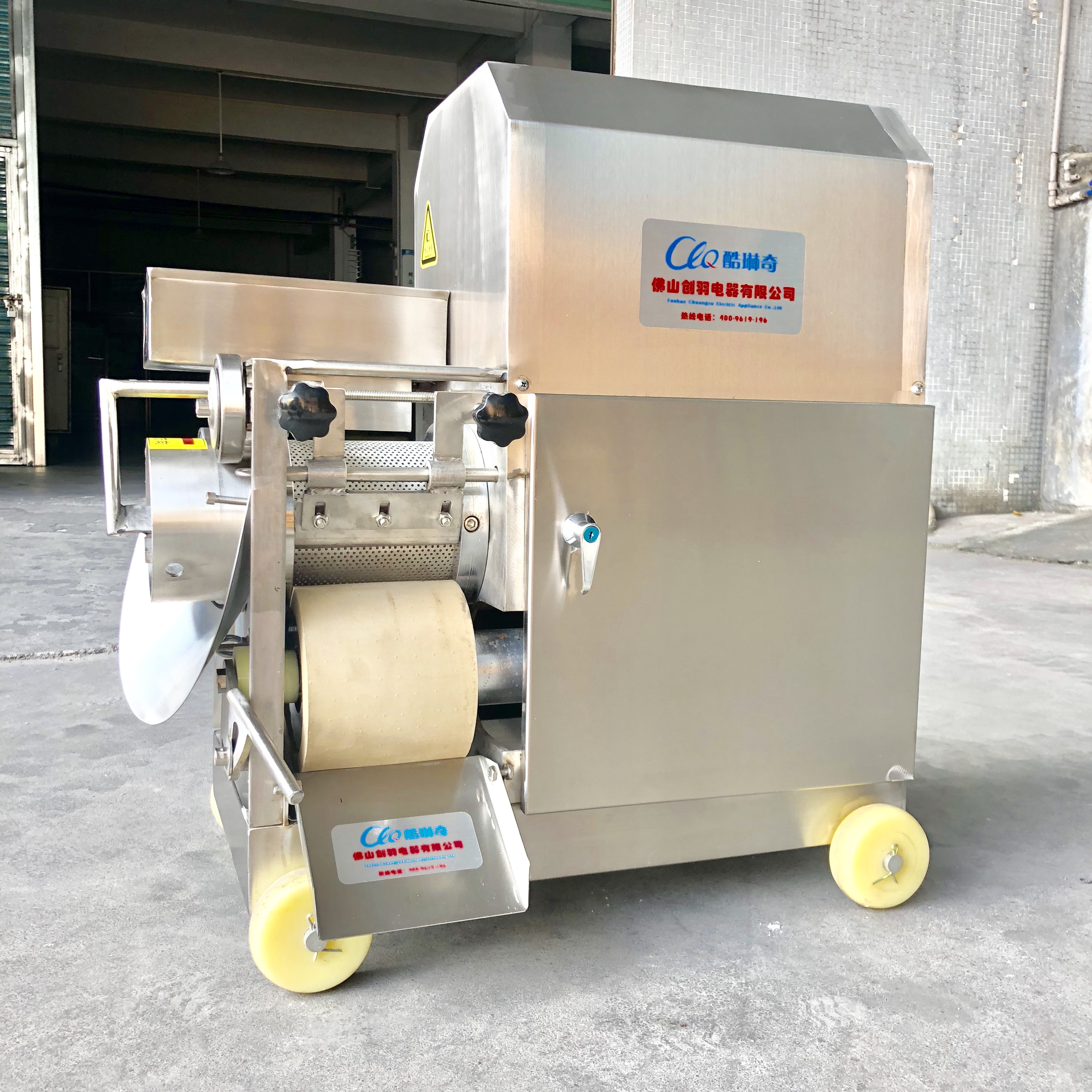

Fish meat collecting machine used in all kinds of fresh water, sea water fish, fish shrimp peeled bone, a special machine for meat, fish, eggs, fish balls, food factory, fishing boats and other units to use, this machine is mainly composed of motor, scraper, tensioning device, transmission device, conveyor belt, fishbone discharging mouth, minced fish discharging mouth, operation of drum, fish feed port and so much.

Cut the small or medium fish and put them directly into it, Large fish need to be head to tail, cut ,and then thrown in,low speed high density stainless steel sieve cylinder and conveyer belt will be squeezed out of the fish bone spurs after skin of fish scales, etc., to extract clean minced fish, adopt gearbox or speed reducer drive, torque at low speed running stability not to heat up, the whole machine is made of stainless steel production conforms to sanitary requirements, convenient washing, high benefit to extract the minced fish product, save artificial fish mince, improve all kinds of miscellaneous fish low economic value of the fish and save artificial fish trival, it is a ideal equipment in the coastal areas processing meat product s.

Model

CY-A180

Material Stainless Steel
Output

180kg/h

Power 1.5KW
Voltage 220/380V
NW 140KG
GW 70KG
Dimensions 830*680*870MM

The belt length

1195MM

The thickness of the belt 20mm
The belt width 150 mm
Diameter of cylinder 150mm

The thickness of the cylinder

6 mm

Mesh diameter

2.7mm Other Customizable
