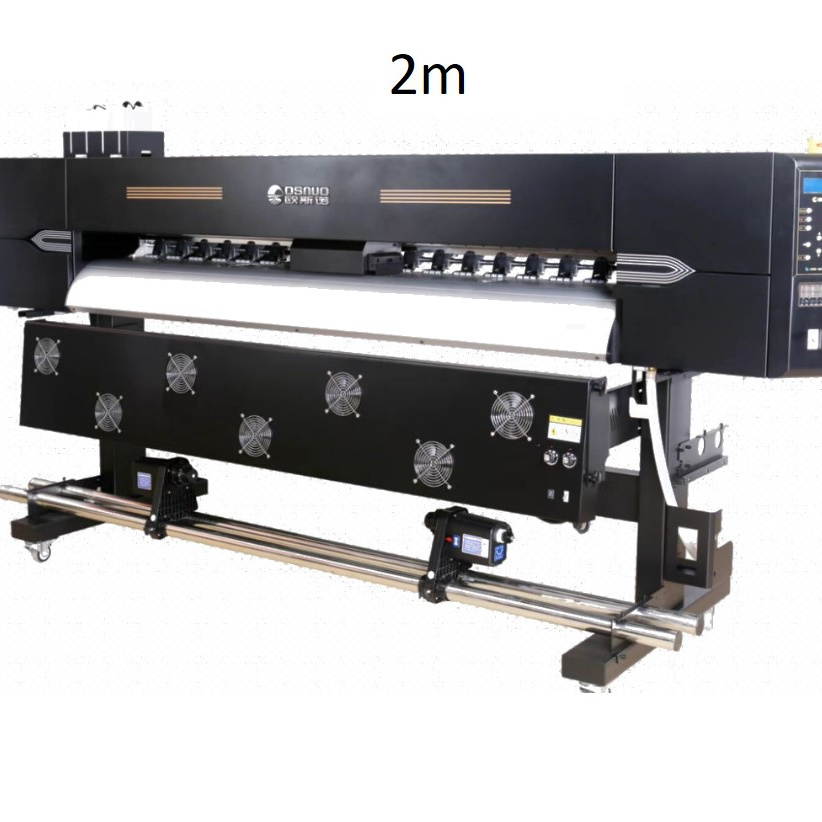

Inkjet Digital Vinyl Sticker Printer Wallpaper Flex Baner Printing Machine 2m I3200 Eco Solvent Printer

Inkjet Digital Vinyl Sticker Printer Wallpaper Flex Baner Printing Machine 2m I3200 Eco Solvent Printer

FOB Reference Price: Get Latest Price

≥1 Pieces

US $5900

≥5 Pieces

US $5750

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Ink Type:: Eco Solvent Ink/Sublimation Ink/Water-based Ink

Place of Origin:: Guangdong, China

Brand Name:: OSNUO

Voltage:: 220V

Dimensions(L*W*H):: 3.45m*1.3m*1.57m

Weight:: 350 KG

Marketing Type:: Hot Product

Printhead:: i3200

Application:: Indoor Outdoor Advertisement

Print size:: 1900mm

Print speed:: 4 Pass

Ink Color:: Multicolor

Software:: Photo Pint

Printing Resolution:: 1440dpi

Media Type:: Vinyl Banner Mesh Paper

Quick Details

Print Dimension:: 1000mm, 1200mm, 1300mm, 1600mm, 1800mm, 1850mm, 1900mm

Condition:: New

Color & Page:: Multicolor

Ink Type:: Eco Solvent Ink/Sublimation Ink/Water-based Ink

Place of Origin:: Guangdong, China

Brand Name:: OSNUO

Voltage:: 220V

Dimensions(L*W*H):: 3.45m*1.3m*1.57m

Weight:: 350 KG

Marketing Type:: Hot Product

Printhead:: i3200

Application:: Indoor Outdoor Advertisement

Print size:: 1900mm

Print speed:: 4 Pass

Ink Color:: Multicolor

Software:: Photo Pint

Printing Resolution:: 1440dpi

Media Type:: Vinyl Banner Mesh Paper

Products Description

Model			YF-1700			YF-2000B
Print head			i3200	i3200	i3200	i3200
Number			3	4	31	4
Print Mode			4C	4C	4C	4C
Print width			1600mm			1900mm
Print speed	4 Pass	43㎡/h	53㎡/h	45㎡/h	55㎡/h
		6 Pass	28㎡/h	33㎡/h	30㎡/h	35㎡/h
		8 Pass	/	/	/	/
Print resolution	1440 DPI
Print materials	Vinyl,Wallpaper,Textile,,Advertising flag,Beach flag,curtain,sheets and ect.
Print height	≤5mm
Ink type	Eco solvent ink
Curing system	Heating dryer+Cooling fan
RIP Software	Photoprint/Onyx/Caldera/Colorget
Data connection	USB3.0
Input power	220VAC(±10%) single phase ，50/61 HZ
Power	5KW					5KW
Machine size/N W	2.5m(L)0.8m(W)1.2m(H)					3.45m(L)1.3m(W)1.57m(H)

Product Details

Rail beam

There are striped wave patterns on the top of the beam body, which enhances the overall rigidity and durability of the beam body and reduces deformation caused by excessive use or transportation time.

Platform support frame

It is composed of 12 support points and two CNC machined support plates to ensure that the platform accuracy is controlled within ≤ 0.01mm

Rails

Now they are all 2.0cm rails, and most of their peers use 1.5cm wide rails.

Pinch Roller

Cooperating with licker-in rollers ensures stable paper feeding without arching, and also improves the accuracy of stepping.

Rubber roller

Model A has a diameter of 15mm， It cooperates with the long pressure roller to improve the paper feeding accuracy and make the material convey smoothly

Side panels

The one-piece aluminum material is CNC processed and formed, and the main beam, the guide beam and the licker-in are connected at the same time, which greatly reduces the use of connecting parts and greatly improves the stability of the body and the stability of the paper.

Platform heating

can be heated in three stages of front, middle and rear platforms, and the printing image is heated evenly, which enhances the ink absorption of the material

X-axis synchronizing wheel

One-piece CNC machining, with adjustable structure, convenient for later maintenance.

Anti-collision

Sensitive ultra-long anti-collision to protect the print head; touch emergency stop to prevent accidents during the printing process.

Lifting and lowering of the trolley

It can be adjusted physically by printing materials of different thicknesses.

Damper fixing device

The ink damper, print head, and print head bottom plate are uniformly fixed by the fixing frame, which effectively reduces the influence of the movement of the carriage during the printing process and ensures the smoothness of the ink
