Quick Details
-
Feed Mechanism:
-
Automatic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LVBU
-
Power:
-
750w
-
Overall Dimensions:
-
120*113*115cm
-
Weight (KG):
-
200 KG
-
Model:
-
3020
-
Sewing size:
-
3500*200
-
Package Size:
-
124*80*130cm
-
Package weight:
-
200KG
Quick Details
-
Type:
-
Industrial Sewing Machine
-
Max. Sewing Thickness:
-
6mm
-
Stitch Length:
-
0.1-12.7MM
-
Feed Mechanism:
-
Automatic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LVBU
-
Power:
-
750w
-
Overall Dimensions:
-
120*113*115cm
-
Weight (KG):
-
200 KG
-
Model:
-
3020
-
Sewing size:
-
3500*200
-
Package Size:
-
124*80*130cm
-
Package weight:
-
200KG
Products Description
Features
7.5" touch screen, colorful language text interface, concise and easy to understand, easy to operate, you can program the pattern directly on the monitor to complete the turning seam.
Features
750W energy-saving servo main motor, strong over-thickness capability, thick and thin can be turned and sewn.
Application Industry
LVBU brand programmable electronic pattern sewing machine is widely used for sewing any pattern of flat seams for bags, shoes, garment sewing, webbing, seat belts, velcro, flat phone cases, hats, etc. The sewing speed is fast and the stitching standard is beautiful.
Product Paramenters
|
1
|
Type of Controller
|
Computerized Control System for Mitsubishi Series Pattern-sewing Machine
|
|
|
Sewing size
|
: 300*200MM
|
|
2
|
Max. Sewing Speed
|
3000rpm（with stitch interval below 3mm）
|
|
3
|
Stitch Length
|
0.1～12.7mm, and in the control system is of version 5.0 or above, the maximum stitch length can extend to 40 mm（Min Resolution:
0.10mm） |
|
4
|
Feed Motion of Frame
|
Intermittent feeding (2-shaft driven by pulse motor)
|
|
5
|
Needle Bar Stroke
|
41.2mm
|
|
6
|
Needles
|
DP×5、DP×17
|
|
7
|
Lift of Frame
|
Standard 18mm to Max. 22mm（Pneumatic type: Max. 25mm）
|
|
8
|
Intermediate Presser
|
Stepping Driving (Range: 0～8mm)
|
|
9
|
Lift of Intermediate Presser
|
20mm
|
|
10
|
Rotating Shuttle
|
Double-capacity semi-rotary hook
|
|
11
|
Memory of Pattern Data
|
Memory/U Disk
|
|
12
|
Pause function
|
Stop the machine during the sewing
|
|
13
|
Scaling Up/Down Function
|
Allows a pattern to be scaled up/down on the X axis and Y axis independently when user sews a pattern. Ratio: 1% to 400% (0.1% per
step) |
|
14
|
Scaling Up/Down Method
|
Increasing / decreasing stitch length & Increasing / decreasing stitch number
|
|
15
|
Sewing Speed Limitation
|
200～3000rpm（100rpm per step）
|
|
16
|
Pattern Selection Function
|
Pattern No. selection method
|
|
17
|
Up counter
|
No Count/Count of Pattern /Count of Cycle (0～99999)
|
|
18
|
Down Counter
|
No Count/Count of Pattern /Count of Cycle (0～99999)
|
|
19
|
Sewing Machine Motor
|
Servo Motor
|
|
20
|
Stop Needle at Highest Position Function
|
After the completion of sewing, the needle can return to its highest position.
|
|
21
|
Rated Power
|
600W
|
|
22
|
Operation Temperature Range
|
0℃～45℃
|
|
23
|
Operation Humidity Range
|
35%～85% （No Dew Condensation）
|
|
24
|
Line Voltage
|
AC 220V ± 10%；50/60Hz
|
|
|
|
|

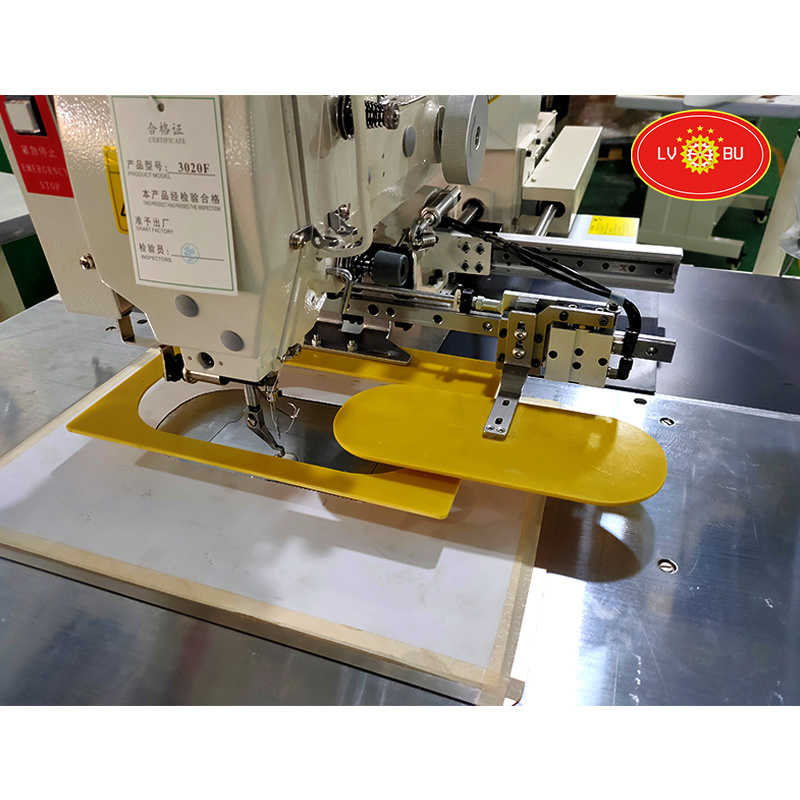

Details Images
