√Fine powder or granular materials（The fine, small and flake biomass powder must first be formed into wood chip sticks by a wood chip forming machine, which can be carbonized by a horizontal carbonization furnace.)
:
sawdust, shavings, wood chips, rice husk, rice grams, peanut shell, wood chips, nut shells, palm shells, cashew nut shell, hemp straw, biomass, some crops, semi-coke bark, furfural residue.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ZHUOZHILAN MACHINERY
-
Effective Volume:
-
1/2/3/4/6/8m3
-
Dimension(L*W*H):
-
1.8*1.7*2.2m
-
Voltage:
-
0
-
Power:
-
0
-
Weight (KG):
-
1000
-
Product name:
-
horizontal carbonization furnace
-
Production Capacity:
-
300-3000kg
-
Applicable raw materials:
-
Bamboo, coconut shell, log, rice husk,wood chips, etc.
-
Heat source material:
-
Coal, wood, natural gas, diesel, etc.
-
Carbonization method:
-
Dry distillation carbonization
-
Carbonization time:
-
Decide time based on raw materials
-
Raw material size:
-
Within 30cm
-
aftersale service provided:
-
Engineers available to service machinery overseas
-
Materials:
-
Carbon Steel
-
Color:
-
Adjustable
Quick Details
-
Place of Origin:
-
Henan, China
-
Marketing Type:
-
Hot Product 2023
-
Core Components:
-
pipeline
-
Brand Name:
-
ZHUOZHILAN MACHINERY
-
Effective Volume:
-
1/2/3/4/6/8m3
-
Dimension(L*W*H):
-
1.8*1.7*2.2m
-
Voltage:
-
0
-
Power:
-
0
-
Weight (KG):
-
1000
-
Product name:
-
horizontal carbonization furnace
-
Production Capacity:
-
300-3000kg
-
Applicable raw materials:
-
Bamboo, coconut shell, log, rice husk,wood chips, etc.
-
Heat source material:
-
Coal, wood, natural gas, diesel, etc.
-
Carbonization method:
-
Dry distillation carbonization
-
Carbonization time:
-
Decide time based on raw materials
-
Raw material size:
-
Within 30cm
-
aftersale service provided:
-
Engineers available to service machinery overseas
-
Materials:
-
Carbon Steel
-
Color:
-
Adjustable
Product Overview

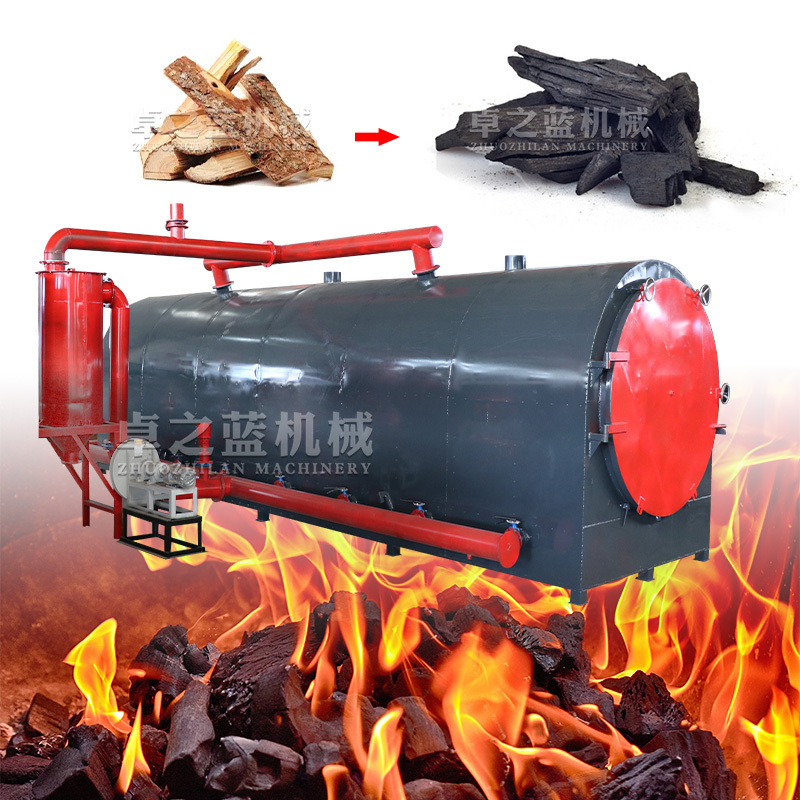

1.Introduction of Small Energy Save Environmental Wood Log charcoal production equipment Economical Protection Smokeless carbonization furnace :
▶
New 6ton Horizontal activated machine coal retort oven kiln briquette wood charcoal carbonization stove furnace Machine on Sale
is a new kind of type carbonization stove, which can also be called charcoal kiln, charcoal making machine, charcoal stove.
▶It adopts the advanced carbonized technology heat flow, uses a unique storage chamber structure, make full use of the flue gas produced by carbonization.
▶It is used to make charcoal from the wood and all kinds of biomass.
▶6-8h can be carbonized furnace, carbonized rate is 99%.
▶The
New 6ton Horizontal activated machine coal retort oven kiln briquette wood charcoal carbonization stove furnace Machine on Sale
operation is very convenient, good safety, high production efficiency, can save a lot of energy, good environmental protection performance, simple and convenient, need not power and mobile production.
▶It ensures that the entire process does not produce harmful gases and does not pollute the environment.
▶It is an ideal equipment of family,large and medium scale production of charcoal.
2.Advantages:
1.High carbonization efficiency:
The
New 6ton Horizontal activated machine coal retort oven kiln briquette wood charcoal carbonization stove furnace Machine on Sale
Small Energy Save Environmental Wood Log charcoal production equipment Economical Protection Smokeless carbonization furnace
efficiency is up to 99%. It only takes 6-8 hours can got a batch of charcoal.
2.More Efficient:
Guide rail and loading basket. They are uniquely equipped for the horizontal carbonizing machine. Workers can load the wood or briquettes into the steel basket and then push it into the carbonizing chamber. This design saves the labor cost a lot and makes the operation easier and more efficiency. Carbonization furnace to end charcoal cooling time is shorter, we design the water cooling. We use the gap between the intermediate layers to cool the carbonization furnace with unit water cooling, compare with the natural cooling more efficient and convenient. Carbonization furnace production can be greatly improved.
3.Various heating methods:
The heating source can be the firewood / coal/ coal gas/ natural gas/ liquefied gas/ Combustible gas/ burner, electric, etc..
4.Strong door seal of the furnace:
It is sealed with graphite packing, not into the air, Out of carbon than the conventional carbonization furnace is much higher.
5.Durable and long service life：
Prominent three layers structure of the
Affordable Small cost input Household Carbonization Stove Waste Wood Charcoal Making Machine Horizontal Multifunctional Furnace
is the use of horizontal manufacturing process. The inner layer is high heat transfer and wear-resistance steel for increasing the carbonizing temperature. So can reduce its carbonization time. The middle layer is the asbestos for light insulation materials. It is possible to keep the temperature in the furnace at all times. The outer layer is painted steel.
6.Green and energy saving:
New 6ton Horizontal activated machine coal retort oven kiln briquette wood charcoal carbonization stove furnace Machine on Sale
uses anaerobic coking and combustible gas recycling technology. After the flue gas is recovered, the purifier tank can clean the smoke, carbon monoxide,methane, oxygen and other combustible gas generated in the carbonizing. It can reach dust-free and smoke-free. The cleaned gas enters the burning chamber through the pipes can be used to ignite like liquefied gas for heating, cooking, and baking and used for dry machine and itself. Excess combustible gas can be recycled, recycled wood tar system, Recycling, purification and utilization of water vapor. In this process of recovery, purification, and advanced technology of cyclic combustion, no harmful gas is emitted and reduces the consumption of wood, coal, LPG, etc for heating, which solves the problem of common carbonization furnaces in the carbonization process.
7.High security level:
The design of the
New 6ton Horizontal activated machine coal retort oven kiln briquette wood charcoal carbonization stove furnace Machine on Sale
is reasonable, there is no gas pressure when carbonization, the carbonization furnace has an explosion-proof mouth. Even if the operation is improper, the gas will be discharged safely. The carbonization temperature is up to 700°C. If you accidentally touch it, also won't get burned. Because the external insulation material is very safe.
Carbonization Process
Feeding raw material and sealing the furnace → Preheating and drying the raw material → Anaerobic carbonization → Cooling and discharging the carbon.
1. Preparing the materia, if it's the wood, please make sure the size is not with big different;
2. Open the furnace door, and put the mateiral inside directly; or you can put the mateiral on the rail car to send the material into the inner pot.
3. Seal the furnace, and check the valves and other things, make sure the furnace is ok before firing.
4. FIre the furnace and to make the charcoal. This step, there is the combustible gas to produce and this gas can be sent to the bottom of the fire mouth to let the machine heat.
5. After the charcoal finished and cooled, then use the rail car to delivery the charcoal out. Then all the steps are finished.
Raw Materials & Finished Products
√New model horizontal bamboo charcoal carbonizer furnace oven can directly carbonize (Bulky timber)
: fruit tree, bamboo, wood branches, wood blocks, coconut shell, waste wood, trunks, wood logs, stumps, roots, wooden pallet, corncob, furniture factory scrap.
Product Paramenters
|
Model
|
Inner Barrel Size
|
Boundary Dimension
(m)
|
Weight
(kg)
|
|
50
|
0.5*0.75m*6mm
|
1.1*0.7*1
|
130
|
|
100
|
0.8*0.75m*6mm
|
1.1*1*1.4
|
200
|
|
200
|
0.8*1.5m*6mm
|
1.8*1*1.4
|
400
|
|
250
|
1*1.5m*6mm
|
1.8*1.2*1.6
|
450
|
|
300
|
1.2*1.5m*6mm
|
1.8*1.4*1.8
|
700
|
|
500
|
1.5*1.5m*8mm
|
1.8*1.7*2.2
|
1000
|
|
700
|
1.5*2m*8mm
|
2.3*1.7*2.2
|
1300
|
|
1000
|
1.5*3m*12mm
|
3.3*1.8*2.4
|
2800
|
Customer Sites
☻Our team have more than
30 years
export experience for carbonization furnace. We can help optimize the drying process according to the property of different materials, production scale, application requirements, cost control, automation level and site condition.
☻The plastic film bag wrapped machine, according to the size and weight to make wood case, put machine in and fixed the box after loading.
(The box material can be made as your requirements)
The carbonization machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.
Production Line
♥We could customize reasonable and efficient production line according to customers' site, raw materials, output and other requirements.
♥
Firstly, palm shell, coconut shell, wood, bamboo and other biomass are carbonized into charcoal by carbonization furnace and enter storage tank. According to customer's raw material, you can choose continuous carbonization furnace, horizontal charcoal making stove and hoisting carbonization furnace.
♥
Secondly, charcoal can be crushed into charcoal powder by dust-free grinder.
♥
Thirdly, charcoal powder are stirred by double shaft mixer and mixer.
♥
In the end, charcoal powder can be formed into ball, cylinder, tables and cubic by briquette machine and enter the dryer by drying.
♥
The whole charcoal making kiln, peanut shell carbonization furnace and charcoal machine for sale production line are fully automatic.
Similar Products
HOISTING CARBONIZATION FURNACE
Hoisting carbonization furnace are composed of carbonization furnace body, furnace cover, inner tank, cage, combustible gas return pipe, exhaust pipe, flue gas dust removal device, tank lifting device and thermometer. The furnace adopts the principle of anaerobic dry distillation to remove the volatile substances in the biomass and achieve the purpose of biomass carbonization. Carbonization process through: charging sealing furnace, preheat drying, anaerobic carbonization and cooling out carbon four steps to complete.
CONTINUOUS CARBONIZATION FURNACE
Continuous carbonation machine uses the carbonized flue gas purification into combustible gas generated in combustion itself. it can continuous product 24 hours. It has an advantages of zero pollution, zero emission, save labor, high capacity, energy-saving consumption, the high degree of automation and advanced technology. Which is suitable for large-scale production, with high carbonation rate, high carbon production rate, energy saving, environmental protection, high efficiency advantages. This machine is suitable for all kinds of forestry and agriculture powder particles.
