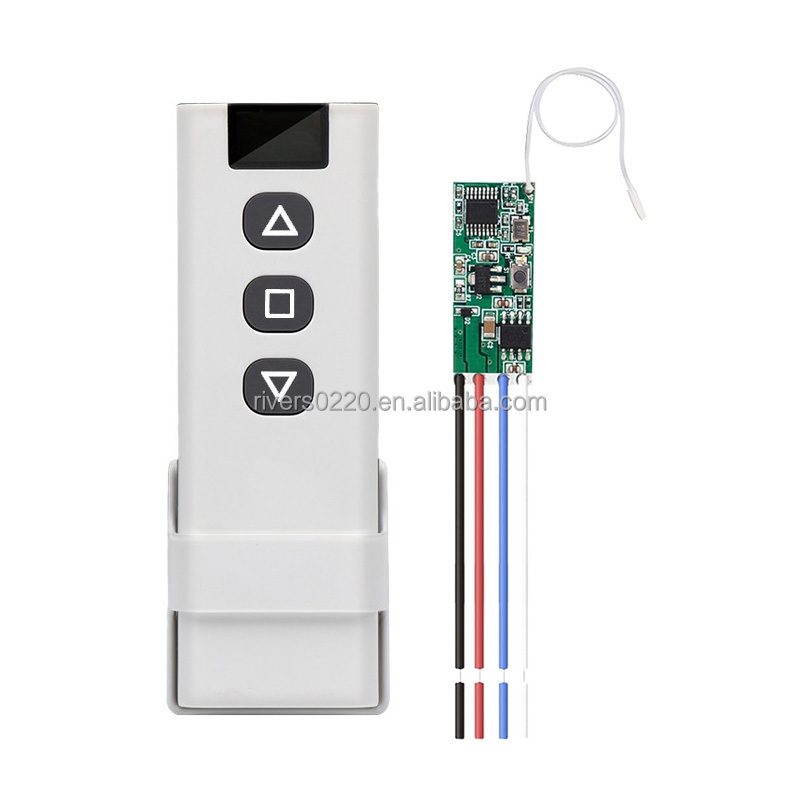

12v 2a Dc Motor Controller Forward and Reverse 433mhz Remote Control Up Down Stop Mini Motor Remote Switch

12v 2a Dc Motor Controller Forward and Reverse 433mhz Remote Control Up Down Stop Mini Motor Remote Switch

FOB Reference Price: Get Latest Price

≥5 Sets

US $3.65

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Product Name:: Remote and Receiving module

Frequency:: 433.92Mhz

Module power supply:: DC3~12V

Load current:: 2 A

Standby current:: 5-6mA (without power saving mode)

Maximum load:: ≤2A/24W

Dimensions:: 32.2 -12.8 - 3.1 mm

Scope of application:: Small motors, motor drives

Working mode:: Momentary,Toggle,Latched,Power Saving Modes

Quick Details

Function:: LED Touch Control, Digital LED Display, Auto shut-off, LED indicator light, Timer Function, Automatic, Single Serve, Voice control

Brand Name:: rivers

Model Number:: MT12V

Place of Origin:: Guangdong, China

Product Name:: Remote and Receiving module

Frequency:: 433.92Mhz

Module power supply:: DC3~12V

Load current:: 2 A

Standby current:: 5-6mA (without power saving mode)

Maximum load:: ≤2A/24W

Dimensions:: 32.2 -12.8 - 3.1 mm

Scope of application:: Small motors, motor drives

Working mode:: Momentary,Toggle,Latched,Power Saving Modes

Product Description

Description

* Introduction: This DC 3V~18V miniature motor control module is specially designed for the motor, and controls the forward rotation, reverse rotation and stop of the motor through the transmitter. Commonly used in automobiles, electric curtains, water pumps, garage doors, rolling shutter doors, etc. (DC only).

* Mini Size: Can be easily installed in limited spaces such as canopies, junction boxes, electrical boxes, etc. The size of the receiver is 32.2*12.8*3mm.

* Strong Signal: Using RF technology, this remote switch can penetrate walls, floors and doors anywhere within a reliable
distance to control the receiver. Maximum range is up to 164 feet.

* Easy to wire: With wire design, you can directly connect the positive and negative poles of the power supply and the motor.

* Power saving mode: The default standby current is 6mA. By setting the power saving mode, the standby current can be reduced to 1mA.

433MHZ DC3V~18V small motor forward and reverse wireless remote control switch

Working voltage: DC 3V-18V
Load current: 2 A
Standby current: 5-6mA (without power saving mode)
Working current: (mainly depends on the current size of the load) generally 200-300mA.
Load power: 24W, ideal maximum current 2A (long-term safe work: below 1A, 10-20W)
Working Mode: Momentary,Toggle,Latched,Power Saving Modes
Storage Quantity: 12 groups of functions can be memorized
Dimensions: 32.2 × 12.8 × 3.1 mm
Application recommendation: Remote control gate valve, remote control toy car, remote control curtain, etc.
Scope of application: Small motors, motor drives.
Recommended motor: Geared motor
receiving frequency: 433.920MHZ

Clean code

Press the learning button 8 times, the indicator light will turn off after flashing, and the module will clear the paired remote key value.

Power save mode

Description: the quiescent current is reduced from 6mA to 1mA, but it needs to press and hold the remote control for a long time to wake up the module.

Setting: press the learning button 4 times, the indicator light flashes and then goes out, the module enters the power saving mode; press the learning button 5 times, the indicator light flashes and then goes out, the module exits the power saving mode.

Momentary mode

press and hold the A button of the remote control, the motor rotates forward, release to stop, press and hold the B button of the remote control, the motor reverses, release to stop.

Setting: press the learning button once, the indicator light is always on,enter the pairing mode, press the A button of the remote control, the indicator light flashes and then keep on, then press the B button of the remote control, the indicator light flashes and then goes out, and exits the pairing mode.

Toggle Mode

press the A button of the remote control, the motor rotates forward, press the A button again, the motor stops, press the B button
of the remote control, the motor reverses, press the B button again, the motor stops.

Setting: press the learning button twice, the indicator light is always on, enter the pairing mode, press the A button of the remote control, the indicator light flashes and then light up, then press the B button of the remote control, the indicator light flashes and then goes out, exit the pairing model.

Latching Mode

press the A button of the remote control, the motor rotates forward, press the B button of the remote control, the motor reverses, press the C button of the remote control, the motor stops .

Setting: press the learning button three times, the indicator light is always on, enter the pairing mode, press the A button of the remote, the indicator light flashes and then lights up, then press the B button of the remote, the indicator light flashes and then lights up, and finally press the C button of the remote, the indicator light turns off after flashing, and exits the pairing mode.

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Specification

R16 Low power wireless remote control

ZY16-E Low power wireless remote control
1. Operating voltage: DC6V
2. Operating current: 12mA
3. Transmitting power: >10mW
4. Modulation mode: ASK
5. Quiescent Current: 0uA
6. Operating frequency: 315Mhz, 433.92 Mhz
7. Transmitting distance: 80m(open space , receiving sensitivity : -108dBm)
8. Encoding type: learning code
9. Encoding Chip: EV1527
10. Size: 61mm*29.5mm*12.5mm
11. Battery: 6V batteries(2*3V) required. (included)

Model	motor (Receiving moule)
Operating frequency	433.92 MHz/315MHz
Operating voltage	DC3~18v
PCB size	32.2 × 12.8 × 3.1 mm
Signal output method	L4:Latch-signal interlocking M4:Momentary-signal non-locking T4:Toggle-signal self-locking Signal delay function
Decoder chip	Learning code (Program IC), It can learn with transmitter which is fixed code (PT2262/PT2264/SC2262) and learning code(EV1527)
Power Type	Can work with DC Power / Rechargeable lithium battery / Rechargeable
