Quick Details
-
Capacity 2:
-
HTTP Concurrence to 1000 users
-
Input network streams supported:
-
HTTP,MMS,UDP,RTSP,RTMP,HLS protocols
-
OUTPUTS:
-
support FLV, TS, MP4, UDP, HTTP
-
supported:
-
STB real-time receiving
-
Support:
-
for multiple IPTV video on demand server(FMS,Wowza,streaming,etc
-
Resolution:
-
Hardware encoding + software solution
-
management:
-
Web management
-
Nature:
-
IPTV Streaming Server
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Product name:
-
IPTV OTT VOD System Streaming Server
-
capacity 1:
-
HLS Concurrence to 10000 users
-
Capacity 2:
-
HTTP Concurrence to 1000 users
-
Input network streams supported:
-
HTTP,MMS,UDP,RTSP,RTMP,HLS protocols
-
OUTPUTS:
-
support FLV, TS, MP4, UDP, HTTP
-
supported:
-
STB real-time receiving
-
Support:
-
for multiple IPTV video on demand server(FMS,Wowza,streaming,etc
-
Resolution:
-
Hardware encoding + software solution
-
management:
-
Web management
-
Nature:
-
IPTV Streaming Server
DMB-8800A-EC Classic Full HD+3.5mm
Input:
1*Full HD+3.5mm
Output: TS over IP(1000M)
DMB-8800A-EC Classic SDI IN
Input: 1*SDI in, without 3.5mm in
Output:
TS over IP(1000M),Up to 1080P60fps
DMB-8800B Classic Decoder
Input: IP(RTSP/UDP/TCP/RTMP,CMI,ONVIF)
Output:
1*Full HD/VGA+3.5mm, USB port for Mouse
DMB-5120 4-Channel Mux-Scrambling QAM Modulator
Input: options 16*ASI or 4*ASI or 8*DVB-S2/S Tuner in
Output:
4*QAM RF+IP(GigE) out
DMB-9008B 8-Channels Professional Receiver
Input:
8*Tuner(DVB-S/S2/C/ATSC optional), without CI slot(FTA)
Output:
246*SPTS or 14*MPTS over IP(GigE)+2*ASI(independent)
DMB-9004CIA 4-Channels Professional Receiver
Input: 4*Tuner+1*ASI in(de-mux)+4*IP ; 4*CI decryption
Output:
4+4*ASI+IP
(GigE,4*MPTS or 48*SPTS with UDP/RTP/RTSP)
ISS-7000 40 Channels IPTV Streaming Forwarding Server
Input:
IP Streams
IP Output
(Max): 40 Channels
DMB-8000 ProVideo Streaming Transcoder
Input:
IP Streams, File, SDI(option), CVBS(option), Full HD(option);
IP Output
(Max): H.264: 8*576P/480P@30/25fps
ISS-9000 IPTV Streaming Server
Input:
IP Streams, File
IP Output
(Max.): 1K concurrent

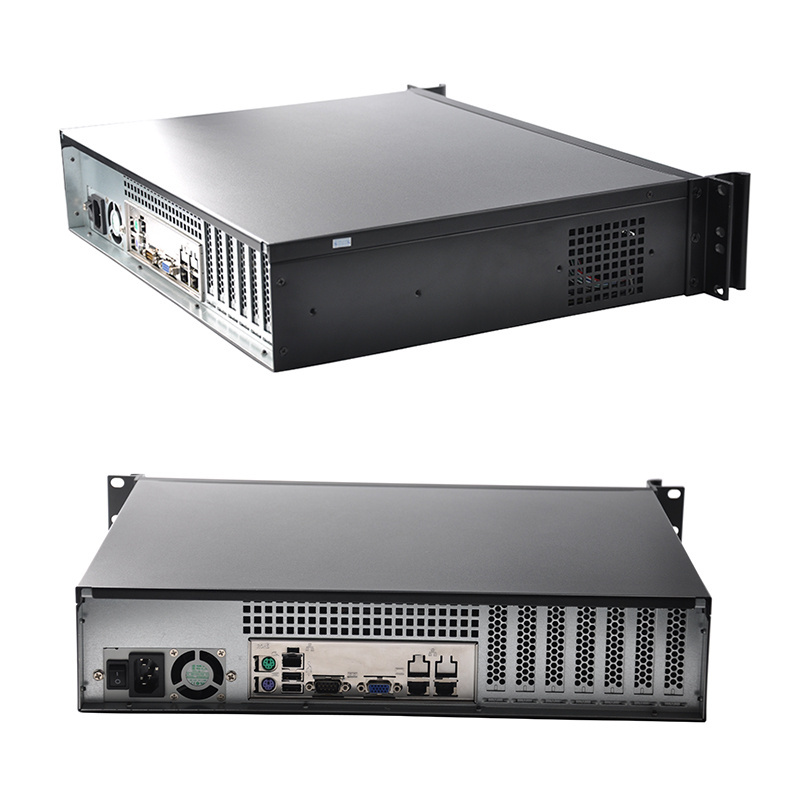

OVERVIEW
ISS-9000 IPTV Streaming Server is a professional server based on ultra-strong high-performance streaming media engines, employ new generation of architecture design, it can be used for providing distribution of high quality Audio & Video to various kinds of end-users by Internet.
The system design reaches the distributing level for ten thousand of concurrent viewers, compliant with various types of terminal devices. Owing to its powerful, fluent, stable and safe distribution capability, it is well-acclaimed. It supports H.264 & H.265 video format, easy to setup as Push mode & Pull mode of streams, output through HTTP, RTMP, HLS(m3u8) protocols, which means providing multi-screen Live Streaming, VOD services, Time-Shift and Replay through PC, mobile, TV, tablet(iOS/Android/Windows) in applications such as IPTV,OTT and other kinds of live streams. Based on the principle of saving costs for clients, the system must be able of being customized to control hardware and software budgets. The latest hardware resource is deployed according to clients' actual project scale, so as to undertake users' visit loads from scores to thousands suitable for small and big enterprises, government entities, army, groups, providing full levels of service in small size and broadcasting level operation
FEATURES
* The capability of 10K concurrent visiting.
The high-performance media engine and new generation of architecture design insure the ISS-9000 possess the capacity of Ten thousand people's concurrence easily.
* The compatibility with various kinds of end-players.
ISS-9000 realize high quality, high-speed video transmission based Internet cover all kinds of smart terminals (PC, cellphone, TVs, pad(IOS/Android/Windows))for smoothly video play.
* High compatibility with third-party encoding devices
Input/output IP streams supported: HTTP, MMS, UDP, RTSP, RTMP, HLS, GRMP, DASH( only for input) protocols.
Support Push, Pull streaming mode, Compatible with TS, MP4,FLV format packaging.
* Customizable
Able to offer/develop the API interface for integrate into customers' existing system as per needs.
* Variety in terminal play mode
ISS-9000 adopt FLV, TS packaging, support play in PC, Cellphone(Android),TVs(set top box) by using RTMP(flash) live streaming, also support slicing and pack the multi-media files, live streams to generate m3u8 index file, output HLS streams ,convenient for playing in Apple(IOS) cellphone, pad, PC. Recording file supported: AVI, TS, MP4, MPEG-1, MPEG-2, MPEG-4, WMV etc.
* Stability
Designed for broadcast level operation with Linux OS for running 24/7/365. Easy and safe to have remote access and config the server under security authorization by web-based management.
* With the VOD system integration, realize Live/VOD service on single device.
* Support video & audio pre-surveillance, detect signal errors at any time.
