Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZOMAGTC
-
Voltage:
-
220V, 220V/50Hz 90W
-
Dimension(L*W*H):
-
600*800*1100mm
-
Weight:
-
150 kg
-
PLC Brand:
-
other
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Name:
-

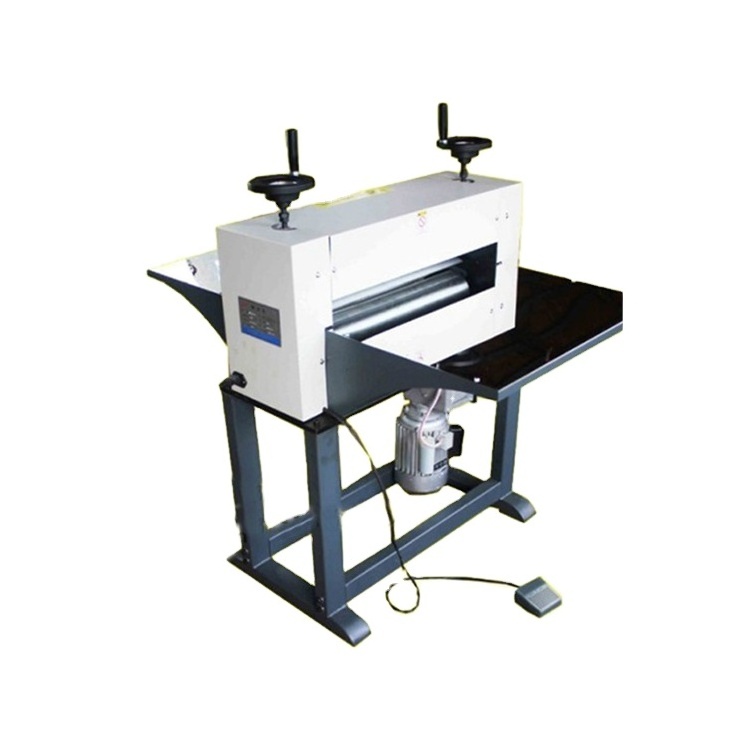

Semi-Automatic Paper Die Cutting Machine
-
Feeding Width:
-
500mm
-
Max. die cutting size:
-
500mm
-
Paper Thickness:
-
0.08-1mm
-
The Weight of Paper:
-
Within 1000g
-
The Max cutting pressure:
-
150(N/cm2)
-
Rewind diameter:
-
550mm
-
Speed:
-
25m/min
Quick Details
-
Type:
-
Die-cutting Machine
-
Production Capacity:
-
25m/min
-
Max. workable width:
-
500mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZOMAGTC
-
Voltage:
-
220V, 220V/50Hz 90W
-
Dimension(L*W*H):
-
600*800*1100mm
-
Weight:
-
150 kg
-
PLC Brand:
-
other
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Name:
-
Semi-Automatic Paper Die Cutting Machine
-
Feeding Width:
-
500mm
-
Max. die cutting size:
-
500mm
-
Paper Thickness:
-
0.08-1mm
-
The Weight of Paper:
-
Within 1000g
-
The Max cutting pressure:
-
150(N/cm2)
-
Rewind diameter:
-
550mm
-
Speed:
-
25m/min
Parameter of Semi-Automatic Paper Die Cutting Machine
|
Max.Die cutting Size |
500mm |
|
Feeding Width |
500mm |
|
Speed |
25m/min |
|
Paper Thickness |
0.08-1mm |
|
Paper Weight |
Within 1000g |
|
Roller Space |
26-30mm |
|
Max. die cutting Pressure |
150(N/cm2) |
|
Voltage |
220V 50HZ 90W |
|
Packing |
Wooden case |
|
Weight |
150kg |
|
Dimension |
600(L)x800(W)x1100(H)mm |
Features of Semi-Automatic Paper Die Cutting Machine
1.Electric creasing die-cutting machine has the structure compact, small volume, simple operation, easy to use, the advantages of high efficiency and more functions.For a complete business CARDS, stickers and other indentation die cutting.Die cutting time, convenient and quick.
2.Used round flatten technology, indentation die cutting clear multichannel creasing die-cutting once complete, suitable for more demand.
3.Longer paper panel, can more paper
4.All metal structure and thicken wall, precision bold spindle, not changeful form, lifetime warranty.
One page business card can be easily cut, shaped hole cards and a variety of shapes, can be used to make boxes, wine boxes, file covers, greeting cards, CD boxes, puzzles and photo albums, recipes, and other personalized finished product.
