Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
JAWO
-
Dimensions(L*W*H):
-
400*400*600mm
-
Weight:
-
100 KG
-
Product Name:
-
Screen Printing Machine For T-Shirt
-
Printing color:
-
Single One Time
-
Working Type:
-
pneumatic
-
Outer diameter of the frame:
-
450*650mm
-
Printing Area:
-
250*450mm
-
Working Pressure:
-
5-7Bar
-
Speed:
-
1200tims/h
-
Table Size:
-
300*500mm
-
MOQ:
-
1set
-
Packing:
-
Wood Package
Quick Details
-
Condition:
-
New
-
Color & Page:
-
single color
-
Voltage:
-
220V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
JAWO
-
Dimensions(L*W*H):
-
400*400*600mm
-
Weight:
-
100 KG
-
Product Name:
-
Screen Printing Machine For T-Shirt
-
Printing color:
-
Single One Time
-
Working Type:
-
pneumatic
-
Outer diameter of the frame:
-
450*650mm
-
Printing Area:
-
250*450mm
-
Working Pressure:
-
5-7Bar
-
Speed:
-
1200tims/h
-
Table Size:
-
300*500mm
-
MOQ:
-
1set
-
Packing:
-
Wood Package
Product Overview

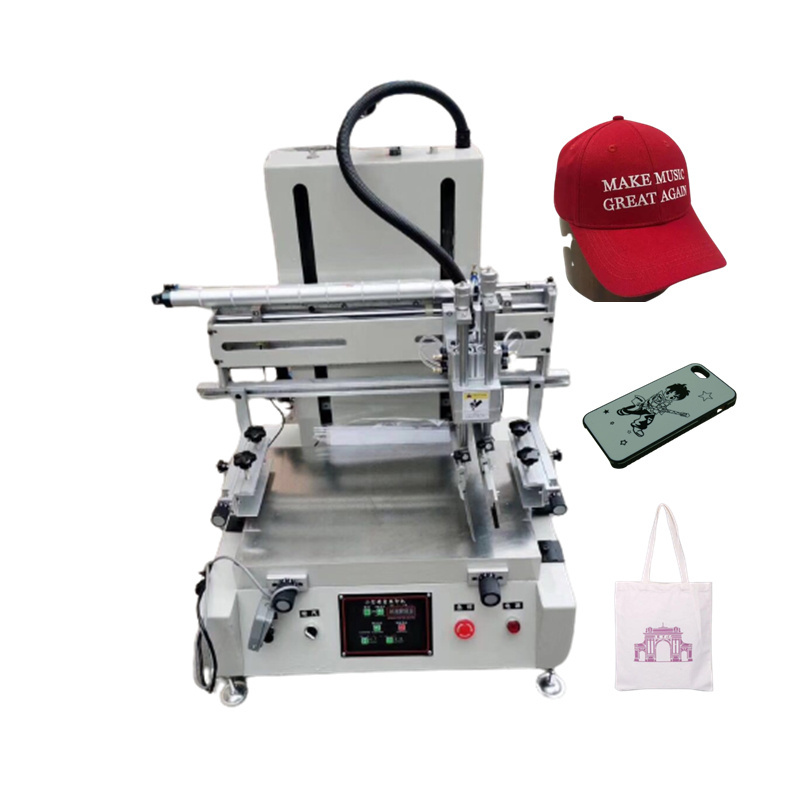

High Efficiency Screen Printer Silicone Glove Screen Printing Machine For T-Shirt
1) the squeegee printing system is designed in rail structure , which ensures extremely stable printing
2) new pneumatically printing head lifting design, provides convenient replacement and cleaning of squeegee, spatula or screen plate .
Features:
3) printing stroke can be adjusted laterally to suit various screen plate sizes.
4) the printing table is equipped with 3 sets of micro-metric adjustment knobs for precision adjustment of printing in vertical, transversal and angular directions . Work table have vacuum or t-shape groove type for options
5) equipped with shock absorber, providing precise and stable operation for multi-color printing .
Product Paramenters
|
Model
|
JW-YS3050T
|
JW-YS3050Y
|
JW-YS4060T
|
JW-YS4060Y
|
|||
|
Type
|
Plate Type
|
Inspiratory type
|
Plate Type
|
Inspiratory type
|
|||
|
Voltage
|
220V
|
|
|
|
|||
|
Working Type
|
pneumatic
|
|
|
|
|||
|
Outer diameter of the frame
|
450*650mm
|
|
550*750mm
|
|
|||
|
Printing Area
|
250*450mm
|
|
350*550mm
|
|
|||
|
Working Pressure
|
5-7Bar
|
|
|
|
|||
|
Speed
|
1200tims/h
|
|
|
|
|||
|
Table Size
|
300*500mm
|
|
400*600mm
|
|
|||
|
Weight
|
100kgs
|
|
120kgs
|
|
|||
