Quick Details
-
Dimension(L*W*H):
-
1.6m-14m/20m
-
Weight:
-
3.8 KG
-
Product name:
-
Fiberglass filter
-
Material:
-
non-woven fabrics
-
Standard size:
-
0.8m-20m-60mm
-
Delivery Time:
-
5-7 days
-
customized:
-
support
-
weight:
-
250g/m²
-
Air Speed:
-
1.3m/s
-
Air Flow:
-
4680m³/h
Quick Details
-
Efficiency:
-
69.4%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Captain
-
Dimension(L*W*H):
-
1.6m-14m/20m
-
Weight:
-
3.8 KG
-
Product name:
-
Fiberglass filter
-
Material:
-
non-woven fabrics
-
Standard size:
-
0.8m-20m-60mm
-
Delivery Time:
-
5-7 days
-
customized:
-
support
-
weight:
-
250g/m²
-
Air Speed:
-
1.3m/s
-
Air Flow:
-
4680m³/h
We are the manufacturer of different kinds of spray booth for 20 years , according to customers requirements , we can design the best solution for you , and show you the 3D drawing , then you can know more clearly about the booth you need .
Pre-filter :
weight: 200g/m²
thickness: 15mm
Air Speed: 0.57m/s
Air Flow: 2052m³/h
Initial Resistance: 15Pa
Final Resistance: 200Pa
Filter Effect: 75.40%
Dust Holding: 276g/m²
Max Temperature: 110℃
Ceiling filter ( cloth back or net back)
weight: 600g/m²
thickness: 20mm
Air Speed: 0.25m/s
Air Flow: 900m³/h
Initial Resistance: 25Pa
Final Resistance: 400Pa
Filter Effect: 97.90%
Dust Holding: 435g/m²
Max Temperature: 120℃

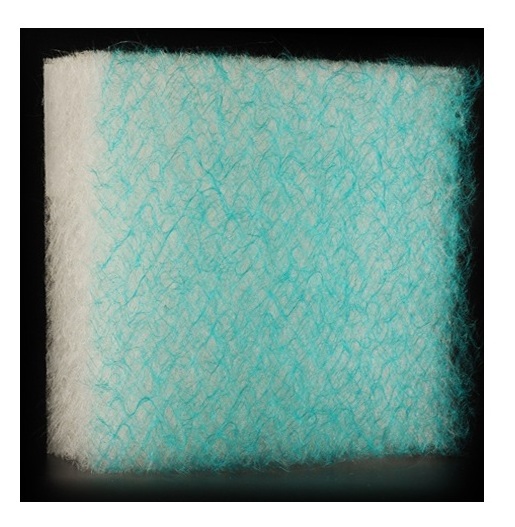

Fiberglass filter :
weight: 250g/m²
thickness: 60mm
Air Speed: 1.30m/s
Air Flow: 4680m³/h
Initial Resistance: 12Pa
Final Resistance: 250Pa
Filter Effect: 69.40%
Dust Holding: 3850g/m²
Max Temperature: 350℃
Activated Carbon Filter:
weight: 300g/m²
thickness: 5mm
Air Speed: 0.2m/s
Air Flow: 720m³/h
Initial Resistance: 10Pa
Final Resistance: 150Pa
Carbon: ≧50%
Benzene Absorb: ≧25wt%
Max Temperature: 150℃
Car spray booth / truck spray booth / Industrial spray booth / Furniture spray booth / Water curtain booth / Open face booth / Powder coating booth / Baking oven / Sandblasting booth / Dust collector / Container spray booth and related products .
All accessories for the spray booth can be provided separately
Main door ; Can de customized as your requirements
Door hinges ;
Service door hinges ;
Pressure lock ;
Grilles ; 1145x745mm ,22.5kg/pc , cold galvanizing or hot galvanizing , can be customzied as your requirements
Ramp ; 1800x630x300mm , Made of 2.3mm thick diamond plate, then do powder coating. The back are made of same material to do support.
Light tube ; The LED lamps we used is famous brand in China . You don't need to change often, it is in good quality.
Wall panel ; Our EPS panel is 14kgs/m³ at least. It is no problem to stand on by 2 men.
Air duct ; Our air duct is made of 1.0mm thick galvanized steel sheet, connected by flange and surface is in diamond plate. The head is rain proof and with anti-bird net.
Burner ;We promise the model we used is real Riello, not fake. No people complain our burner till now.
Heat exchanger : We use 2.0mm thick stainless steel to produce the heat exchanger by arc welding. Though it looks the same from appearance, the thick of material varies a lot.
Infrared lamp ; Good quality From China brand factory
Fan : We have CE certificate, and our motor is copper motor, not aluminum. We use narrow for air intake and wide for exhaust, professional design.
Control box :We set 3 functions for the spray booth, painting, heat painting and baking. Heat painting is used in winter, it can make the room inside warm. We also have the function of blow the heat exchanger to cool after baking. And intake fan works firstly 5 seconds than the exhaust fan to give fresh air. Our control box also have overload protection, phase-break protection. And the main electric parts are from SCHNEIDER Or an equivalent brand .
so on
Main door ; Can de customized as your requirements
Door hinges ;
Service door hinges ;
Pressure lock ;
Grilles ; 1145x745mm ,22.5kg/pc , cold galvanizing or hot galvanizing , can be customzied as your requirements
Ramp ; 1800x630x300mm , Made of 2.3mm thick diamond plate, then do powder coating. The back are made of same material to do support.
Light tube ; The LED lamps we used is famous brand in China . You don't need to change often, it is in good quality.
Wall panel ; Our EPS panel is 14kgs/m³ at least. It is no problem to stand on by 2 men.
Air duct ; Our air duct is made of 1.0mm thick galvanized steel sheet, connected by flange and surface is in diamond plate. The head is rain proof and with anti-bird net.
Burner ;We promise the model we used is real Riello, not fake. No people complain our burner till now.
Heat exchanger : We use 2.0mm thick stainless steel to produce the heat exchanger by arc welding. Though it looks the same from appearance, the thick of material varies a lot.
Infrared lamp ; Good quality From China brand factory
Fan : We have CE certificate, and our motor is copper motor, not aluminum. We use narrow for air intake and wide for exhaust, professional design.
Control box :We set 3 functions for the spray booth, painting, heat painting and baking. Heat painting is used in winter, it can make the room inside warm. We also have the function of blow the heat exchanger to cool after baking. And intake fan works firstly 5 seconds than the exhaust fan to give fresh air. Our control box also have overload protection, phase-break protection. And the main electric parts are from SCHNEIDER Or an equivalent brand .
so on
