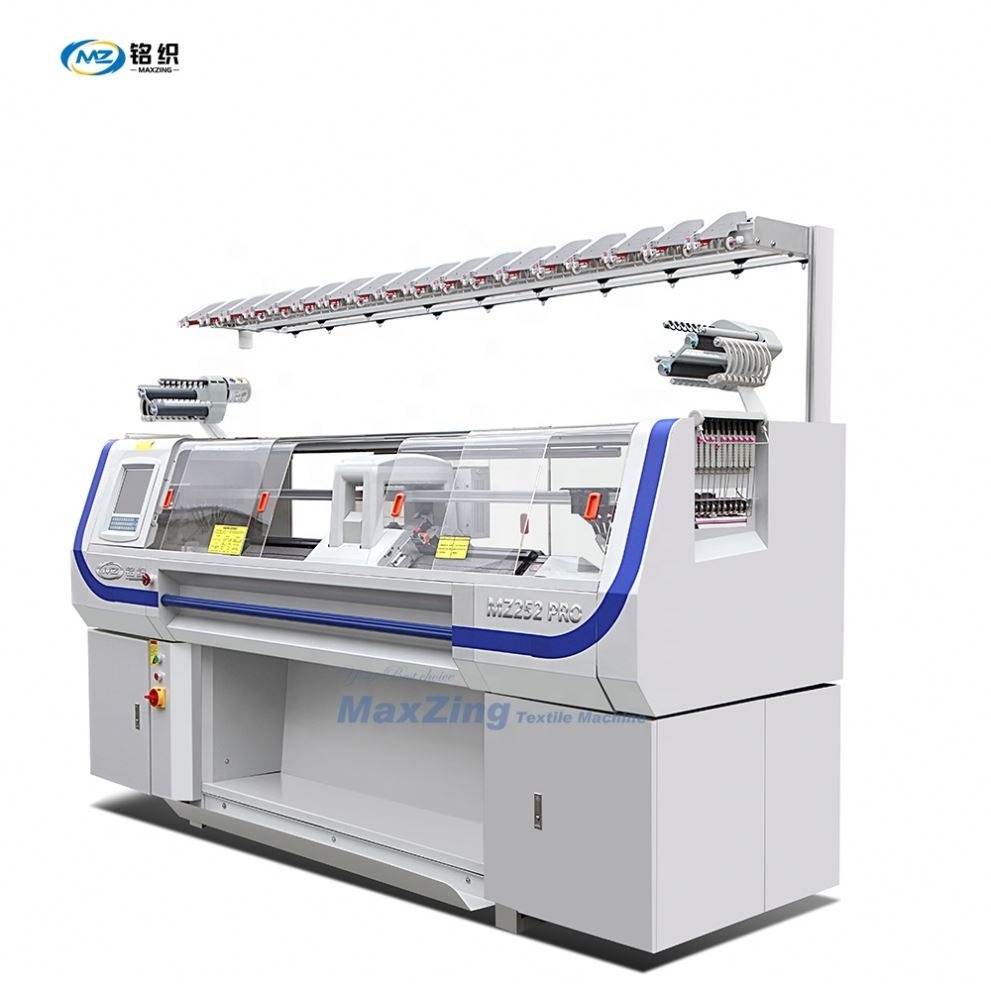

intarsia pattern woolen sweater flat knitting machine computerized
intarsia pattern woolen sweater flat knitting machine computerized
intarsia pattern woolen sweater flat knitting machine computerized
intarsia pattern woolen sweater flat knitting machine computerized
intarsia pattern woolen sweater flat knitting machine computerized
intarsia pattern woolen sweater flat knitting machine computerized

intarsia pattern woolen sweater flat knitting machine computerized

FOB Reference Price: Get Latest Price
≥1 Sets
US $8500
≥4 Sets
US $8300
≥8 Sets
US $8000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Knitting Method:
Double
Computerized:
Yes
Gauge:
1.5 GG, 3 GG, 7 GG, 12 GG, 14 GG, 2 GG, 16 GG, 9 GG, 5 GG, 10GG, 2.5GG, 18GG, 16GG, 8GG, 3-5-7 multi-gauge, 8-10-12 multi-gauge
Knitting width:
52 inch
Place of Origin:
Jiangsu, China
Brand Name:
MAXZING
Power:
1200 W, AC 220V/380V
Weight:
700 KG
Dimension(L*W*H):
2.75*1*1.6 meter
Sinker system:
The latest singker system for motor control
Frequency:
50HZ/60HZ 1.5kVA
Product Name:
Automatic computerized flat knitting machine/single/double system
Name:
Flat knitting machine
Drive System:
Belt drive. AC servo motor. No lubrication necessary.
Size:
36,52,60,72,80,100,120 Inch
Guage:
1.5G,2G,3G,3.5G,5G,57G,7G,10G,12G,14G,16G

Quick Details

Type:
jacquard
Production Capacity:
100set/Moth
Knitting Style:
Flat
Knitting Method:
Double
Computerized:
Yes
Gauge:
1.5 GG, 3 GG, 7 GG, 12 GG, 14 GG, 2 GG, 16 GG, 9 GG, 5 GG, 10GG, 2.5GG, 18GG, 16GG, 8GG, 3-5-7 multi-gauge, 8-10-12 multi-gauge
Knitting width:
52 inch
Place of Origin:
Jiangsu, China
Brand Name:
MAXZING
Power:
1200 W, AC 220V/380V
Weight:
700 KG
Dimension(L*W*H):
2.75*1*1.6 meter
Sinker system:
The latest singker system for motor control
Frequency:
50HZ/60HZ 1.5kVA
Product Name:
Automatic computerized flat knitting machine/single/double system
Name:
Flat knitting machine
Drive System:
Belt drive. AC servo motor. No lubrication necessary.
Size:
36,52,60,72,80,100,120 Inch
Guage:
1.5G,2G,3G,3.5G,5G,57G,7G,10G,12G,14G,16G
Product Overview

MaxZing Double system\Three system Flat knitting machine

MaxZing Brand Have Single system/Double system/Three System.Guage types including1.5G\2G\3G\3.5G\5G\57G\7G\8G\10G\12G\14G\16G. Suitable for wool, cashmere, cotton, chemical fiber, silk, as well as all kinds of blended yarn. It can be used for knitting: sweaters, hats, scarves, shoe uppers, medical products, blankets, handicrafts, car cushions, summer mats, etc .

Quality is the most important!!!
FEATURES AT A GLANCE
High Speed system
Dynamic Stitch
Motor Contral Cross sinker
Double racking
Zero waiting of racking
Wide guage
Stitch Press Technology
MZ252
MZ252 PRO
MZ252 ULTRA
Machine Detail
No
Item
Data
1
Machine system
HENGQIANG , MAIHONG  ,  RAYNENG
2
Machine size
36Inch\ 52Inch \60Inch \72Inch\ 80Inch \100Inch \120Inch
3
Knitting function
knitting single or double jersey,full needles,irregular jacquard,intarsia,cables,pointel fabirc
4
Data input
USB memory interface.
5
Control unit
Built-in controller. Stored program for flat knitting machine.
6
Back-up power
Power supply for resuming knitting after power failure.
7
Power
AC 220V/380V FREQUENCY:50HZ/60HZ 1.5kVA
8
PACKING SIZE
2.85*1.1*1.8 meter    1270KG
TOP Sensor
The upper tension device adopts an operation mode that can quickly and easily thread the yarn. During the knitting process, when a big knot is detected, the machine will stop; when a small knot is detected, the machine head will slow down, thereby enhancing
quality management.
Yarn Feeder
We used the Intarsia yarn feeder combination, Two yarn feeding pulleys are placed in each set of yarn feeders to ensure that the yarn enters smoothly without breaking
we use yarn feeders of different structures for the shoe upper machine and the sweater machine.
TAKE DOWN DEVICE
Double stepper motor driven roller
1/ Use two pc 20N / m motors drive the roller
2/ Double-row chain, long-term use will not damage
3/ Planetary gearbox
Knitting bed Shaker Device
Knitting bed shaker with new structure
The special motor-type shaker increases the range of the shaker of the front and rear needle beds, and the short-speed shaker
makes the control and knitting performance of the shaker better. And on the basis of not changing the original size of the flat
knitting machine, the allowable space of the shaker is greatly expanded. In this way, it is easy to realize a new pattern of free
play of 10 twists or multi-stage shakers.

KNITTING HEAD
In the rapid turning head system, the overall mechanism of the head is improved, thereby speeding up the turning speed of each
row of the head, and greatly improving the production efficiency. In a specific knitting range, the larger and heavier machine
head needs more space at each end of the flat knitting machine for deceleration, rotation, and acceleration, so the machine head runs at the actual part of the set speed The share becomes very limited; on the contrary, the small and light head requires less space for the head to rotate, and can run more space at the set speed, which means that each row can be knitted faster, thereby increasing efficiency and productivity.



Wide guage
The effect of fine needle to thick needle can be knit on a single machine without wasting a lot of time for needle type
conversion. This not only saves the investment in multiple models with different needle counts, but also does not need to replace parts. As long as one flat knitting machine can provide different stitch length options, it can adapt to changes in seasons and trends at any time.
Automatic fuel supply system
The automatic oil supply system can automatically add lubricating oil to the required parts. Because the amount of oil required is controlled by the electronic head, coupled with the use of Shima refined pure lubricant, it can further protect the sinker and
pins and other parts, reduce wear and tear, and reduce the burden of maintenance. In addition, as long as the pull rod is pulled,
the oil can be automatically supplied to the required parts of the fuselage, and the oil can be supplied appropriately according to the preset time period, which can save a lot of oil and prevent excess oil from getting on the product. on.
Machine system
Using high-speed system, the maximum knitting speed of the machine head is 1.7 m/s, with the highest speed machine in China.
The system supports English, Russian, Spanish, Turkish, Arabic, French and other national languages.
The system supports SHIMA and STOLL, HENGQIANG, RAYNENG pattern program direct input without any changes
Stitch Press Technology
Assistance to Sinker system
1/ 4 left and right presser feet work simultaneously
2/Use ultra-high speed motor
3/ Part of the pattern can achieve zero waste yarn function
4/ Can be used for sweaters, hats, scarves, vamp knitting

Needle impact sensor
Yarn Roller
Fault alarm buzzer
Yarn feeder
transmission
Yarn input device
Knitting head
Master switch
Knitting BED
Maxzing Factory
The company integrates production, training, accommodation (customers), display, and office. It is the only factory in China that uses assembly lines to produce computerized flat knitting machines.
Packaging And Deliver
Anti-rust treatment
Pack in  wooden box
Packed wooden box
Contact
Wechat
+86 15895593937
Whatsapp
+86 15895593937
Mail
AX-LEE@139.COM
QQ
1061080077
Web
www.textil100.com
FAQ
Q: How to buy the machine?
A: Please contact the sales manager, after getting an accurate quotation, you can purchase through credit guarantee orders
Q: About after-sales service? A: We provide a one-year warranty for each machine (starting from the date of receipt), as well as online technical guidance and online design services. If necessary, we can send technicians to install, teach, debug, etc.
Q: After-sales technician dispatch charge standard
A: Air ticket + salary + visa fee
Q: What type of machine we have?
A: We have single system, double system, triple system, all models of computerized flat knitting machines, the size includes 36-120
inches
