Quick Details
-
Model Number:
-
SX550MT/SX650MT/SX750MT/SX850MT/SX860MT/SX980MT
-
Weight:
-
85kg
-
Packing Dimension:
-
1865*1235*255mm
-
Product Dimension:
-
1703.5*1019*95mm
-
Product name:
-
Interactive Whiteboard
-
Touch Type:
-
10/20 Points Infrared or Catpactive Touch Screen
-
Material:
-
Aluminum Alloy Frame
-
Size:
-
55/65/75/85/86/98/100/110inch
-
Panel Brand:
-
LG/AUO/CMO/BOE/CSOT
-
Operating system:
-
AndroidMAC/Linux/Windows XP/VISTA/7/8/10
-
Writing Mothed:
-
Fingers, stylus, gloves or any other opaque material medium
-
Touch Accuracy:
-
± 2mm on more than 95% touch area
Quick Details
-
Panel Size:
-
75inches
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GOLD-LUCKY/SEEWORLD/KINGSTION/OEM
-
Model Number:
-
SX550MT/SX650MT/SX750MT/SX850MT/SX860MT/SX980MT
-
Weight:
-
85kg
-
Packing Dimension:
-
1865*1235*255mm
-
Product Dimension:
-
1703.5*1019*95mm
-
Product name:
-
Interactive Whiteboard
-
Touch Type:
-
10/20 Points Infrared or Catpactive Touch Screen
-
Material:
-
Aluminum Alloy Frame
-
Size:
-
55/65/75/85/86/98/100/110inch
-
Panel Brand:
-
LG/AUO/CMO/BOE/CSOT
-
Operating system:
-
AndroidMAC/Linux/Windows XP/VISTA/7/8/10
-
Writing Mothed:
-
Fingers, stylus, gloves or any other opaque material medium
-
Touch Accuracy:
-
± 2mm on more than 95% touch area

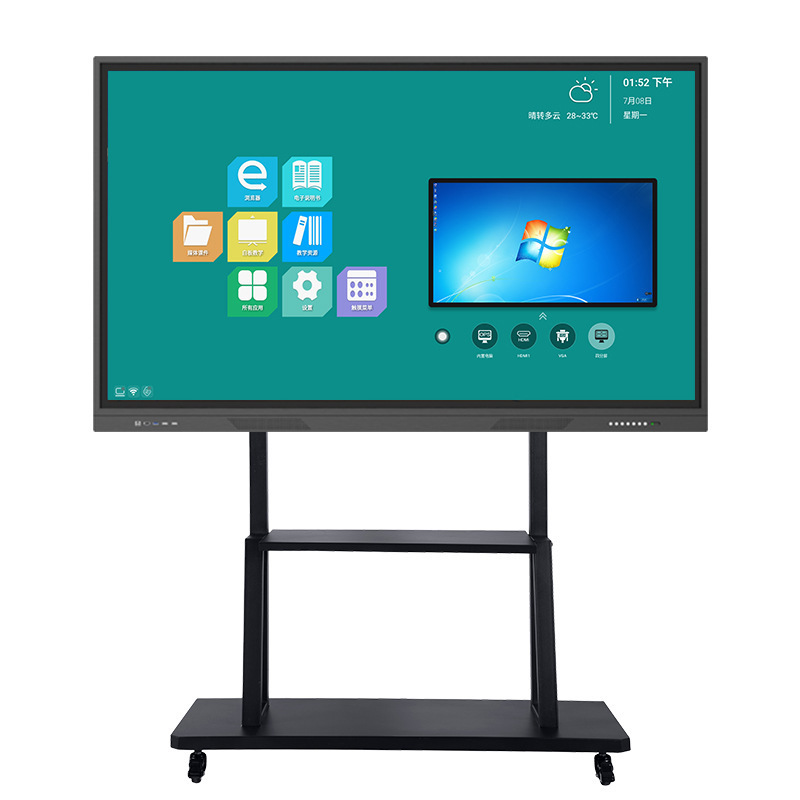

| Smart Interactive Whiteboard | ||||||||
| Panel | Panel Size | 50" | 55" | 65" | 70" | 75" | 86" | 100" |
| Panel Brand | LG/AUO/CMO/BOE/CSOT | |||||||
|
Blacklight Type |
DLED | |||||||
| Resolution | 3840x2160 | |||||||
|
Response Time |
5ms (typ.) | |||||||
|
Visual Angle |
178°(H)/178°(V) | |||||||
| Colour | 1.07G(8/10bit) | |||||||
| Life(typ) | 600,000 hrs (min.) | |||||||
|
Contrast (typ) |
5000:1 | |||||||
|
Brightness (cd/m2) |
330±30 | 330±30 | 350±30 | 350±30 | 350±30 | 350±30 | 350±30 | |
|
Display Area |
1095.84 *616.41 |
1209.6*680.4 |
1428.48 *803.52 |
1541*865 |
1649.66 *927.94 |
1895.04 *1065.96 |
2203*1240 | |
| PCB Solutions | Teaching Type | MSD6A658, A53+Mail-G450, 1.5GHz, Android 6.0, 1G RAM+8G ROM | ||||||
| Conference Type | MSD648, Cortex A53+T720MP2,1.5GHz, Android 6.0, 2G RAM+8/16/32G ROM | |||||||
| Input Port | TV | *1 | *1 | *1 | *1 | *1 | *1 | *1 |
|
MINI- YPBPR |
*1 | *1 | *1 | *1 | *1 | *1 | *1 | |
|
MINI- AV |
*1 | *1 | *1 | *1 | *1 | *1 | *1 | |
| PC AUDIO | *1 | *1 | *1 | *1 | *1 | *1 | *1 | |
| VGA | *1 | *1 | *1 | *1 | *1 | *1 | *1 | |
| USB 2.0 | *2 (Front 1) | *2 | *2 | *2 | *2 | *2 | *2 | |
| ALL-USB Input | 0 | *2 (Front) | *3 (Front) | *3 (Front) | *3 (Front) | *3 (Front) | *2 (Front) | |
| PC USB 3.0 Input | *1 (Front) | *1 (Front) | *1 (Front) | *1 (Front) | *1 (Front) | *1 (Front) | *1 (Front) | |
|
HDMI Input |
*3 (Front 1) | *3 (Front 1) | *3 (Front 1) | *3 (Front 1) | *3 (Front 1) | *3 (Front 1) | *3 (Front 1) | |
|
TF for Android |
*1 | *1 | *1 | *1 | *1 | *1 | *1 | |
| RS-232 | *1 | *1 | *1 | *1 | *1 | *1 | *1 | |
| RJ-45 | *1 | *1 | *1 | *1 | *1 | *1 | *1 | |
|
Output Port |
Earphone Out |
*1 | *1 | *1 | *1 | *1 | *1 | *1 |
|
MINI- AV Out |
*1 | *1 | *1 | *1 | *1 | *1 | *1 | |
| SPIDF | *1 | *1 | *1 | *1 | *1 | *1 | *1 | |
|
Touch- USB out (Type B) |
*2(Front 1) | *2(Front 1) | *2(Front 1) | *2(Front 1) | *2(Front 1) | *2(Front 1) | *2(Front 1) | |
| Language | OSD Language | Chinese, English etc Multi-language | ||||||
|
Touch Info |
Touch Technology | Infrared touch | ||||||
|
Touch points |
10/20 Points | |||||||
| Response Time | First click<16ms, Repeated click<6ms | |||||||
|
Input Method |
Fingers, stylus, gloves or any other opaque material medium | |||||||
| System Stability | No drift,no change with the environment | |||||||
| Min Touch Diameter | 5 mm | |||||||
| Touch Accuracy | ± 2mm on more than 95% touch area | |||||||
| Touch life times | Over 60,000,000 times | |||||||
| Tempered Glass | Glass type | 4mm tempered glass AG, (AR Optional) | ||||||
|
Luminou -sness |
100% without Glass,90% with AG Glass, 92% with AR Glass | |||||||
| PC info | CPU | i3/i5/i7 | ||||||
| RAM | DDR3 4G (Support Max to 8G) | |||||||
| ROM | SSD 128G (Optional: 256G, or 500G, 1T) | |||||||
| Interface | HDMI×1,VGA×1,USB2.0×2,USB3.0×2,RJ45×1,PCAUDIO×1,MIC×1,RS232×1 | |||||||
| Ethernet | Gigabit LAN(RTL8111E) | |||||||
| Wireless | Support Wifi &Blutooth(Optional) | |||||||
| AUDIO | Realtek® High Definition Audio | |||||||
| Working Condition | Temperature: -20~60℃; Humidity: 0~85%RH | |||||||
| Power | DC19V 4.7A | |||||||
| Power | Input Voltage | AC100 V ~ 240 V, 50-60 Hz | ||||||
| Power Consumption | ≤130W | ≤150W | ≤250W | ≤270W | ≤300W | ≤350W | ≤380W | |
| Standby | ≤0.5W | ≤0.5W | ≤0.5W | ≤0.5W | ≤0.5W | ≤0.5W | ≤0.5W | |
|
Environm -ental |
Working temperature | 0℃~40℃ | ||||||
| Storage temperature | -20℃~55℃ | |||||||
| Storage humidity | 10%~90% RH Non-Condensing | |||||||
| Working humidity | 20%~80% RH Non-Condensing | |||||||
|
Package Details |
Accessory | Remote*1, Power Line*1, Touch Pen*1, Qualification*1, Warranty Card*1, Wall Mount*1 | ||||||
| Net weight | 36KG | 27KG | 44KG | 50KG | 65KG | 76KG | 128KG | |
| Groos weight | 42KG | 35KG | 49KG | 65KG | 85KG | 97KG | 190KG | |
|
Monitor Dimension (mm) |
1140*703 *63 |
1263.6*771.3 *96 |
1486.2*894.5 *96 |
1609*980 *98 |
1703.5*1019 *95 |
1990*1213.4 *96 |
2275*1363 *120 |
|
|
Packing Dimension (mm) |
1300*850 *170 |
1390*880 *220 |
1720*1125 *210 |
1755*1130 *225 |
1865*1235 *255 |
2150*1342 *260 |
2435*1490 *275 |
|
1. Payment Terms :
* For Smaple: 100% in advance. ( T/T, Paypal, Western Union, Cash.)
* For Bulk Orders: 30% deposit in advance by T/T ,70% after finished before shipment. ( B/L, L/C, Cash also Available after discussion Permit )
2. Packing: By Box, Inner: Polyfoam, Plastic Bags, Samples for Wooden Packaging Protect.
3. Delivery Date: Samples within 7 days, Bulk Within 35 days.
4. Shipping: By DHL, FedEx, TNT, UPS etc Express, By Air, By Sea.
Apply to Home, Hotel, School, Exibition, Meeting, Hospital, Beauty Institutions etc.
