Quick Details
-
Application:
-
Exterior
-
Design Style:
-
Traditional
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HAOKE
-
Model Number:
-
ZLP500/630/800/1000
-
Material:
-
Steel, , Aluminum alloy
-
Color:
-
Black\gray\white\yellow\red\green or customized as required
-
Other names:
-
Cradle ,Gondala, swing stage
-
Voltage:
-
220V/380V/415V/440V,3phase: 50HZ/60HZ
-
Surface treatment:
-
Painted, hot galvanized
-
Lifting height:
-
300 Maximum
-
Model of Hoist:
-
LTD6.3,LTD8.0,LTD10.0
-
Rated load:
-
500kg/ 630kg/ 800kg/ 1000kg
-
Lifting Speed:
-
8m/min~11m/min
-
MAX Lifting Height:
-
200m
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
total solution for projects
-
Application:
-
Exterior
-
Design Style:
-
Traditional
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HAOKE
-
Model Number:
-
ZLP500/630/800/1000
-
Material:
-
Steel, , Aluminum alloy
-
Color:
-
Black\gray\white\yellow\red\green or customized as required
-
Other names:
-
Cradle ,Gondala, swing stage
-
Voltage:
-
220V/380V/415V/440V,3phase: 50HZ/60HZ
-
Surface treatment:
-
Painted, hot galvanized
-
Lifting height:
-
300 Maximum
-
Model of Hoist:
-
LTD6.3,LTD8.0,LTD10.0
-
Rated load:
-
500kg/ 630kg/ 800kg/ 1000kg
-
Lifting Speed:
-
8m/min~11m/min
-
MAX Lifting Height:
-
200m
Rope Access Equipment/Swing Stage Scaffolds/Construction Scaffold Stage
Main usage:
a. cleaning work platform of building walls,glasses,external walls,large chimney,large tanks and dams etc.
b. painting and decoration work platform of building walls,glasses, external walls,large chimney,large tanks and dams etc.
c. repair and maintenance work platform of building walls,glasses,external walls,large chimney,large tanks and dams etc.
d. widely applied to various works of building walls,glasses,external walls,large chimney,large tanks and dams etc.
Technical parameters of suspended working platform
|
Property Model No. |
ZLP500 |
ZLP630 |
ZLP800 |
ZLP1000 |
|
|
Rated load( kg ) |
500 |
630 |
800 |
1000 |
|
|
Lifting speed( m/min ) |
9~ 11 |
9~ 11 |
8~ 10 |
8~10 |
|
|
Motor power( kw ) |
2×1.5 50HZ/60HZ |
2×1.5 50HZ/60HZ |
2×1.8 50HZ/60HZ |
2 × 2.2 50HZ/60HZ |
|
|
Brake torque( Km ) |
16 |
16 |
16 |
16 |
|
|
Steel rope angle adjusting range(°) |
3°- 8° |
3°- 8° |
3°- 8° |
3°- 8° |
|
|
Distance between two steel rope( mm ) |
≤100 |
≤100 |
≤100 |
≤100 |
|
|
Rated stretch of front beam( mm ) |
1500 |
1500 |
1500 |
1500 |
|
|
Suspending platform
|
Locking |
Aluminum alloy |
Aluminum alloy |
Aluminum alloy |
Aluminum alloy |
|
Nr.Of platform rack |
Single rack |
Single rack |
Single rack |
Single rack |
|
|
Nr.Of platform |
2 |
3 |
3 |
3 |
|
|
L×W×H( mm ) |
(2 5 00×2)×690×1 300 |
(2000×3)×690×1 300 |
(2500×3)×690×1 300 |
(2500×3)×690×1 300 |
|
|
Weight( kg ) |
350 Kg |
375 Kg |
410 Kg |
455kg |
|
|
Suspending mechanism(kg) |
2×175 Kg |
2×175 Kg |
2×175 Kg |
2×175 Kg |
|
|
Counterweight(kg) optional |
25×30pcs |
25×36pcs |
25×40pcs |
25×4 4 pcs |
|
|
Diameter of steel rope(mm) |
8.3 |
8.3 |
8.6 / 9.1 |
8.6 / 9.1 |
|
|
Max Lifting height(m) |
300 |
300 |
300 |
300 |
|
|
Motor rotation speed(r/min) |
1420 |
1420 |
1420 |
1420 |
|
|
Voltage(v) 3PHASES |
220V/380V/ 415V |
220V/380V/ 415V |
220V/380V/ 415V |
220V/380V/ 415V |
|

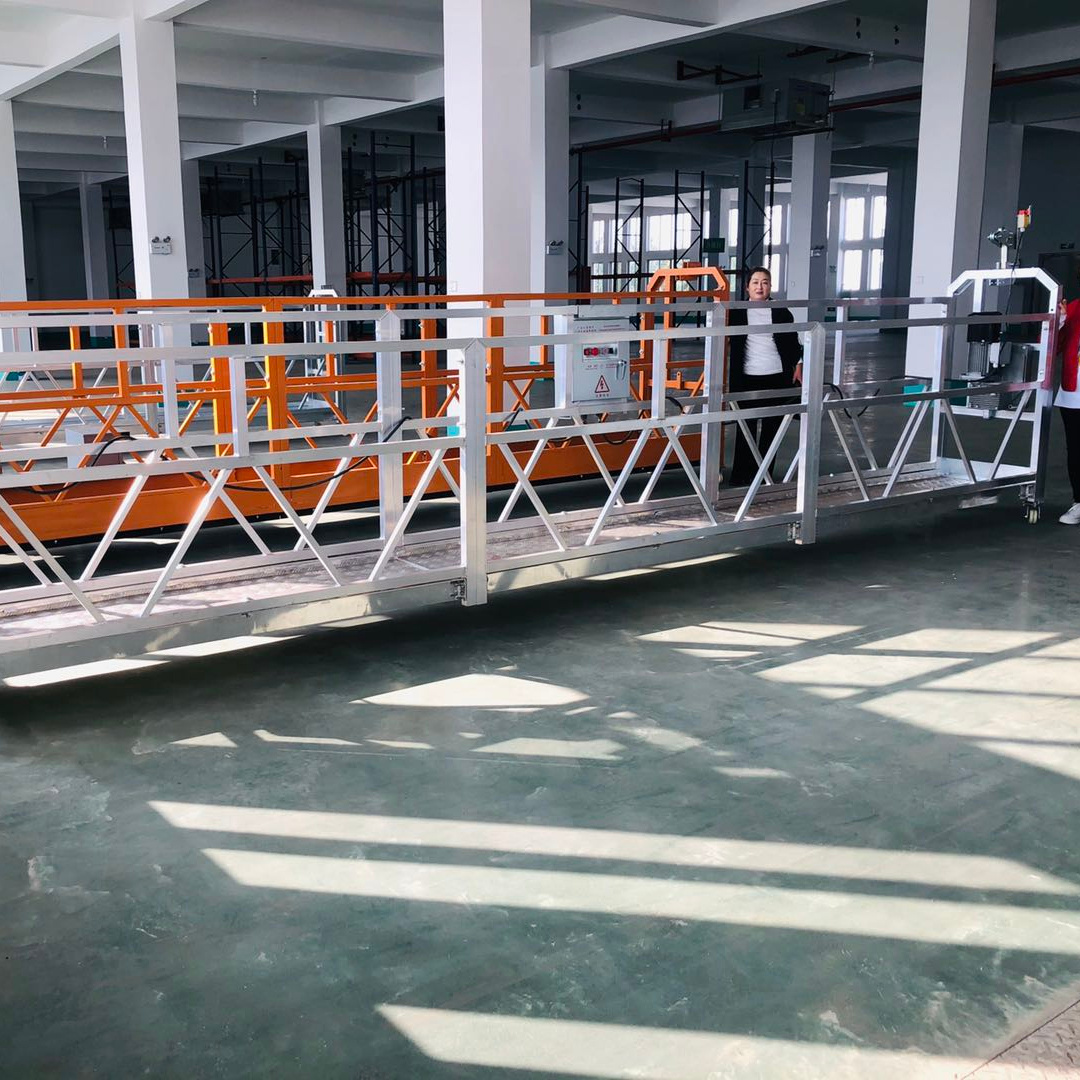

1. Platform(basket): Steel or Aluminum Alloy (painted or hot galvanized)
2. Suspension Mechanism: Steel (painted or hot galvanized)
3. Electric hoists:LTD6.3 , LTD8 .0, LTD10.0
4. Safety Lock: LS30
5. Electric control box: Along with hoists
6. Steel wire rope: 8.3mm ,8.6mm or 9.1mm
7. Safety rope: 18mm,20mm
8. Electric cable: 3*2.5+2*1.5
9. Counterweights: Cement, cement with steel cover & Iron casting counterweight
10. Wheels both under suspension mechanism & platform available;
11. Platform: We can meet your requirements on different length, such as 2m,3m,4m,6m,7.5m....12m maximum .
12. Lifting height: 300m maximum .
Components details:
1). More than 9 years experience in suspended platform industry.
2). Five to seven working days fast and prompt delivery to every corner of the world.
3). One year warranty with nice after-sale services.
4). CE, ISO & TUV Certification available.
5). Customized service is available, including length, shape, color, design, depend on your idea!
