Quick Details
-
Material:
-
customized, BK7quartz K9 Sapphire
-
Power:
-
power
-
Voltage:
-
220
-
Product name:
-
Multi-Shape Optical Windows
-
Size:
-
Custom Size
-
MOQ:
-
10 Piece
-
Coating:
-
Customer Demands
-
Thickness Tolerance:
-
0.02mm
-
Surface quality:
-
40/20-20/10
-
Application:
-
Optical Area
-
Thickness:
-
0.1-100mm
-
Shape:
-
Customer Demands
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
WQ
-
Model Number:
-
WQ-windows
-
Material:
-
customized, BK7quartz K9 Sapphire
-
Power:
-
power
-
Voltage:
-
220
-
Product name:
-
Multi-Shape Optical Windows
-
Size:
-
Custom Size
-
MOQ:
-
10 Piece
-
Coating:
-
Customer Demands
-
Thickness Tolerance:
-
0.02mm
-
Surface quality:
-
40/20-20/10
-
Application:
-
Optical Area
-
Thickness:
-
0.1-100mm
-
Shape:
-
Customer Demands
Product Paramenters

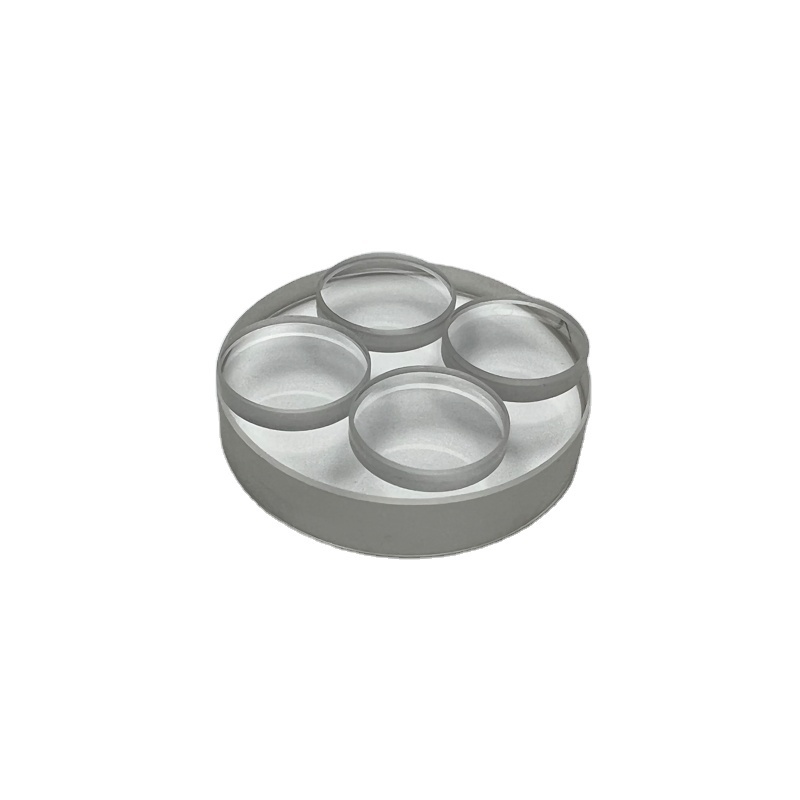

Optical Glass Protective Window
Optical Glass Protective Window
is one of the basic optical components in optics, and it is an optical flat plate that protects electronic components/sensors/semiconductor components in the optical path. The window does not change the magnification of the optics and only affects the optical path in the optical path.
The substrate can be
K9/BK7/CaF2/BaF2/Fused Silica/MgF2/Sapphire
and you can customize any shape you like .
We can customize windows of various shapes, materials, and transmittance according to your drawings or requirements. Please feel free to contact us.
|
Parameters
|
|
|
|
Substrate
|
K9 Quartz CaF2 CVDZnSe
|
|
|
Diameter
|
customized
|
|
|
Dimension tolerance
|
±0.02mm
|
|
|
Thicknesses
|
0.12-60mm
|
|
|
Thickness tolerance
|
±0.02mm
|
|
|
Surface quality (scratch & dig)
|
60-40, 40-20, or better
|
|
|
Surface accuracy
|
λ/2, λ/4 or better
|
|
|
Bevel
|
0.1~0.3mm x 45 degree
|
|
|
Clear aperture
|
>85%,>90%
|
|
|
Coating
|
AR coating or customized
|
|
