Quick Details
-
Product name:
-
anti static electric electrostatic electricity charge field sensor
-
Power:
-
50W/250W
-
Input Voltage:
-
AC 220V /50Hz or 110V/60 Hz
-
ion balance:
-
≤|±30V|
-
discharge speed:
-
≤2S
-
Certificate:
-
CE Certification
-
Warranty:
-
1 Year
-
MOQ:
-
1 Piece
-
Delivery time:
-
Within 3 Working Days
-
Size:
-
Customize length
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
AP&T
-
Model Number:
-
AP-YV3302
-
Product name:
-
anti static electric electrostatic electricity charge field sensor
-
Power:
-
50W/250W
-
Input Voltage:
-
AC 220V /50Hz or 110V/60 Hz
-
ion balance:
-
≤|±30V|
-
discharge speed:
-
≤2S
-
Certificate:
-
CE Certification
-
Warranty:
-
1 Year
-
MOQ:
-
1 Piece
-
Delivery time:
-
Within 3 Working Days
-
Size:
-
Customize length

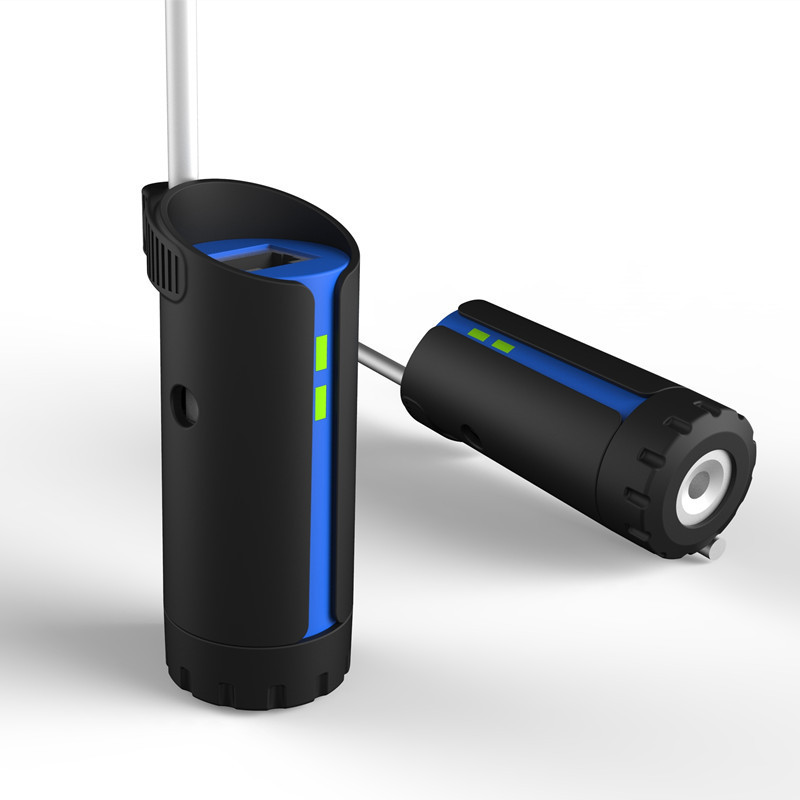

AP-YV3302-1 esd anti static electric electrostatic electricity charge field sensor
I. Product Overview
AP-YV3302H electrostatic sensor is a detecting instrument developed and produced by Anping Company to detect the static voltage on the surface of an object with static electricity, which adopts the non-contact measurement technology to minimize the impact of the detecting instrument on the electrostatic field on the surface of the object and ensure the accuracy of measurement.
II. Scope of Application
It can be widely applied in the industries such as electronics, photoelectricity and plastics.
III. Product Features
1. With comfortable feel and beautiful appearance.
2. Detection distance can be selected via dial switch.
3. Wide detection potential range and high detection precision.
4. Alarm threshold can be set and red light alarm indicatesexceeding threshold.
5. High-definition and all-dimensional LCD data display terminal.
6. Monitoring data can be transmitted to PC in real time.
7. Conformable for operation and convenient for use.
IV. Product Parameters and Technical Functions
1. Performance parameters
1). Technical specifications :
|
No. |
Technical specifications |
|
|
1 |
Working voltage |
DC8-24V |
|
2 |
Working current |
<20mA |
|
3 |
Vibration |
< 1KHz |
|
4 |
Noise |
< 5dB |
|
5 |
Signal output |
RS485 |
|
|
|
NPN (Collector control, 24/100mA) |
|
6 |
Communication distance |
< 500m |
|
7 |
Alarm indication |
Red light LED |
|
8 |
Threshold setting |
±100V (default) |
|
9 |
Alarm range |
±50→±5000V |
|
10 |
Detection angle |
< 15° |
|
11 |
Startup stand-by time |
5s |
|
12 |
Infrared control distance |
1m |
2). The measurement range of static voltage gear and minimum resolution corresponding to each measuring distance:
\
