Quick Details
-
Voltage:
-
220/380v
-
Power:
-
1.5/1.1
-
Dimension(L*W*H):
-
520*250*555
-
Weight:
-
400 KG
-
Machinery Function:
-
Multifunction
-
Output product name:
-
Peanut Butter Ketchup Chili Sauce Almond Butter
-
Capacity:
-
12.5kg/h
-
Quality:
-
High quality
-
MOQ:
-
1
-
Product name:
-
Peanut Butter Colloid Mill
-
Application:
-
Making Nut Peanut Butter
-
Product feature:
-
High efficiency Easy operation Save time Clean and
-
Material:
-
304 Stainless Steel
Quick Details
-
Marketing Type:
-
Food Processing Machine, Hot Product
-
Brand Name:
-
hanbeter
-
Place of Origin:
-
China, China
-
Voltage:
-
220/380v
-
Power:
-
1.5/1.1
-
Dimension(L*W*H):
-
520*250*555
-
Weight:
-
400 KG
-
Machinery Function:
-
Multifunction
-
Output product name:
-
Peanut Butter Ketchup Chili Sauce Almond Butter
-
Capacity:
-
12.5kg/h
-
Quality:
-
High quality
-
MOQ:
-
1
-
Product name:
-
Peanut Butter Colloid Mill
-
Application:
-
Making Nut Peanut Butter
-
Product feature:
-
High efficiency Easy operation Save time Clean and
-
Material:
-
304 Stainless Steel
| Product Features | |
| Application fields | Commercial catering, Fruit processing plant, Meat processing plants, Vegetable processing plant, Seasoning plant, Snack food factory |
| Dimension(L*W*H) | 520*250*555 |
| Output product name | Peanut Butter, Ketchup, Chili Sauce, Almond Butter |
| Warranty of core components | 1 Year |
| Capacity | 12.5kg/h |
| Quality | High quality |
| Voltage | 220/380v |
| Machinery Test Report | Provided |
| Condition | New |
| Place of Origin | China |
| Warranty | 1 Year, 1 Year Guarantee |
| Product feature | High efficiency, Easy operation, Save time, Clean and sanitary |
| Showroom Location | None |
| Material | 304 Stainless Steel |
| Raw material | Vegetables, Fruit, Nuts, Soybean |
| Weight | 50 KG |
| MOQ | 1 |
| Brand Name | hanbeter |
| Package Type | Wooden case |
| Video outgoing-inspection | Provided |
| Type | Food Processing Machine |
| Applicable Industries | Hotels, Food & Beverage Factory, Restaurant, Food Shop, Food & Beverage Shops |
| Marketing Type | Hot Product |
| Core Components | Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump |

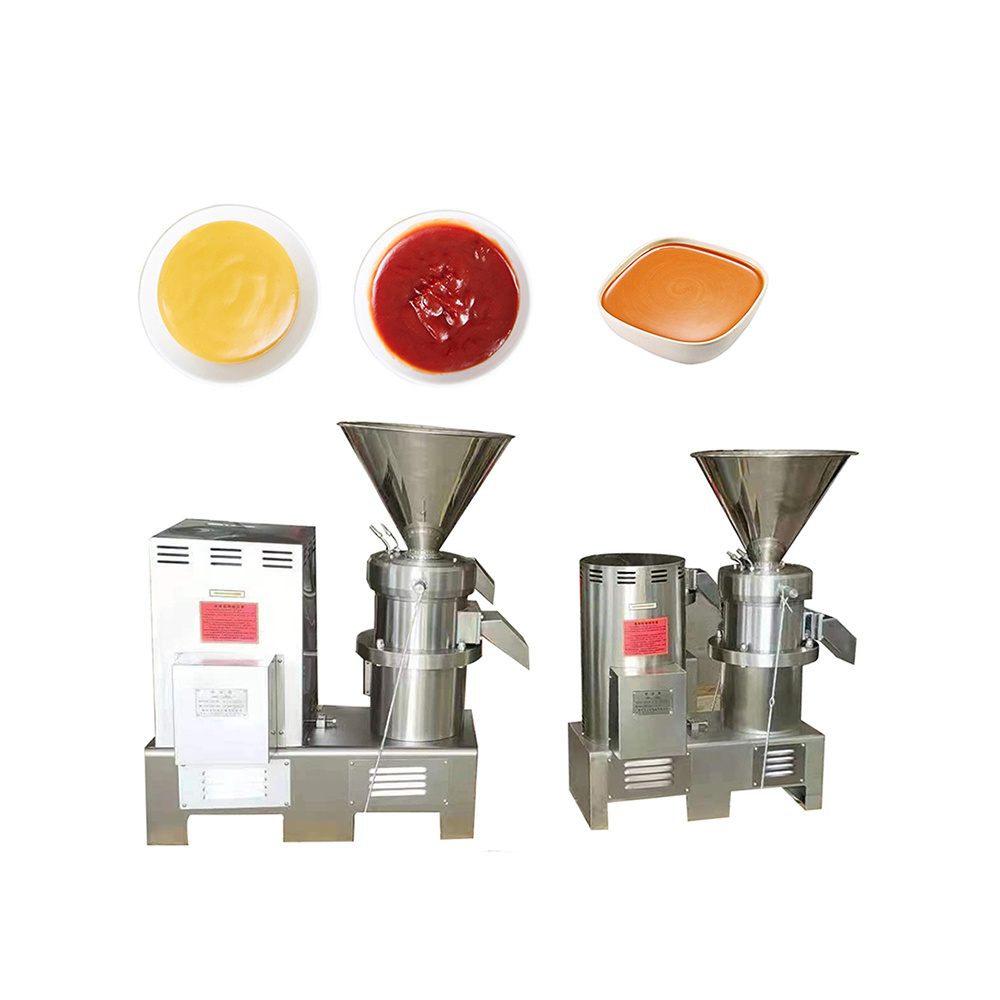

| Product name | Peanut Butter Colloid Mill |
| Application | Making Nut Peanut Butter |
| Power | 1.5/1.1 |
1. This machine keeps the traditional colloid mill with reasonable structure, simple operation, small size, light weight, wide adaptability, simple speed change, and can change different types of motors for different objects. 2. The main working parts of this machine are stator and rotor. The gap between the stator and rotor can be adjusted slightly through the positioning plate, and it is equipped with a dial, which is easy to control and ensures the processing quality of the product. 3. According to different purposes, the stator and rotor of different materials can be selected, which is convenient for disassembly and assembly. 4. The speed of the machine can be adjusted, and the user can order the appropriate speed from our unit according to the material processing situation.
STATOR AND ROTOR
-------
Stable performance and highdischarge fineness
CHAMFER DESIGNCN
-------
Chamfered design to avoid chafing
|
Model
|
50
|
80
|
110
|
130
|
160
|
180
|
210
|
240
|
|||||||||
|
Fineness(μm)
|
2-50
|
||||||||||||||||
|
Capacity(t/h)
|
0.005-0.03
|
0.1-0.5
|
0.3-1.2
|
0.4-2
|
0.6-4
|
0.8-6
|
1.5-8
|
4.0-12
|
|||||||||
|
Motor
|
Power
(KW) |
1.5/1.1
|
4
|
7.5
|
11/15
|
15
|
18.5/22
|
30
|
37/45
|
||||||||
|
Voltage
(V) |
220/
380 |
380
|
|||||||||||||||
|
Speed
(m/min) |
2820
|
2890
|
2900
|
2930
|
2930
|
2930
|
2950
|
2970
|
|||||||||
|
Rotor Dia (mm)
|
50
|
80
|
110
|
130
|
160
|
180
|
210
|
240
|
|||||||||
|
Outer Size
|
L mm
|
520
|
685
|
700
|
975
|
975
|
981
|
1250
|
1250
|
||||||||
|
W mm
|
250
|
335
|
430
|
456
|
476
|
476
|
600
|
620
|
|||||||||
|
H mm
|
555
|
928
|
1000
|
1054
|
1054
|
1124
|
1230
|
1276
|
|||||||||
|
Weight (kg)
|
50
|
150
|
175
|
280
|
350
|
380
|
700
|
920
|
|||||||||
