- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
STC-3008
-
Product Name:
-
Digital Dual Temperature Controller Thermostat
-
Screen Display:
-
Dual Screen Dual Display
-
Housing Material:
-
ABS Flame Retardant Plastic Shell Surgical Materials
-
Power Supply Voltage:
-
12V, 24V, 110~220VAC (Three Voltage Options)
-
Temperature Measuring Range:
-
-55℃~120℃
-
Accuracy:
-
±1℃
-
Resolution:
-
0.1℃
-
Sensor:
-
2*NTC Sensor
-
Sensor Cable Length:
-
1 Meter
-
Applicable Scenarios:
-
Various Sensor Control Boxes, Water Heaters, Freezer Cabinets, Fans..
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
VOTESEN
-
Model Number:
-
STC-3008
-
Product Name:
-
Digital Dual Temperature Controller Thermostat
-
Screen Display:
-
Dual Screen Dual Display
-
Housing Material:
-
ABS Flame Retardant Plastic Shell Surgical Materials
-
Power Supply Voltage:
-
12V, 24V, 110~220VAC (Three Voltage Options)
-
Temperature Measuring Range:
-
-55℃~120℃
-
Accuracy:
-
±1℃
-
Resolution:
-
0.1℃
-
Sensor:
-
2*NTC Sensor
-
Sensor Cable Length:
-
1 Meter
-
Applicable Scenarios:
-
Various Sensor Control Boxes, Water Heaters, Freezer Cabinets, Fans..

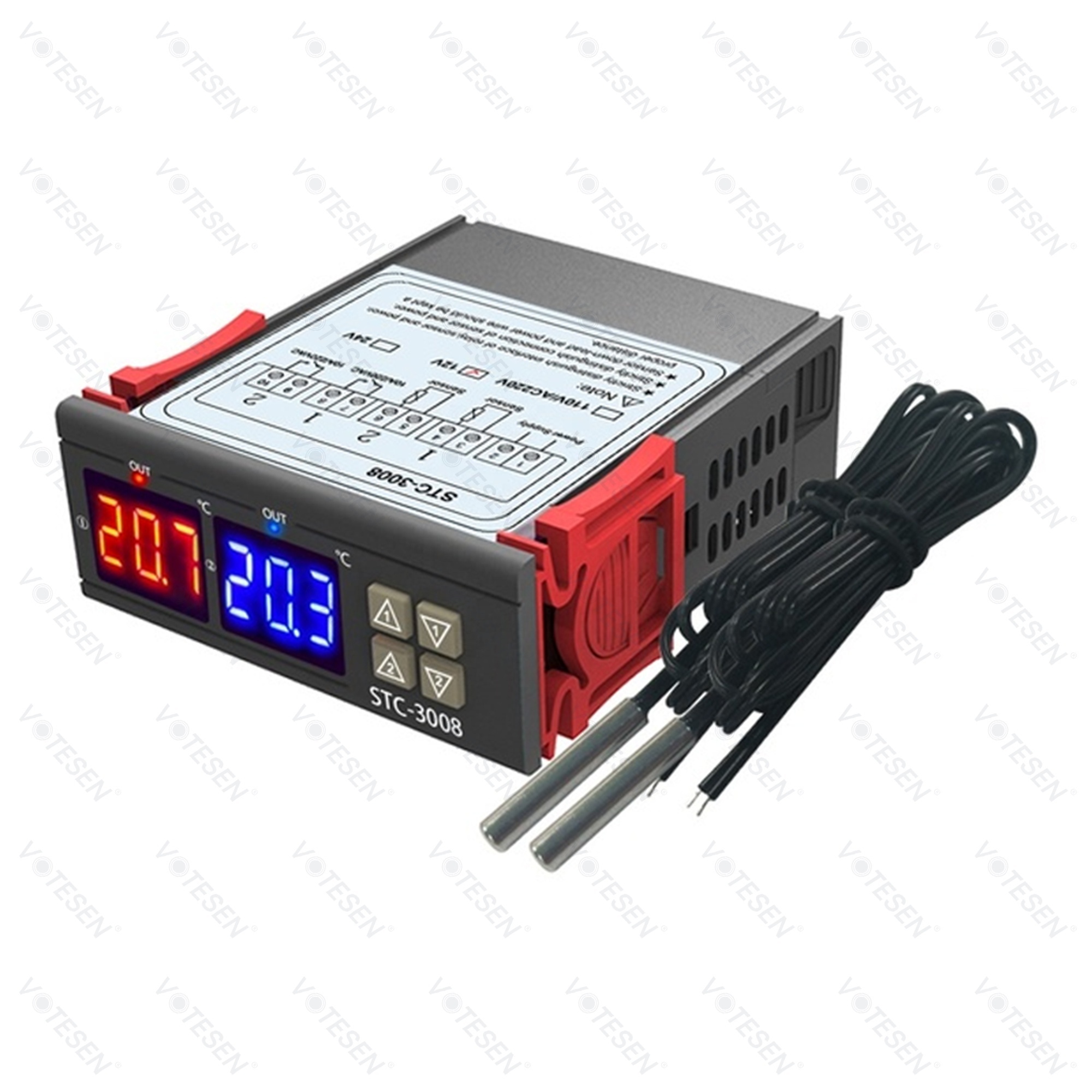

Product Description
Our VOTESEN STC3008 is good temperature control and the monitoring device integrates two single temperature controllers. There are two independent temperature controllers in one case: Red and Blue Display, Two Relays, Two Probes.
This Digital Temperature Controller adopts with ABS flame retardant plastic shell, which is safer to use. It is equipped with NTC Sensor for convenient usage, the line length is about 1 meter. The large and clear digital display shows measuring temperature, high accuracy of temperature measuring, and controlling.
Our VOTESEN STC-3008 is a valuable thermostat because you can get two universal thermostats in one box at a good price. Each thermostat unit can be used separately for cooling or heating. Accuracy is very good to improve it by 0.1°C step calibration. STC-3008 has added alarm function and relay delay in minutes. It's good in hatcheries, terrariums, refrigerators, compressors for controlling.
Specification
|
Product Name
|
Digital Dual Temperature Controller Thermostat
|
|
Brand Name
|
VOTESEN
|
|
Product Model
|
STC 3008
|
|
Usage
|
Household, Industrial, Outdoor, Indoor
|
|
Style
|
Standing and Wall Hanging
|
|
Theory
|
Temperature Controller
|
|
Display Type
|
Digital
|
|
Screen Display
|
Dual Screen and Dual Display
|
|
Housing Material
|
Gray ABS Flame Retardant Plastic Shell Surgical Materials
|
|
Output Capacity
|
10A
|
|
Power Supply Voltage
|
12V、24V、110~220VAC (Three Voltage Options)
|
|
Temperature Measuring Range
|
-55℃~120℃
|
|
Resolution
|
0.1℃
|
|
Temperature Measurement Accuracy
|
±1℃
|
|
Sensor Error Delay
|
1 Minute
|
|
Machine Power Consumption
|
<3W
|
|
Sensor
|
2*NTC Sensor
|
|
Sensor Cable Length
|
1 Meter
|
|
Relay Contact Capacity
|
Cool (10A/240VAC); Heat (10A/240VAC)
|
|
Ambient Temperature
|
0~60°C
|
|
Storage Temperature
|
-30~75°C
|
|
Relative Humidity
|
20-85%(No condensate)
|
|
Item Weight
|
140 g
|
|
Machine Overall Size
|
75mm*85mm*35mm
|
|
Installation Opening
|
Approx. 71*29mm
|
|
Applicable Scenarios
|
Various Sensor Control Boxes, Water Heaters, Freezer Cabinets, Fans (not limited to these devices)
|
Machine Overall Size Diagram
●
1 Body + 2 NTC Temperature Sensor
●
Front Panel Size
: 75x34.5mm
●
Mounting Size
: 71x29mm
● Product Size
: 75x34.5x85mm
● Sensor Length
: 1 Meter (include the probe).
Product Function and Feature
Functions
1. Switch the modes between cool and heat.
2. Control temperature by setting the temperature setting value and the difference value.
3. Temperature calibration.
4. Refrigerating control output delay protection.
5. Alarm when the temperature exceeds temperature limit or when sensor error.
2. Control temperature by setting the temperature setting value and the difference value.
3. Temperature calibration.
4. Refrigerating control output delay protection.
5. Alarm when the temperature exceeds temperature limit or when sensor error.
Features
1. ABS Safety Material
This Digital Temperature Controller adopts with ABS flame retardant plastic shell, which is more safe to use.
2. Thermostat Temperature Controller
This Digital Temperature Controller Thermostat Sensor is a microcomputer intelligent digital display thermostat, dual display dual temperature.
3. Convenient to Use
This Digital Temperature Controller Thermostat is equipped with NTC Sensor for convenient usage, line length is about 1 meter.
4. Clear and Accurate Display
The large and clear digital display shows measuring temperature, high accuracy of temperature measuring, and controlling.
5. Ideal Tool for Refrigeration and Heating Devices
This Temp Thermostat Digital Control Switch is suitable for automatic switching of refrigeration and heating devices such as seafood machines and cooling water machines.
Wiring Diagram
Two Options Wiring Connection
1. Independent Power Supply for Load
2. Same Power Supply for Load
Temperature Setting Steps
Panel Introduction
Code Instruction
|
Code
|
Function
|
Set Range
|
Default
|
|
P0
|
Compressor 1 Delay Time
|
0-60min
|
0min
|
|
P1
|
Compressor 2 Delay Time
|
0-60min
|
0min
|
|
P2
|
High Temperature Alarm Value
|
-55~120°C
|
120°C
|
|
P3
|
Low Temperature Alarm Value
|
-55~120°C
|
-55°C
|
Setting Steps
Product Applications
1. Refrigeration Temperature Control
Our STC3008 widely used in all kinds of low-temperature cold storage, freezer, operation console refrigeration temperature control.
2. Farm Industry Temperature Control
Our STC3008 widely used by large-scale breeding users. The large-scale farm industry has quite high requirements for ambient temperature control.
3. Aquaculture Temperature Control
Aquaculture has quite high requirements for ambient temperature control. Our STC3008 widely used by aquaculture farmers to control the water temperature of aquaculture.
4. Incubation Farmed Temperature Control
Our STC3008 widely used by incubation farmers to control the ambient temperature of hatching.
5. Greenhouse Cultivation Temperature Control
Greenhouse vegetables and greenhouse flowers have quite high requirements for ambient temperature control.
STC3008 Over-Temperature and Over-Limit Alarm functions widely used in greenhouse cultivation temperature control.
6. Pet and Fish Tank
A lot of Pets and Fish feeding have quite high requirements for ambient temperature control. Our STC3008 can help you more precise control of their living environment temperature.
7. Smart Home Temperature Control
STC3008 can set High-Temperature Start and Low-Temperature Start functions to help you enjoy your smart home life temperature control.
8. Scientific Research
Scientific research projects and laboratories need to have strict temperature standards. Our STC3008 can set the temperature control parameters, which is suitable for projects with strict temperature standards and temperature control in the laboratory to avoid misoperation by non-professionals.
