1) Thicker handle
2)Screws connect the handle with the body,to ensure not falling off
3)Thicker walls of the body
4)High precision of thread,CNC machined
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
KL
-
Material:
-
PVC
-
Standard:
-
DIN/ JIS / ANSI /BS/CNS
-
Seals:
-
FPM or EPDM Seals
-
O-Ring:
-
Double O-Ring Stem Seal
-
Pressure:
-
200psi/PN16
-
Temperature:
-
0-27 Degree-C
-
Connect way:
-
Thread or socket
-
Design:
-
Full Port Design
-
Torque:
-
low torque and adjustable seat retainer
-
Product name:
-
apaxx spears upvc ball stop valve
Quick Details
-
Port Size:
-
1/2" to 4"
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
KLBV110
-
Brand Name:
-
KL
-
Material:
-
PVC
-
Standard:
-
DIN/ JIS / ANSI /BS/CNS
-
Seals:
-
FPM or EPDM Seals
-
O-Ring:
-
Double O-Ring Stem Seal
-
Pressure:
-
200psi/PN16
-
Temperature:
-
0-27 Degree-C
-
Connect way:
-
Thread or socket
-
Design:
-
Full Port Design
-
Torque:
-
low torque and adjustable seat retainer
-
Product name:
-
apaxx spears upvc ball stop valve
Product Description
Welcome !
We are the manufacturer of
plastic valves and plastic pipe fittings(PP,PVC,CPVC,PVDF)...
OEM ODM available
Click here directly to submit your requirement.
VIP >>

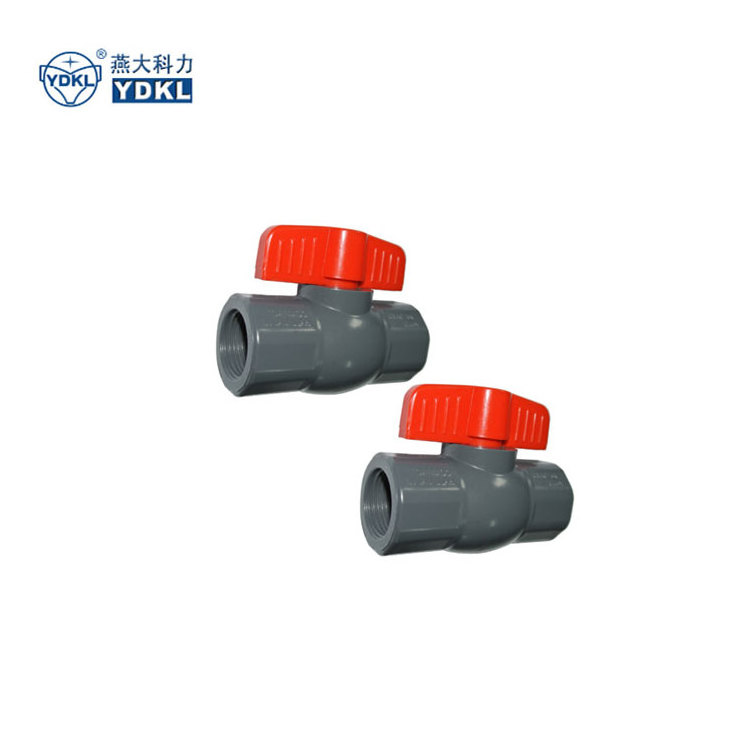

apaxx spears upvc ball stop valve
PVC red handle white color compact ball valve 25mm
Thread Type
|
SIZE
|
L
|
L1
|
H
|
T
|
E
|
d
|
d1
|
d2
|
|
1/2"
|
69.8
|
18.5
|
42.3
|
65.0
|
17.8
|
15.0
|
21.24
|
21.54
|
|
3/4"
|
79.2
|
22.0
|
48.5
|
71.8
|
21.0
|
20.0
|
26.57
|
26.87
|
|
1"
|
94.5
|
26.2
|
58.0
|
87.8
|
25.7
|
25.0
|
33.27
|
33.65
|
|
1-1/4"
|
106.8
|
26.8
|
63.5
|
99.6
|
31.0
|
31.0
|
42.04
|
42.42
|
|
1-1/2"
|
122.8
|
31.2
|
73.0
|
109.8
|
36.7
|
37.0
|
48.11
|
48.56
|
|
2"
|
142.7
|
34.5
|
84.4
|
127.5
|
44.6
|
47.0
|
60.17
|
60.63
|
Socket Type
|
SIZE
|
L
|
L1
|
H
|
T
|
E
|
d
|
|
1/2"
|
69.8
|
18.0
|
42.3
|
65.0
|
17.8
|
15.0
|
|
3/4"
|
79.2
|
22.0
|
48.5
|
71.8
|
21.0
|
20.0
|
|
1"
|
94.5
|
25.0
|
58.0
|
87.8
|
25.7
|
25.0
|
|
1-1/4"
|
106.8
|
26.0
|
63.5
|
99.6
|
31.0
|
31.0
|
|
1-1/2"
|
122.8
|
31.0
|
73.0
|
109.8
|
36.7
|
37.0
|
|
2"
|
142.7
|
34.0
|
84.4
|
127.5
|
44.6
|
47.0
|
Product Features
1.All size available
Normal size: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2",2-1/2'',3'',4''.
And you may leave us message for full range of sizes
2.Multi color available
Blue,white,black,gray and other color.
And you may leave us message for full range of sizes.
3.Multi handle available
And you may leave us message for full range of sizes.
4.All international standard available
And you may leave us message for more information.
Products Catalog
Compared on detail
Compared on detail
Application
FAQ
Q:Are you trading company or manufacturer ?
A:We are professional manufacturer,specialized in VALVES for many years.
Q:How about OEM or ODM?
A:YDKL have experienced technical team,which can design the valve according to customized request.
Q:How long is your delivery time?
A:Generally,It is 7 days for the conventional product in stock,otherwise it is 20-30 days after deposit.Urgent order can be negotiable.
Q:Do you provide samples ?
A:Absolutely! But we consider to receive small amount of sample fee as a sign of sincerely cooperation and will compensate it in products for your future order.
Q:Can I have my own Logo on the product?
A:Yes, sure,if your quantity is considerable,we would like to engraved your logo in the products.
