Quick Details
-
Application:
-
Warehouse
-
Color Temperature(CCT):
-
3000K/4000K/5000K/6000K
-
Input Voltage(V):
-
AC100-277N/AC200-240V
-
Color Rendering Index(Ra):
-
>80
-
Product Weight（kg）:
-
13.5
-
Model Number:
-
SL-P69X4-36-X (PC & PMMA)
-
Certification:
-
RoHS Certified
-
Material:
-
PC/PMMA
-
IP Rate:
-
IP69K IK10
-
CCT:
-
WW(2700-3400K)NW(4000-4500k) CW(6000-6500K)
-
Installation:
-
Suspended
-
Light Efficiency:
-
130lm/W
-
Size:
-
0.6M,1.2M,1.5M
-
Beam angle:
-
120 Degree
-
Feature:
-
Anti-corrosion
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
130
-
Warranty(Year):
-
5
-
Type:
-
CTN:1350*250*180mm.6pcs/CTN
-
Application:
-
Warehouse
-
Color Temperature(CCT):
-
3000K/4000K/5000K/6000K
-
Input Voltage(V):
-
AC100-277N/AC200-240V
-
Color Rendering Index(Ra):
-
>80
-
Product Weight（kg）:
-
13.5
-
Model Number:
-
SL-P69X4-36-X (PC & PMMA)
-
Certification:
-
RoHS Certified
-
Material:
-
PC/PMMA
-
IP Rate:
-
IP69K IK10
-
CCT:
-
WW(2700-3400K)NW(4000-4500k) CW(6000-6500K)
-
Installation:
-
Suspended
-
Light Efficiency:
-
130lm/W
-
Size:
-
0.6M,1.2M,1.5M
-
Beam angle:
-
120 Degree
-
Feature:
-
Anti-corrosion
13+ Years Experience in Tri-proof Innovation

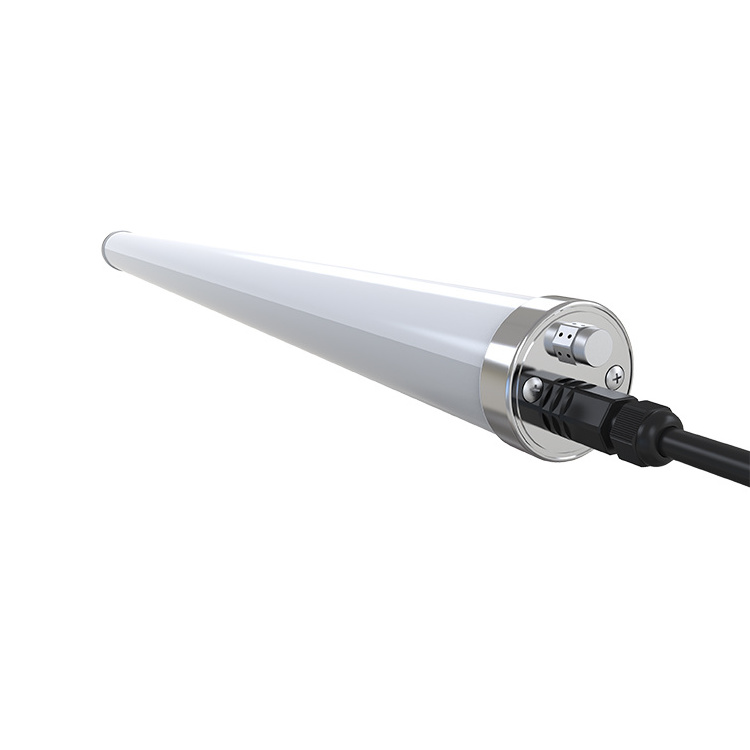

Chicken Farm using IK10 led lighting ip69 waterproof light fixture 20w 36w 45w ip69k tri-proof light
1. IP69K Water-proof , Dust-Proof , Moisture-proof
2. High Impact IK10 Test
3. Easy for series connection,ideal products for saving Labor cost
4. SDCM<4 , Meets ANSI and Erp Regulations, L80B50 (Ta = 25℃)>75000Hrs
5. Suitable for 3G/5G 1.5mm2 US/EU Cable (Max 12mm).
6. 0/1-10V，DALI Dimmable , function are avaliable.
7. With ENEC/UL/SAA No Flickering Led Power Supply , 5 years warranty
8. Comply with UL,DLC ,SAA, ENEC ,CE , RoHS requirements
9.
PC housing for outdoor: Anti-UV,
PE housing for farm: Anti-Amonia
10. Widely Application :
Chicken sheds/Livestock farm/Gas station/Car Washes/Food/Meat processing industry
...
|
Item Number
|
SL-P69F2-XX-X
|
|
SL-P69F4-XX-X
|
|
SL-P69F5-XX-X
|
|
|||||
|
Size
|
600*D75mm
|
|
1200*D75mm
|
|
1500*D75mm
|
|
|||||
|
Power
|
20W
|
30W
|
36W
|
50W
|
45W
|
60W
|
|||||
|
LEDs
|
208 pcs
|
208 pcs
|
312 pcs
|
312 pcs
|
416 pcs
|
416 pcs
|
|||||
|
Bean Angle
|
120°
|
|
|
|
|
|
|||||
|
CRI
|
>80
|
|
|
|
|
|
|||||
|
AC Input
|
100-277V / 220-240V
|
|
|
|
|
|
|||||
|
Color Temperature
|
3000K/4000K/5000K/6000K
SDCM <4
|
|
|
|
|
|
|||||
|
Efficiency
|
Frosted PC cover:
110~120lm/w
, Striped PC cover:
120~130lm/w
|
|
|
|
|
|
|||||
|
Lumen Output (LM)
|
2200-2600
|
3300-3900
|
4000-4700
|
5500-6500
|
5000-5900
|
6600-7800
|
|||||
