Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JIUSHI
-
Model Number:
-
A19-11D
-
Panel Cutout:
-
19mm
-
Material:
-
Stainless steel/Brass plating
-
Contact Configuration:
-
1NO1NC
-
LED color:
-
Red.yellow.green.white.blue
-
Lamp volt:
-
3v/5v/6v/12v/24v/220v
-
Operation type:
-
Momentary
-
Mechanical Life:
-
up to 1,000,000 cycles
-
Electrical Life:
-
up to 200,000 cycles
-
Certificate:
-
CE RoHS
-
Certification:
-
CE
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
3A/5A
-
Max. Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JIUSHI
-
Model Number:
-
A19-11D
-
Panel Cutout:
-
19mm
-
Material:
-
Stainless steel/Brass plating
-
Contact Configuration:
-
1NO1NC
-
LED color:
-
Red.yellow.green.white.blue
-
Lamp volt:
-
3v/5v/6v/12v/24v/220v
-
Operation type:
-
Momentary
-
Mechanical Life:
-
up to 1,000,000 cycles
-
Electrical Life:
-
up to 200,000 cycles
-
Certificate:
-
CE RoHS
-
Certification:
-
CE
Yueqing Jiu Shi Electronics Co., Ltd
It is established in August 2012 and located in LiuShi town.
As a professional and reliable manufacturer of electrical switches/ indicator lights, we have considerable experience in manufacturing these products and have a good reputation. We confidently offer you competitive price and durable product.
With our excellent product quality, perfect products and technical services, we believe we can boost our customer's business.
Welcome to discuss and join us,we will be your best choice in the future!!!

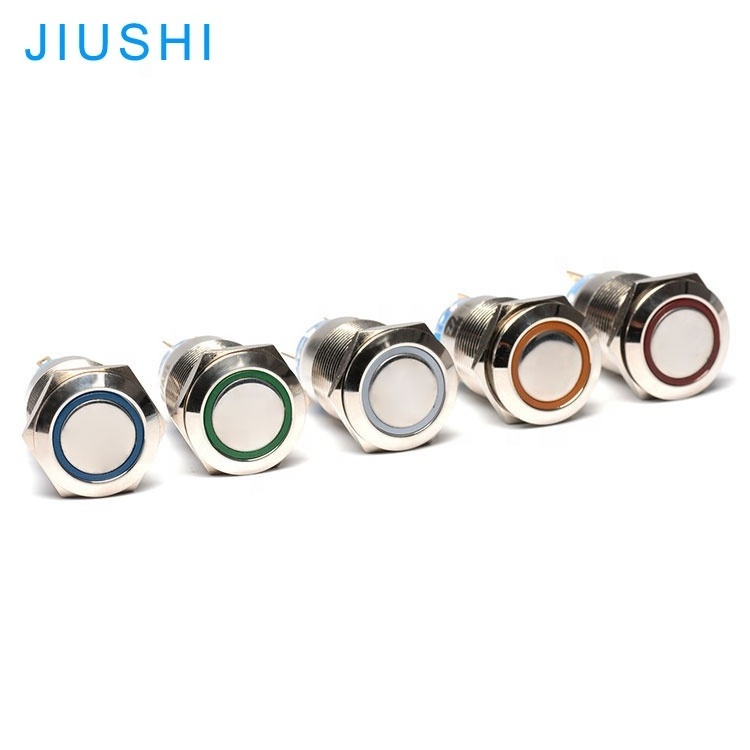

A19-11D flat head mounting hole 19mm button with ring light self-reset waterproof metal LED push button switch momentary
Push Button Switch
Metal button switch shell using metal material,compared with the plastic switch,not tight to enhance its appearance,color can be diversified and greatly improve its dust and waterproof performance,explosionproof performance and corrosion resistance,etc.
|
Parameter
|
|
|
|
|||
|
Terminal type
|
5 pins terminals
|
|
|
|||
|
Panel mounting hole
|
19mm
|
|
|
|||
|
Body Material
|
Stainless steel /Brass plating
|
|
|
|||
|
Contact Configuration
|
1NO 1NC
|
|
|
|||
|
Operation type
|
self compound
|
|
|
|||
|
Max. Switch Rating
|
5A / 250V
|
|
|
|||
|
Contact Resistance
|
<50mΩ
|
|
|
|||
|
Insulation Resistance
|
>1000MΩ
|
|
|
|||
|
Dielectric Strength
|
2000VAC
|
|
|
|||
|
Operating Temp.
|
-20℃ to +50℃
|
|
|
|||
|
Mechanical Life
|
>1,000,000 cycles
|
|
|
|||
|
Electrical Life
|
>200,000 cycles
|
|
|
|||
|
Panel Thickness
|
1~10mm
|
|
|
|||
|
IP Degree
|
IP65 IK10
|
|
|
|||
|
Torque
|
5~14Nm
|
|
|
|||
Packing details:
The goods usually be packed in one inner box,then in a out carton.
|
inner box
|
20pcs
|
23.5*14*6.5 CM
|
|
|
Outer carton
|
200pcs
|
38*25*42.5 CM
|
19/20KGS
|
Some details you may concern:
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q2. How about your delivery time?
A: Usually, it will take 5 to 30 days after receiving your advance payment.
Q3. What is your sample policy?
A: We can supply free sample if we have ready parts in stock, but the customers have to pay the courier cost.
