Quick Details
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ACCTEK
-
Dimension(L*W*H):
-
2250*1800*1850mm
-
Weight (KG):
-
660 KG
-
Working size:
-
1600*1000mm
-
Control system:
-
Ruida laser system with keypad
-
Laser tube:
-
60W-180W (optional)
-
Laser head:
-
Co2 laser head for nonmetal
-
Working table:
-
Auto feeding transmission with correction function
-
transmission type:
-
Fulong belt and pinion with coupling
-
Driver:
-
Leadshine stepper driver(Servo optional )
-
Rails:
-
Taiwan HIWIN linear guide rails
Quick Details
-
Engraving Area:
-
1800*1000mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
1-6000mm/min
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ACCTEK
-
Dimension(L*W*H):
-
2250*1800*1850mm
-
Weight (KG):
-
660 KG
-
Working size:
-
1600*1000mm
-
Control system:
-
Ruida laser system with keypad
-
Laser tube:
-
60W-180W (optional)
-
Laser head:
-
Co2 laser head for nonmetal
-
Working table:
-
Auto feeding transmission with correction function
-
transmission type:
-
Fulong belt and pinion with coupling
-
Driver:
-
Leadshine stepper driver(Servo optional )
-
Rails:
-
Taiwan HIWIN linear guide rails

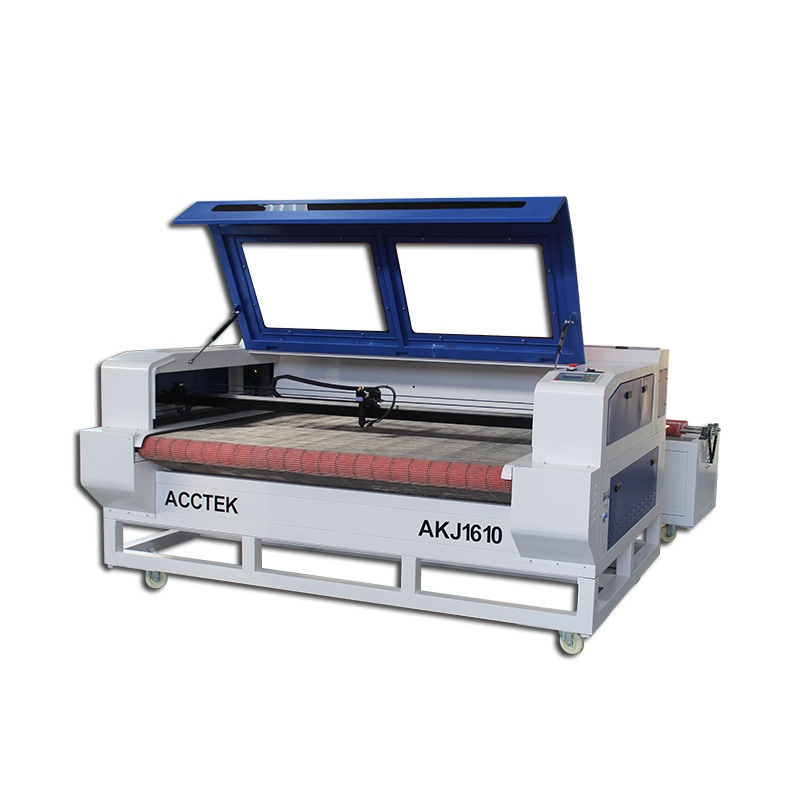

1625 1325 1610 1530 fast auto feed fabric laser cutting machine/Jinan factory price laser machine with high accuracy
No find the laser you like ? Try to click the laser name as follows
Knife cutting machine
Auto feeding laser cutter AKJ1318
Auto feeding Oscillating machine
Auto feeding knife cutter with CCD function
| Items | Parameter |
| Product name | Auto feeding Co2 laser cutting machine |
| Processing area | 1800mm*1000mm |
| Laser power | 60-180W |
| Laser type | Sealed Co2 glass laser tube |
| Laser head | Two independent head&source |
| Controller | Ruida laser system with keypad |
| Working table | Auto feeding transmission table |
| Following up system | With autofocus system |
| Cooling mode | Circulation water cooling and protection system |
| Transmission and rails | Taiwan HIWIN linear guide rails and Fulong belt and pinion |
| Positioning accuracy | ±0.05mm |
| Compatible Software | Laser cut /CorelDraw/AutoCAD/Photoshop |
| Engraving speed | 1-8000mm/min |
| Cutting speed | 1-6000mm/min |
| Position system | Red dot |
| Feeding system | Auto feeding unit with correction function |
| Minimum shaping character | letter 0.5mm, Chinese 0.5mm |
| Support graphic format | DST, PLT, BMP, DXF |
| Driving mode | Stepper motor |
| Air pump | With |
| Exhaust fan | With |
| Working voltage | AC 110 - 220V±10%, 50 - 60Hz or depend on customer |
| Operating temperature | 0-45°C |
| Operating humidity | 5-95% |
| Options | Up and down working table |
| Rotary attachment for column materials | |
| Chiller CW3000-6000 | |
| Multi-head | |
| Guarantee time |
2years |
Advantage:
This type Laser Cutting Machine with co2 laser tube is mainly used to cut computerized embroidery labels, irregular labels, embroidery craftwork, print fabric, textile, badge, trademark industries and other nonmetal materials. This type Laser Cutter adopts CCD camera positioning automatically, high cutting speed, high precision, well cutting effect.
This co2 laser cutting machine can use for cutting nonmetal material.
Non-metallic materials: Cotton, hemp, chemical fiber and other textile and apparel fabrics and leather, wood, acrylic, cardboard and other non-metallic materials
Rather careful and professional packing way for machine protection.
1. Film. Put PE film on the machine and some spare parts, then put bubble wrap to the machine.
2. Free-fumigation wooden case with steel tube support on wooden cover. The humidity-proof paper above the wooden plate. This kind of package could protect the machine very well from dust and humidity etc.
Guarantee:
12 months for the whole machine.You will also get technical support and service all the lifetime.
Technical support:
1. Our technician can give you remote guide online(Skype or WhatsApp) if any question.
2. English version manual and operation video CD disk
3. Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/skype/tel etc
