Cheese is pasteurized from fresh milk, then fermented and curdled, pressed and cut into finished products.
Cheese is a kind of fermented milk product. Its properties are similar to common yogurt. It is made by fermentation process and contains lactic acid bacteria that can be used for health care. However, the concentration of cheese is higher than that of yogurt, which is similar to solid food and has more nutritional value.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V/220V/Customized
-
Power:
-
Customized
-
Weight:
-
200 KG
-
Dimension(L*W*H):
-
Customized
-
Product Name:
-
Cheese Making Machine
-
Capacity:
-
200L-2000L
-
Insulation:
-
Polyurethane Foam
-
Insulation Thickness:
-
50-80 mm
-
Material:
-
Stainless Steel 304/316L
-
Cutting Knives:
-
Easy Connect
-
Heating:
-
Electric / Steam
-
Component:
-
Frequency Control Motor
-
Mixing Speed:
-
Adjustable
-
Function:
-
Milk Sterilizing, Curd Processing
Quick Details
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HENGER
-
Voltage:
-
380V/220V/Customized
-
Power:
-
Customized
-
Weight:
-
200 KG
-
Dimension(L*W*H):
-
Customized
-
Product Name:
-
Cheese Making Machine
-
Capacity:
-
200L-2000L
-
Insulation:
-
Polyurethane Foam
-
Insulation Thickness:
-
50-80 mm
-
Material:
-
Stainless Steel 304/316L
-
Cutting Knives:
-
Easy Connect
-
Heating:
-
Electric / Steam
-
Component:
-
Frequency Control Motor
-
Mixing Speed:
-
Adjustable
-
Function:
-
Milk Sterilizing, Curd Processing
CHEESE PRODUCTION LINE DESCRIPTION
⭐A Big Capacity Cheese Production Line
⭐A Small Capacity Cheese Production Line
⭐
What IS Cheese?
⭐Main Equipment For Making Cheese From Fresh Milk
01 Milk Filter
It is usually used to remove impurities in fresh milk, and is suitable for cheese production lines and dairy processing lines with large output.

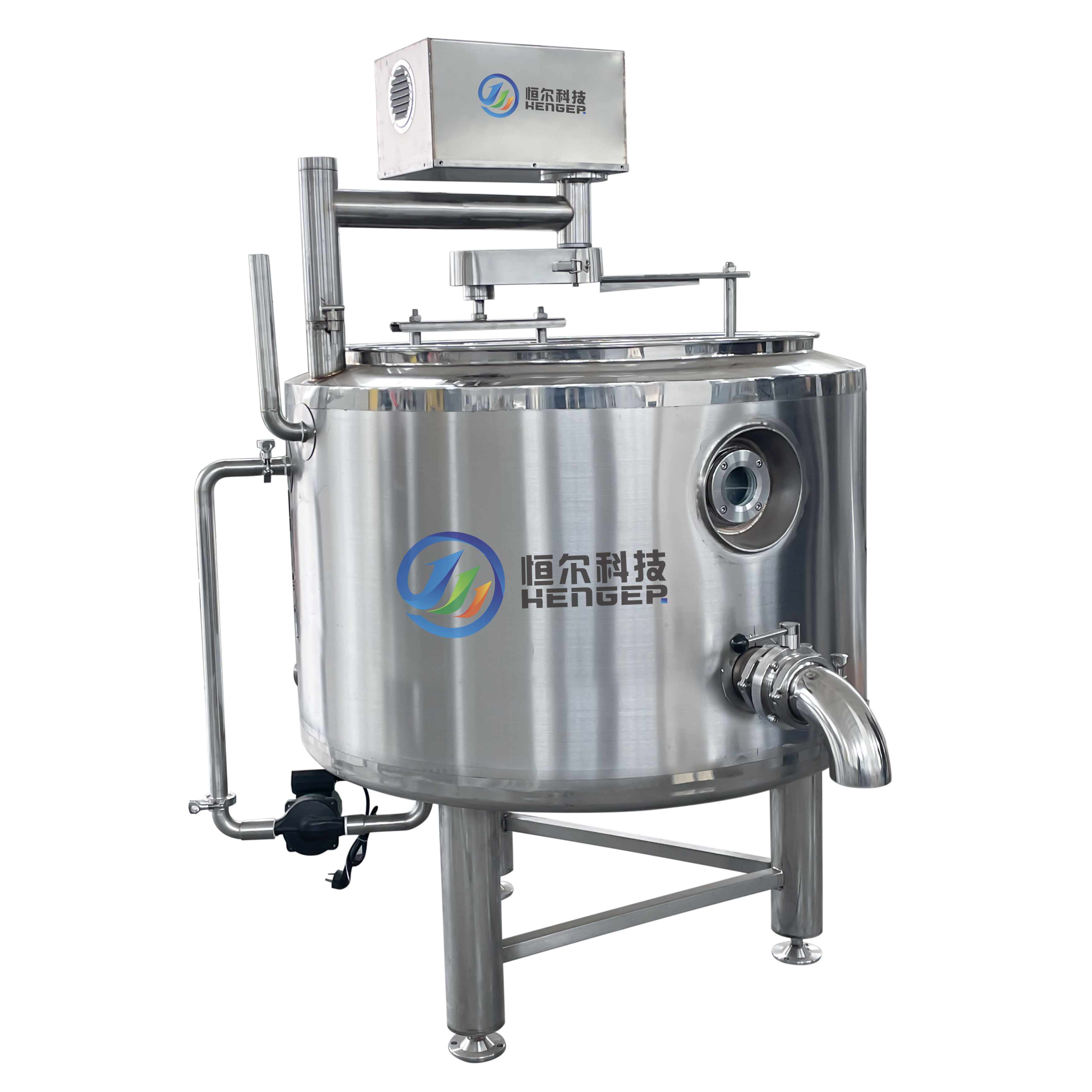

02 Cheese Vat
The equipment is used for heating milk, pasteurizing and aging into wet cheese. It can be directly connected to the cheese presser.
The power supply can be customized according to the requirements of each country. PLC touch screen control and pneumatic control valve can be customized, and various mixing blades and other functions can be customized.
The power supply can be customized according to the requirements of each country. PLC touch screen control and pneumatic control valve can be customized, and various mixing blades and other functions can be customized.
03 Drain Table
Installation size:
1000*850*700mm
Groove depth: 300 mm
Weight: 150 kg
Material: SUS304
Structure: the drain board is split type, removable, with finished product rack and universal wheel at the bottom, and sewage outlet at the bottom of the groove.
1000*850*700mm
Groove depth: 300 mm
Weight: 150 kg
Material: SUS304
Structure: the drain board is split type, removable, with finished product rack and universal wheel at the bottom, and sewage outlet at the bottom of the groove.
04 Cheese Presser
The cheese press is used with the cheese processing machine to press the wet cheese and remove the water. Our cheese press consists of air cylinder, mold and control box. The cylinder presses automatically, and the control box controls the cylinder switch and speed. The mold shape can be customized.
05 Whey Heating Tank
Installation size: 1000*1000*1200mm
(Customizable)
Effective volume: 500L
Power: 24 kw
Thermal insulation material: polyurethane foam
(Customizable)
Effective volume: 500L
Power: 24 kw
Thermal insulation material: polyurethane foam
Weight: 280KG
Material: SUS304
Material: SUS304
06 Strips Cutter
Machine weight: 53Kg
Product power: 1100W
Continuous operation: 1-2h 3-4h
Product voltage: 220V
Knife disc specification: 6.5*8.5*13.5mm
Production: 150-250 kg
Machine size: 85*32*53cm
Product power: 1100W
Continuous operation: 1-2h 3-4h
Product voltage: 220V
Knife disc specification: 6.5*8.5*13.5mm
Production: 150-250 kg
Machine size: 85*32*53cm
07 Vacuum Packaging Machine
Power supply: 220 v / 380 v
Average power : 0.8kW
Vacuum chamber size: 500*460*110mm
Effective sealing size: 400*(8- 10)*2mm
Average power : 0.8kW
Vacuum chamber size: 500*460*110mm
Effective sealing size: 400*(8- 10)*2mm
Center distance of seal: 380mm
Minimum absolute negative pressure: < 200Pa
Sealing capacity: 120-200 times/hour
Minimum absolute negative pressure: < 200Pa
Sealing capacity: 120-200 times/hour
Dimensions: 520*515*910mm
Machine weight :80kg
Machine weight :80kg
⭐Cheese Processing Flow
|
Name
|
Cheese Production Line
|
|
Material
|
Stainless Steel 304
|
|
Capacity
|
500L/1000L/2000L,etc (Customized）
|
|
Final Product
|
Mozzarella Cheese,Dry Cheese,etc
|
|
Power
|
16-32kw
|
|
Dimension
|
Customized
|
PROJECT CASES
OTHER TYPICAL EQUIPMENT
MILK COOLING TANK
PASTEURIZER
CHEESE PRESS MACHINE
OBLONG CHEESE VAT
CHEESE DRYING MACHINE
RECOMMEND PRODUCT
COMPANY PROFILE
Henger manufacturing (Shandong) Machinery Technology Co., Ltd. is a modern food machinery processing enterprise integrating scientific research and development, manufacturing, sales and service.The company has a high-quality workforce, a sound management system and technical research and development capabilities. The main scope of business includes dairy processing equipment, juice beverage processing equipment, fluid processing equipment, and overall solutions for cold storage, turnkey projects, etc. The company's products can be applied to various food processing plants, dairy plants, wineries, beverage plants, as well as some meat processing plants and aquatic products processing plants
.
FAQ
Q: Are you a manufacturer?
Yes,we're a manufacturer
Q: Where's your factory located?
We're located in Bin Zhou city Shandong province
Q:Can I see the machine first and then confirm the order?
The answer is definitely yes,seeing is believing,we suggest all customer see the machine quality before confirm order
Q:What about the price?
Yes,we're a manufacturer
Q: Where's your factory located?
We're located in Bin Zhou city Shandong province
Q:Can I see the machine first and then confirm the order?
The answer is definitely yes,seeing is believing,we suggest all customer see the machine quality before confirm order
Q:What about the price?
We only offer the reasonable price instead of high price. Different quality and with different price.
Q:Can you arrange the installation abroad?
Y
es, we already exported to southeast, Germany, and Africa etc. And some of them installed by our technology team.
Q:Can you accept special order?
Yes, we have R&D center with years’ experience for fluid making machine. Welcome to visit us. You will get the best service and product.We do believe our company will be best choice among the Chinese fluid making machinery company.
