Quick Details
-
steel:
-
All steel members galvanized
-
Wall system:
-
EPS sandwich panel
-
Floor:
-
plywood + laminated floor
-
PVC single glass sliding window size:
-
800mm*1100mm, custom made
-
Exterior steel door:
-
860mm*2050mm, custom made
-
Electricity:
-
custom made
-
Size:
-
4876mm*2438mm*2591mm,custom made
-
Color:
-
white,blue,gray,red,camouflage ect.
-
Model Number:
-
PTJ-10*20A
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Putian (PTH)
-
Certificate:
-
ISO,CE
-
steel:
-
All steel members galvanized
-
Wall system:
-
EPS sandwich panel
-
Floor:
-
plywood + laminated floor
-
PVC single glass sliding window size:
-
800mm*1100mm, custom made
-
Exterior steel door:
-
860mm*2050mm, custom made
-
Electricity:
-
custom made
-
Size:
-
4876mm*2438mm*2591mm,custom made
-
Color:
-
white,blue,gray,red,camouflage ect.
-
Model Number:
-
PTJ-10*20A

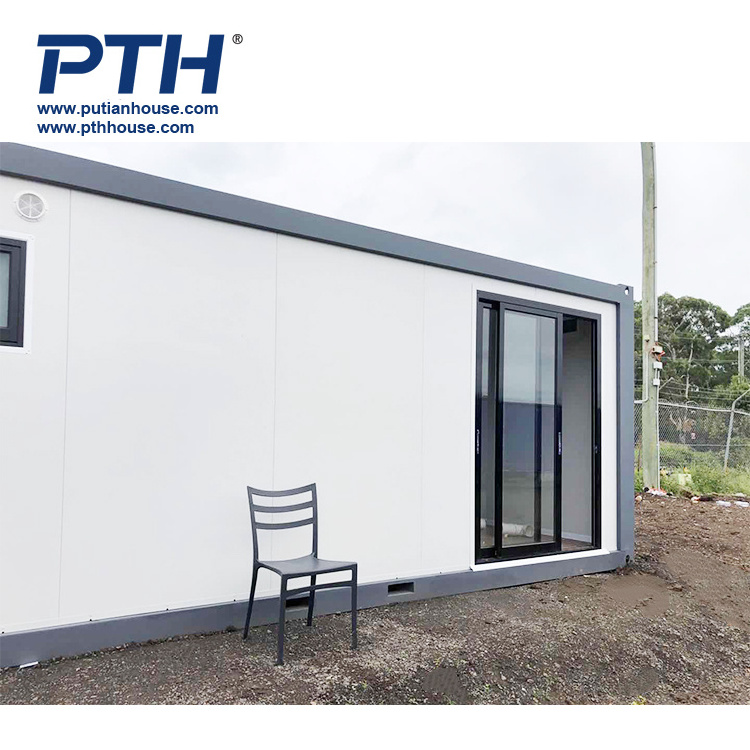

Modular Container House for Temporary Dormitory, Single Department, Office-PTH prefab container houses
Detailed Photos
Products Description
Frame:
Q355 steel structure is hot-dip galvanized and completed welding, coated with hot galvanized zinc 100g/m2+surface uses electrostatic powder treatment finish 100um.Q355 Steel is better than Q235 ,and with HDG treatment with powder spraying,it would keep the frame in high anti-corrosion .
Roof: For the roof ,our cases is PU foaming (45kg/m3 which meets standard of PIR)which has high integarity for the airtightness which would be better than common EPS sandwich panel or glass wool as roof insulation.
Panel: For the sandwich panels,we remarks with density and thickness of both sides of steel sheets,in the same time,you can find the treatment with Aluminum zinc magnesium AMZ galvanized 100g/m2 with PE baking finish 20/5um. which can last more than 25 years.
Roof: For the roof ,our cases is PU foaming (45kg/m3 which meets standard of PIR)which has high integarity for the airtightness which would be better than common EPS sandwich panel or glass wool as roof insulation.
Panel: For the sandwich panels,we remarks with density and thickness of both sides of steel sheets,in the same time,you can find the treatment with Aluminum zinc magnesium AMZ galvanized 100g/m2 with PE baking finish 20/5um. which can last more than 25 years.
Specifications
|
Size
|
Length
|
6058mm / 6000mm or customized
|
|
|
|
|
Width
|
2438mm /3000mm or customized
|
|
|
|
|
Height
|
2600mm / 2791mm / 3000mm or customized
|
|
|
|
|
Clear height indoor
|
5800mm*2200mm*2300mm, it is changable
|
|
|
|
Standard accessory |
Roof System |
Top structure + 70mm thick integrated PU foam insulation + embedded electrical system
|
|
|
|
|
Chassis System |
steel struction chassis + 18mm thickness cement-fiber board + 2mm thickness PVC floor sheet (glass wool insulation for optional)
|
|
|
|
|
|
Permitted loading:>2.5KN/m2
|
|
|
|
|
Wall System |
50/75/100mm EPS sandwich panel, rock wool sandwich panel,glass fiber sandwich panel, or PU sandwich panel
|
|
|
|
|
Door System
|
Steel door / Fire-proof door / Sandwich panel door
|
|
|
|
|
Window System
|
Aluminum alloy shutter window and the plastic-steel window, single or double glass
|
|
|
|
|
Floor System
|
PVC, plywood or customized
|
|
|
|
Option
|
Drainage system
|
Provided plan, design and constrution
|
|
|
|
|
Electric system
|
Provided plan, design and constrution
|
|
|
|
Technical parameter
|
Resistant temperature
|
-40ºC to 40ºC
|
|
|
|
|
Wind resistance
|
210km/h
|
|
|
|
|
Earthquake resistance
|
Grade 8
|
|
|
PTH flat-pack container house type
Process Characteristics
