Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
STC
-
Model Number:
-
H60
-
Working Length (mm):
-
12-140mm
-
Machine Type:
-
Drilling Machine
-
Application:
-
Aluminum ,alloy, deep hole drilling
-
Product name:
-
Parabolic flute twist drill bit
-
Color:
-
Request
-
Size:
-
1-20mm
-
Packing:
-
Plastic Box
-
Shank:
-
Straight
-
Process:
-
Fully Ground
Quick Details
-
Type:
-
Twist Drill Bit
-
Use:
-
Metal Drilling
-
Finish:
-
Plain
-
Warranty:
-
2 years
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
STC
-
Model Number:
-
H60
-
Working Length (mm):
-
12-140mm
-
Machine Type:
-
Drilling Machine
-
Application:
-
Aluminum ,alloy, deep hole drilling
-
Product name:
-
Parabolic flute twist drill bit
-
Color:
-
Request
-
Size:
-
1-20mm
-
Packing:
-
Plastic Box
-
Shank:
-
Straight
-
Process:
-
Fully Ground

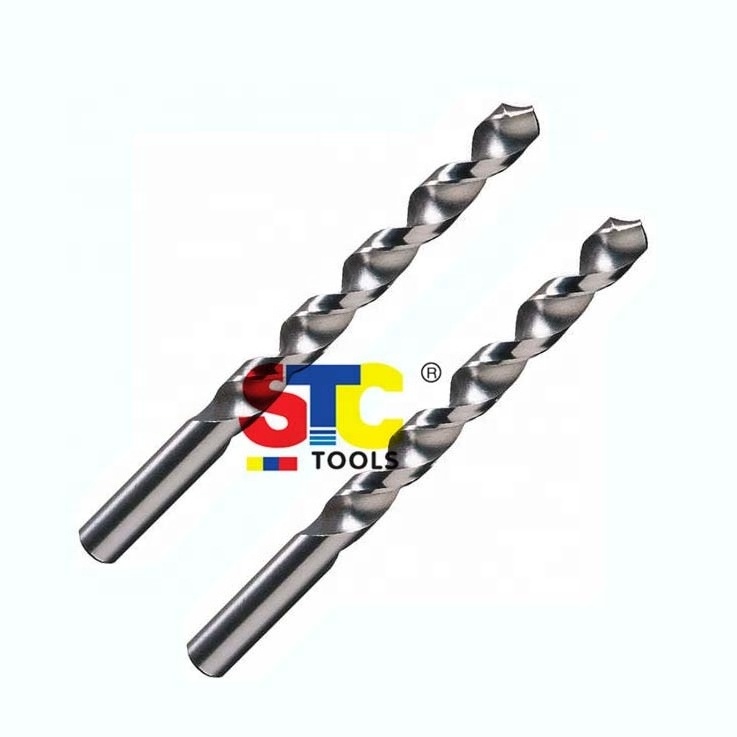

HSS Din338 Type W Worm Pattern UFL Parabolic Drills High Helix Quick Fast Spiral Jobber Length Drill bit
- Designed for the drilling of deep holes and has a 118° point, the high helix and open flutes allow for chips to clear the hole easily.
- This drill can be used in low tensile strength aluminum, copper, magnesium, and die casting materials.
- Other materials include soft steels, free machining brass and bronze, stainless steels, and screw machine stock.
- Size: 1mm-20mm, 1/16"--3/4"
- Material: high speed steel,cobalt high speed steel.
Din338 drill bit
|
nominal diameter
|
Overall length
|
Flute length
|
|
1.00 |
34 |
12 |
|
1.50 |
40 |
18 |
|
2.00 |
49 |
24 |
|
2.50 |
57 |
30 |
|
3.00 |
61 |
33 |
|
3.10 |
65 |
36 |
|
3.30 |
65 |
36 |
|
3.40 |
70 |
39 |
|
3.70 |
70 |
39 |
|
3.80 |
75 |
43 |
|
4.20 |
75 |
43 |
|
4.30 |
80 |
47 |
|
4.70 |
80 |
47 |
|
4.80 |
86 |
52 |
|
5.30 |
86 |
52 |
|
5.40 |
93 |
57 |
|
6.00 |
93 |
57 |
|
6.10 |
101 |
63 |
|
6.70 |
101 |
63 |
|
6.80 |
109 |
69 |
|
7.50 |
109 |
69 |
|
7.60 |
117 |
75 |
|
8.50 |
117 |
75 |
|
8.60 |
125 |
81 |
|
9.50 |
125 |
81 |
|
9.60 |
133 |
87 |
|
10.60 |
133 |
87 |
|
10.70 |
142 |
97 |
|
11.80 |
142 |
97 |
|
11.90 |
151 |
101 |
|
13.20 |
151 |
101 |
|
13.30 |
160 |
108 |
|
14.00 |
160 |
108 |
|
14.10 |
169 |
114 |
|
15.00 |
169 |
114 |
|
15.50 |
178 |
120 |
|
16.00 |
178 |
120 |
|
16.50 |
184 |
125 |
|
17.00 |
184 |
125 |
|
17.50 |
191 |
130 |
|
18.00 |
191 |
130 |
|
18.50 |
198 |
135 |
|
19.00 |
198 |
135 |
|
19.50 |
205 |
140 |
