Quick Details
-
Product Name:
-
MD40 magnetic drill
-
Power Supply:
-
110V/220V
-
Power:
-
1.5HP(1100W)
-
Motor Power:
-
1100W
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DAIXI
-
Weight (KG):
-
15
-
Product Name:
-
MD40 magnetic drill
-
Power Supply:
-
110V/220V
-
Power:
-
1.5HP(1100W)
-
Motor Power:
-
1100W
Products Description

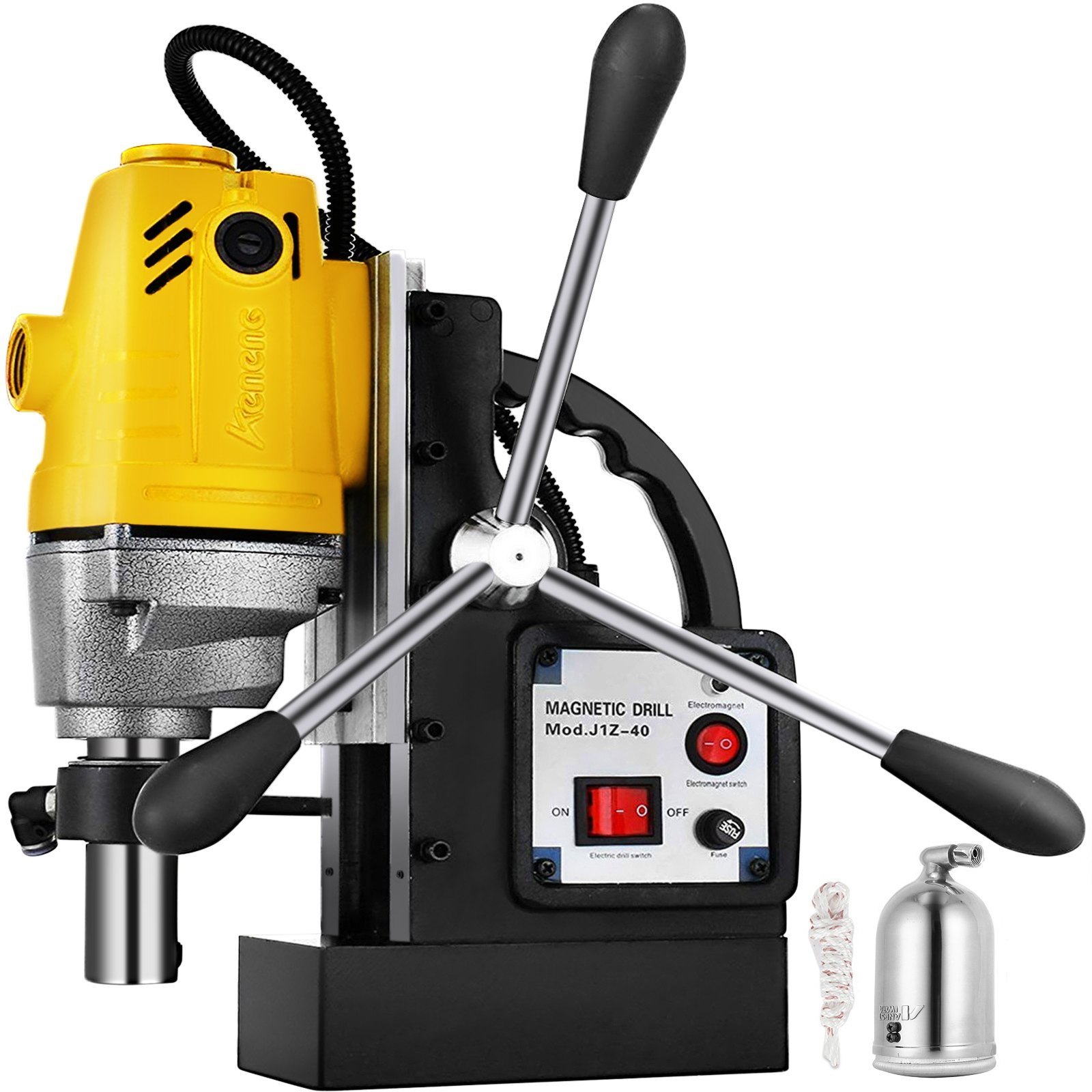

*Superior Performance: Our portable drill press generates exceptionally strong power thanks to its 1100W copper motor. It is capable of drilling into the toughest materials at 550RPM. Maximum Coring Diameter: 1.57 inch/40 mm; Maximum Travelling Distance: 4.92"/125 mm. Besides, our magnetic drill can only be used with hollow boring bits, not with annular bits.
*Useful Accessory Kit: We provide you a rust-proof stainless steel cooling pot with the capacity of 21.36 Cubic Inch/350ml and a pilot pin. The pilot pin can remove screws and assist in the installation & removal of bits.
*12,000 N Magnetic Force: The powerful two-stage magnet can generate 12,000 N of holding force, ensuring the drill press machine will not move in the work. Thanks to its Electromagnet base, our magnetic drill press anchor itself securely during use through its solid iron bottom.
*Thoughtful Designs & Cooling System: This ergonomic design handle provides comfortable grip in operation and transport. These 3 extended crank handles are coated with nonslip rubber for laborsaving operation. Coolant tank, dustproof air inlet, and exhaust air holes are designed for cooling the magnetic drill press during overheating.
*Various Applications: This versatile magnetic drill press is immensely suitable for industrial and steel fabrication, ship or bridge building, railway manufacture, wind power generation, power-plant construction, home improvement, equipment
installation, and a wide swath of other fields.
*Useful Accessory Kit: We provide you a rust-proof stainless steel cooling pot with the capacity of 21.36 Cubic Inch/350ml and a pilot pin. The pilot pin can remove screws and assist in the installation & removal of bits.
*12,000 N Magnetic Force: The powerful two-stage magnet can generate 12,000 N of holding force, ensuring the drill press machine will not move in the work. Thanks to its Electromagnet base, our magnetic drill press anchor itself securely during use through its solid iron bottom.
*Thoughtful Designs & Cooling System: This ergonomic design handle provides comfortable grip in operation and transport. These 3 extended crank handles are coated with nonslip rubber for laborsaving operation. Coolant tank, dustproof air inlet, and exhaust air holes are designed for cooling the magnetic drill press during overheating.
*Various Applications: This versatile magnetic drill press is immensely suitable for industrial and steel fabrication, ship or bridge building, railway manufacture, wind power generation, power-plant construction, home improvement, equipment
installation, and a wide swath of other fields.
Technical Data
|
voltage
|
|
220V
|
|
|
|||
|
Power
|
|
1100W
|
|
|
|||
|
Max. Drilling Diameter (with full drill)
|
|
0.5"(13mm)
|
|
|
|||
|
Max. Drilling Diameter (with core drill)
|
|
1.57"(40mm)
|
|
|
|||
|
Max. Travel Distance
|
|
4.92"(125mm)
|
|
|
|||
|
Max Magnetic Force
|
|
12000N(2700lb)
|
|
|
|||
|
Spindle Diameter
|
|
0.75"(19mm)
|
|
|
|||
|
Idle Speed Approx
|
|
550RPM
|
|
|
|||
|
Rated Speed Approx
|
|
670RPM
|
|
|
|||
|
Maximum Boring Diameter
|
|
1.57"(40mm)
|
|
|
|||
|
Machine Size
|
|
10.5 x 3 x 11.5in(26.7 x 7.6 x 29.2cm)
|
|
|
|||
|
Net Weight
|
|
30 lb(13.6 kg)
|
|
|
|||
