Quick Details
-
Print Dimension:
-
190cm/74.8''
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
InkFa
-
Dimensions(L*W*H):
-
2820*840*1310mm
-
Weight:
-
280 KG
-
Ink Type:
-
Dye sublimation ink
-
Printing Material:
-
Heat Sublimation Paper
-
Resolution:
-
1440 DPI
-
Software:
-
Maintop 6.0
-
Printhead:
-
4720 printhead
-
Print speed:
-
Fast 98 sqm/hour
-
Color:
-
4 Colors (CMYK)
-
Operating System:
-
Win7/Win8/Win10
-
Ink System:
-
Continue Ink System(CISS)
-
Height Adjustment:
-
Automation
-
Certification:
-
CE
Quick Details
-
Plate Type:
-
Flatbed Printer
-
Color & Page:
-
Multicolor
-
Voltage:
-
220V
-
Print Dimension:
-
190cm/74.8''
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
InkFa
-
Dimensions(L*W*H):
-
2820*840*1310mm
-
Weight:
-
280 KG
-
Ink Type:
-
Dye sublimation ink
-
Printing Material:
-
Heat Sublimation Paper
-
Resolution:
-
1440 DPI
-
Software:
-
Maintop 6.0
-
Printhead:
-
4720 printhead
-
Print speed:
-
Fast 98 sqm/hour
-
Color:
-
4 Colors (CMYK)
-
Operating System:
-
Win7/Win8/Win10
-
Ink System:
-
Continue Ink System(CISS)
-
Height Adjustment:
-
Automation
-
Certification:
-
CE
Working Process
Sublimation Printer: Print pattern on Sublimation Paper by Sublimation Ink;
Heat transfer machine/Sublimation Calender:Transfer Pattern on Fabric from Printed Sublimation Paper.
Using a transfer paper printer, you can easily print the patterns required by various customers, and achieve mass
production,pollution-free, simple operation, saving manpower, material and financial resources, which greatly reduces productioncosts.
Details Images
|
Model
|
|

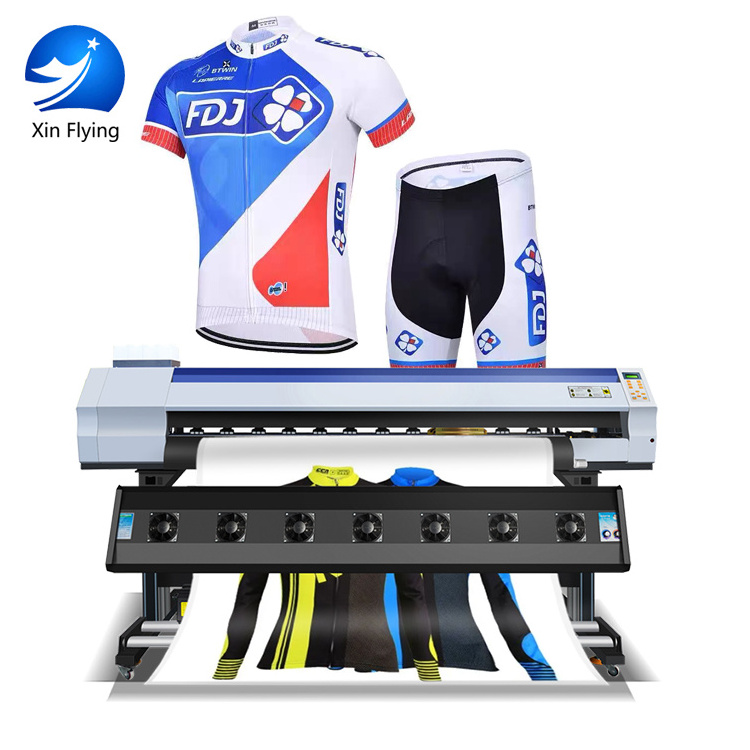

FD1900 Dye Sublimation Printer
|
|
|
Printhead
|
Type
|
2*EPSi3200 ( 2 Epson 4720 )
|
|
|
Printhead
|
Nozzle Qty
|
800*4lines*2pcs printheads
|
|
|
|
Height to Platform
|
2-5mm
|
|
|
Resolution
|
|
3200 DPI
|
|
|
Printing Speed
|
Production Mode
|
2pass 98sqm/h
|
|
|
|
Average Mode
|
3pass 64sqm/h
|
|
|
|
High Resolution Mode
|
4pass 50sqm/h
|
|
|
|
Color
|
C M Y K
|
|
|
|
Type
|
Dye Sublimation
|
|
|
|
Supply Method
|
Siphoning
|
|
|
Media
|
|
Transfer paper (20-100g)
|
|
|
RIP software
|
|
Maintop, Photoprint,Onyx,Wasatch and etc
|
|
|
Max Printing Width
|
|
1900mm
|
|
|
Media Transfer Method
|
|
Auto air shaft feeding and take-up system
|
|
|
Drying Method
|
|
External,Intelligent and air-heat Integrated drying system
|
|
|
Moisture Mode
|
|
Fully sealed auto moisturing and cleaning
|
|
|
Image Format
|
|
JPG,TIF,PDF,BMP and etc.
|
|
|
|
System
|
WIN7 64bit/WIN10 64bit
|
|
|
|
|
Hard disk:500G (system disk more than 100G)
GPU:ATI Discrete CD-ROM:DVD ROM Memory:4G or more CPU:Intel i5/i7 processor |
|
|
|
Transmit Port
|
Gigabit LAN
|
|
|
Work Environment
|
|
Temperature 15-30 centi degree; Humidity 35-65%
|
|
|
|
Input Voltage
|
210-230VAC 50/60HZ 16A
|
|
|
|
Printing system
|
1500W
|
|
|
|
Drying system
|
Max power 9000W
|
|
|
|
Printer Dimension
|
2820*840*1310mm
|
|
|
|
Packing Dimension
|
3060*940*970mm
|
|
|
Weight
|
Net Weight: 280KG Gross Weight:330KG
|
|
|
