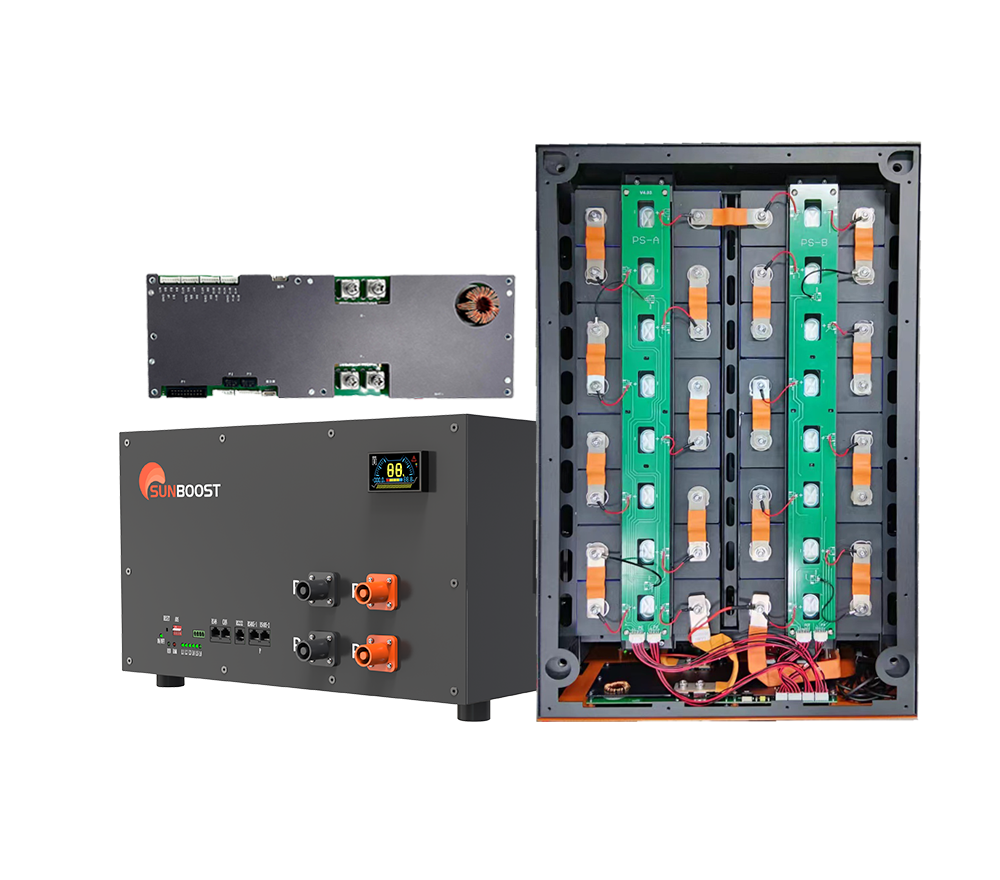

This solution is suitable for people who already have batteries,
the box is equipped with BMS and other accessories
.
You only need
to put the battery in the box and assemble it according to our instructions.Then you can get a 14.3kw solar storage by yourself.
- Product Details
- {{item.text}}
Quick Details
-
Material:
-
Metal
-
Model Number:
-
EASYPOWER 280
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
SUNBOOST 51.2V 280Ah Battery Box
-
Nominal Voltage:
-
48V/51.2V
-
Capacity:
-
280AH
-
Rated Energy:
-
14.336KWH
-
IP Grade:
-
IP21
-
Weight:
-
Approx 30KG
-
Dimensions (L/W/H):
-
770*440*250mm
-
Communicaion Function:
-
RS485 + RS232+CAN
-
Applications:
-
Emergency Power Supply/Solar Energy System
-
BMS Type:
-
Active Balancing
Quick Details
-
Warranty:
-
2 Years
-
Brand Name:
-
SUNBOOST
-
Certification:
-
CE
-
Material:
-
Metal
-
Model Number:
-
EASYPOWER 280
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
SUNBOOST 51.2V 280Ah Battery Box
-
Nominal Voltage:
-
48V/51.2V
-
Capacity:
-
280AH
-
Rated Energy:
-
14.336KWH
-
IP Grade:
-
IP21
-
Weight:
-
Approx 30KG
-
Dimensions (L/W/H):
-
770*440*250mm
-
Communicaion Function:
-
RS485 + RS232+CAN
-
Applications:
-
Emergency Power Supply/Solar Energy System
-
BMS Type:
-
Active Balancing
Product Description
* The battery box suit for 16s 280ah/300ah cells, (the cells size must be 205×174×72mm), is easy to build and use our 280ah/302ah cells to get a 51.2V 15kwh solar storage systme.
* We highly recommended you to use the REAL A -level cells to build a battery pack. It will have a longer life span and a more stable voltage resistance.
Specification
|
Brand
|
SUNBOOST
|
|
Model
|
EASYPOWER 280
|
|
Battery Type
|
280Ah 302Ah 304Ah
|
|
Communication
|
CANBUS and RS485
|
|
BMS
|
48V 16S 200A BMS
|
|
BMS Compatible Inverter Brand
|
Deye,PYLON,Growatt,Victron,Invent,GoodWe,SMA,Voltronic,SRNE,MUST,SOFAR
|
|
Continuous Current
|
200A
|
|
Weight
|
30KG
|
|
Nominal Voltage
|
48V/51.2V
|
|
Battery Box Type
|
Stackable
|
|
Material
|
Stainless Steel
|
|
Size
|
770*440*250mm
|
|
OEM/ODM
|
Acceptable
|
Accessories List
|
Accessory name
|
Quantity
|
Accessory name
|
Quantity
|
|
BMS Board
|
1
|
Fixator
|
4
|
|
BMS Cable
|
1
|
Cable Ties
|
Some
|
|
Communication Interface Board
|
1
|
Battery Box
|
1
|
|
Connection line PCB (A board)
|
1
|
Waterproof Connector
|
4
|
|
Connection line PCB (B board)
|
1
|
Epoxy resin board 1
|
4
|
|
Epoxy resin board 2
|
2
|
Epoxy resin board 3
|
4
|
|
Fuse copper bar A
|
1
|
Fuse copper bar B
|
1
|
|
Positive battery copper bar
|
1
|
Negative battery copper bar
|
1
|
|
Battery copper bar
|
15
|
Fuse Base
|
1
|
|
Fuse
|
1
|
Flat Pad
|
4
|
|
Port Rubber Sleeve
|
4
|
Metal feet
|
4
|
|
Single-sided adhesive EVA
|
20
|
Screws & Nuts
|
Some
|
|
A connecting line
|
2
|
B connecting line
|
2
|
|
Handles
|
4
|
Button
|
3
|
|
Terminal Connector
|
2
|
Display Screen
|
1
|
Other brand bms maybe cannot use the display function, please contact Sula for more details about this solutions. thank you.
