Quick Details
-
Power:
-
5KW
-
Electrical system:
-
48V
-
Battery:
-
Chaowei battery 48V lead-acid batteries
-
Charger:
-
Planstone intelligent car charger 48V/18AH, charging time 8 hours
-
Controller:
-
VanJ 6661-48C350 48V/350AH with CAN communication function
-
DC:
-
high-power non-isolated DC-DC 48V/12V-300W
-
Slope performance:
-
25%
-
Front/rear wheel base:
-
1005mm front / 1075mm rear
-
Wheelbase:
-
2436mm
Quick Details
-
Tire Size:
-
14 inches
-
Dimension:
-
2520*1340*1895mm
-
Motor:
-
KDS 48V AC motor
-
Power:
-
5KW
-
Electrical system:
-
48V
-
Battery:
-
Chaowei battery 48V lead-acid batteries
-
Charger:
-
Planstone intelligent car charger 48V/18AH, charging time 8 hours
-
Controller:
-
VanJ 6661-48C350 48V/350AH with CAN communication function
-
DC:
-
high-power non-isolated DC-DC 48V/12V-300W
-
Slope performance:
-
25%
-
Front/rear wheel base:
-
1005mm front / 1075mm rear
-
Wheelbase:
-
2436mm
Product Description

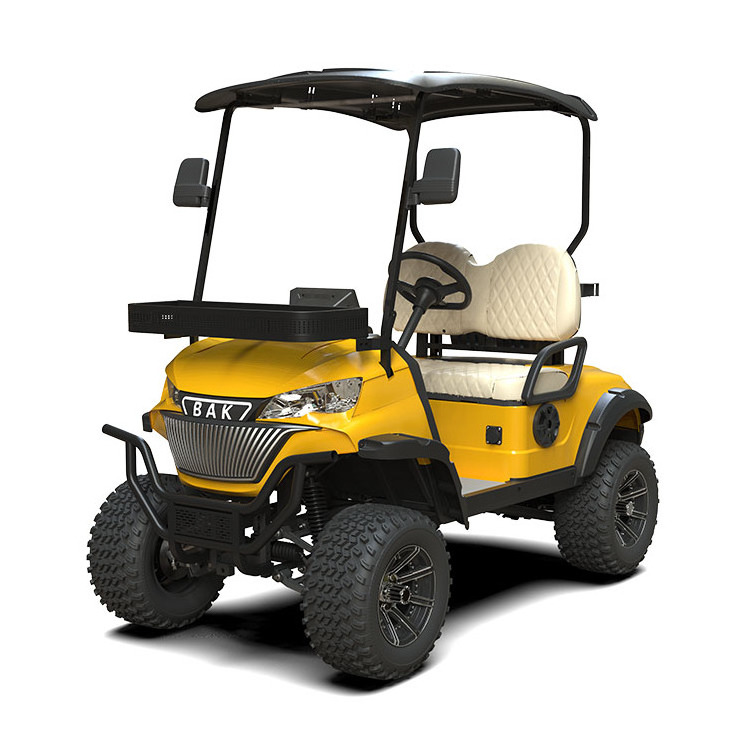

Golf Cart
BAK brand Golf cart series products are for North America, Europe and Australia and other countries and regions developed an electric low-speed vehicle (LSV) products, in foreign countries are widely used in golf courses, farms, large communities, suburban villages and other places to commute.
Details Images
Product features:
★HASDA IP66 waterproof advanced multimedia integrated LCD screen, with vehicle status information;
★HASDA IP66 full range hi-fi speaker H065B(with lights)
★ First-class seat (overall foam molding cushion + solid color advanced imported leather)
★ high-strength aluminum oxide anti-slip floor, corrosion resistance, aging resistance
Suspension and brake system:
★ Front suspension: double swing arm independent front suspension + coil spring + cylinder type hydraulic shock absorption.
★ Rear suspension: integral rear axle, speed ratio 16:1 helical spring shock + cylinder hydraulic shock + rear stabilizer bar
★ Brake system: zero crossing rear axle: four-wheel hydraulic brake, four-wheel disc brake + electronic brake parking (with vehicle traction function)
★ Steering system: Two-way rack and pinion steering system, automatic gap compensation function ★ Frame: high-strength sheet metal trapezoidal frame
Specification
|
Configuration parameter
|
|
|
|
ceiling
|
Frosted black square tube frame +PP material injection molding ceiling
|
|
|
Front gear and wipers
|
DOT certified reversible glass
|
|
|
Safety belt
|
DOT certified two-point seat belt
|
|
|
body
|
The front cover, seat barrel, body and rear tail covering parts are made of automotive injection molding. Frosted black square
tube ceiling column; |
|
|
Flooring
|
Aluminum alloy profile non-slip floor, high strength structure, corrosion resistance, aging resistance
|
|
|
Instrument desk
|
Injection molding instrument table, waterproof double-speed electric lock switch, single-arm combination switch, water cup holder;
12V power supply, USB+Type-c charging, USB external audio input |
|
|
Display screen
|
HASDA IP66 Waterproof 5-inch LCD multimedia meter with vehicle detection function
|
|
|
Sound system
|
HASDA IP66 Full range Speaker H065B(with lights)
|
|
|
seat
|
Integral foam molding cushion; Solid color high-grade imported leather; Rear storage basket (including: bag holder)
|
|
