Quick Details
-
Model Number:
-
DFLD-Y0321
-
Product Name:
-
drainage agriculture water ultrasonic flow meter
-
Keywords:
-
ultrasonic flow meter
-
Medium:
-
Water Liquid
-
Power supply:
-
3.6V Battery
-
Output:
-
4-20mA /RS485 Flowmeter
-
Protection Level:
-
IP68/P65/IP67
-
Connection:
-
Flange Connection
-
Display:
-
LCD display
-
Pressure:
-
1.0Mpa
-
Temperature:
-
20C - +160
Quick Details
-
Type:
-
Variable Area Water Flowmeters
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dafang Dingsheng
-
Model Number:
-
DFLD-Y0321
-
Product Name:
-
drainage agriculture water ultrasonic flow meter
-
Keywords:
-
ultrasonic flow meter
-
Medium:
-
Water Liquid
-
Power supply:
-
3.6V Battery
-
Output:
-
4-20mA /RS485 Flowmeter
-
Protection Level:
-
IP68/P65/IP67
-
Connection:
-
Flange Connection
-
Display:
-
LCD display
-
Pressure:
-
1.0Mpa
-
Temperature:
-
20C - +160
kaifeng liquid drainage agriculture water ultrasonic flow meter sensor price

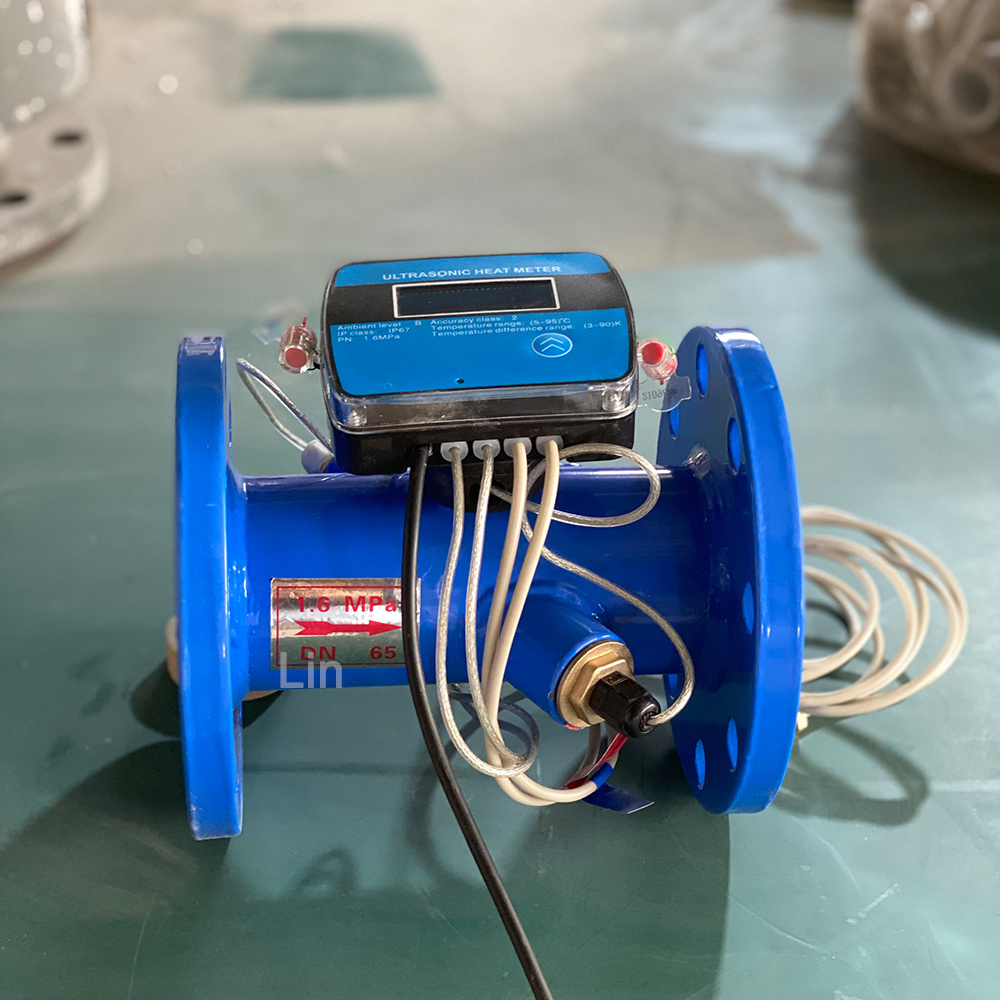

Ultrasonic cold heat meter is a dual meter energy meter that can realize "cold" and "hot" two-way independent metering functions, It show instantaneous heat (cold), instantaneous flow, flow rate, water supply temperature, return water temperature, supply / Backwater accumulation of heat, cumulative flow and other data. The product has the characteristics of convenient installation, accurate measurement and stable operation.
1. Principle and composition
The ultrasonic cooling heat meter is used to measure the heat released or absorbed by the heat exchange system with water as the medium. It can be used for heating and cooling systems as well as for air conditioning and refrigeration systems. The product composed of paired temperature sensors (measuring inlet and backwater temperatures), flow sensors (measuring the volume of piped hot water) and calculating parts (calculating and displaying the cold, heat and heat used).
2. Design and functional characteristics
- Transducer: as the main signal generating part in the ultrasonic heat meter, the imported piezoelectric ceramic chip is adopted, the performance is stable, the consistency is good, and the ultrasonic heat meter can be measured with high accuracy.
- Temperature sensor: PT1000 high-precision platinum resistance, and equipped with precision measurement circuit to ensure high-precision temperature measurement.
- Self-Diagnostic function: during the steady operation of the ultrasonic calorimeter, the system will display the corresponding code if the communication is abnormal, the electricity is insufficient, or Man-made damage. In the top right corner of the screen will displayed the "fault" ,system automatically saves the data and waits for troubleshooting to recover.
- Remote transmission and centralized control function: with M-BUS,485 interface, can realize data remote transmission, centralized control.
- Beautiful appearance, can be suspended in four directions, easy to read and easy to operate.
- Easy installation, dustproof, moisture-proof, waterproof, anti-disassembly and Man-made damage.
| Hot(Cold) Medium: | Water / Homogeneous liquid |
| Accuracy: | 1%, 2%, 3% |
| Pressure Loss: | <0.015Mpa |
| Nominal Pressure: | 2.5Mpa |
| Temperature Sensor: | PT1000 Platinum resistance |
| Temperature Measuring Range: | 1~105℃ |
| Temperature Difference Range: | 3k-75k(Heat meter)/2k-75k(Cold meter) |
| Temperature Resolution: | 0.01℃ |
| Button Mode: | Button / Magnetic inductance / Auto-return |
| Environmental Level: | Category A |
| Protection Level: | IP65/IP67/IP68 |
| Power Supply: | 3.6V Litrium Battery |
| Communication Metrod: | RS485 / M-BUS / 4-20mA / GPRS Communication |
| Communication Protocol: | Modbus/T188(Customized) |
-
How is the flow meter warranty?
We could provide 12~18 months warranty for your flow meter .
-
Could you provide me the shortest lead time?
Our shortest lead time is 5~7 days after your payment.
-
How to pay for that ?
Of course we could accept T/T,Paypal,Trade Assurance Order. You will get full protection for your orders ,more details kindly click Trade Assurance .
-
Do you accept OEM?
Yes, we accept OEM.
-
How to deal with the after-sales?
We will have professional engineers to answer your questions during installation and use.
