Quick Details
-
Brand Name:
-
KANDI
-
Model Number:
-
COWBOY
-
Battery:
-
Lithium Ion Battery
-
MAX RANGE:
-
(40km/h equal speed method, flat road surface) ≥80km
-
Max power:
-
20KW
-
Total capacity of power battery pack:
-
150AH
-
steering type:
-
EPS
-
other configration:
-
3500lbs winch
-
remote control:
-
remote unlock
-
safty system:
-
seat belt/hazard warning/light switch/astern video/astern buzzer
-
COLOR:
-
BLACK , GREY ,YELLOW, BLUE,GREEN
Quick Details
-
Tire Size:
-
14INCH
-
Dimension:
-
2860*1810*1850mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KANDI
-
Model Number:
-
COWBOY
-
Battery:
-
Lithium Ion Battery
-
MAX RANGE:
-
(40km/h equal speed method, flat road surface) ≥80km
-
Max power:
-
20KW
-
Total capacity of power battery pack:
-
150AH
-
steering type:
-
EPS
-
other configration:
-
3500lbs winch
-
remote control:
-
remote unlock
-
safty system:
-
seat belt/hazard warning/light switch/astern video/astern buzzer
-
COLOR:
-
BLACK , GREY ,YELLOW, BLUE,GREEN

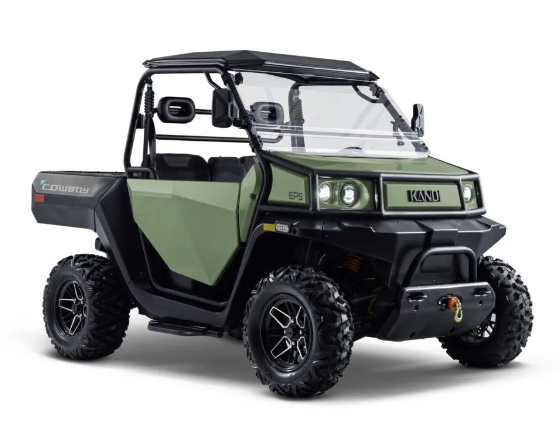

KANDI COWBOY E10K UTV ELECTRIC OFF ROAD 4x4 UTV ELECTRIC WITH EEC
1.Overal size L*W*H :2860*1810*1850mm
2.Distance between wheels F/R :1470*1400mm
3.Wheelbase:1900 mm
4.Front/REAR shock absorber :435mm /525mm
5.Driving type: F/R double motor,4WD
6.Passenger: 2
7.Vehicle :780kg
8. Minimum turning diameter≤9.5m
9.Minimum ground clearance mm ≥225
10.Max speed≥65km/h,(0-50km/hAcceleration time≤9s)
11.Max gradeability≥30%
12.Brake distance(m) 40km/h ≤20
13.Maximum range:(40km/h equal speed method, flat road surface) ≥100km
14.Rated voltage:72V
15.electric motor TYPE:AC asynchronous , Motor layout: FONT+REAR.
16.rated power:5kW
17.peak power:20kW ,Peak torque:200N.M
18.Rated voltage:72v
19.Rated turning speed:3000r/min
20.maximum turning speed:6500r/min
21.Rated power/capacity: 3.5 kW
22.Power Battery type:Lithium Ion Battery
23.The nominal voltage of the cell :3.2V
24.Monomer capacity:150 Ah
25.Total voltage of power battery pack :25.6V
26.Total capacity of power battery pack:150Ah
27.Battery combination:3 boxes series, each box of the battery consists of 8 monomers in series
28.Steering type:EPS
29.Brake system Type :Hydraulic F/R disc brake
30.Parking brake type: Foot brake
31.Front /rear suspension type:Double independent suspension
32.type Spec.:AT26×9_14 / AT26×11_14
33.Tire rim: ALLOY RIM 14×6J / 14×8J
34.Remote control: remote unlock .
35.Car information system:PAD
36.MANAGEMENT SYSTEM:TBOX/BMS/BTMS
37.Safty system:seat belt/hazard warning/light switch/astern video/astern buzzer
38.other configuration:3500lbs winch
39.color: blue , BLUE, SILVER, BLACK ,GREEN
