Quick Details
-
Model Number:
-
FL100XH-16
-
Brand Name:
-
Fols
-
Standard or Nonstandard:
-
Standard
-
Color:
-
blue
-
Seal material:
-
EPDM
-
MOQ of Check valve:
-
1 pcs
-
Weight:
-
depends on differenct size
-
Application Temperature:
-
0-80 degree
-
Disc:
-
Rubber
-
Connection:
-
flange
-
size:
-
DN20-800
-
OEM:
-
Professional OEM
Quick Details
-
Port Size:
-
Standard
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
FL100XH-16
-
Brand Name:
-
Fols
-
Standard or Nonstandard:
-
Standard
-
Color:
-
blue
-
Seal material:
-
EPDM
-
MOQ of Check valve:
-
1 pcs
-
Weight:
-
depends on differenct size
-
Application Temperature:
-
0-80 degree
-
Disc:
-
Rubber
-
Connection:
-
flange
-
size:
-
DN20-800
-
OEM:
-
Professional OEM

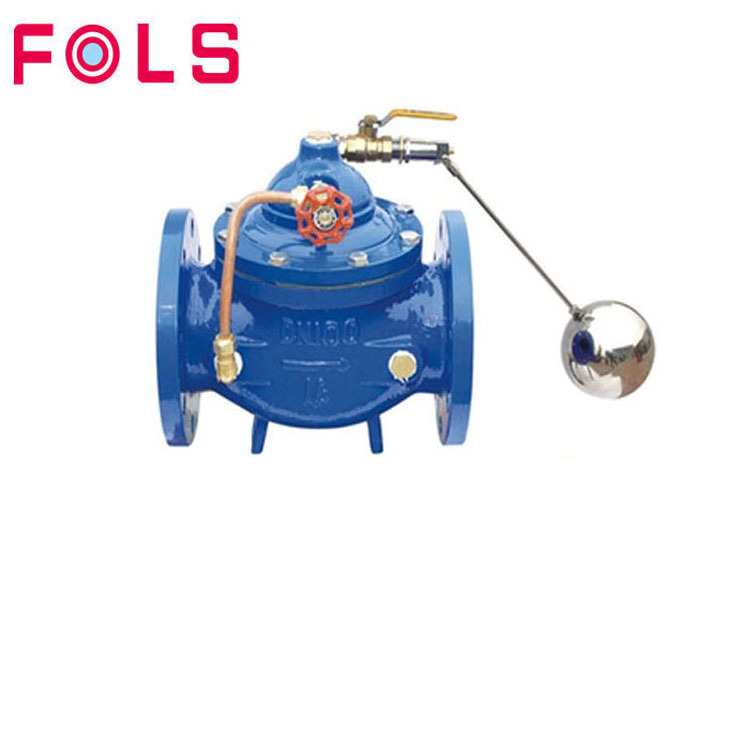

wholesale float valve 100X cast iron float valve for storage tank
|
Nominal diameter
DN(mm) |
20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 |
| L | 180 | 180 | 180 | 240 | 240 | 250 | 285 | 360 | 400 | 455 | 585 | 650 | 800 | 860 | 960 | 1075 | 1075 | 1230 | 1650 | 1750 |
| A | 262 | 262 | 262 | 280 | 280 | 284 | 292 | 330 | 340 | 350 | 392 | 442 | 472 | 532 | 582 | 682 | 682 | 762 | 832 | 932 |
| A1 | 130 | 130 | 130 | 139 | 139 | 141 | 145 | 164 | 169 | 174 | 195 | 220 | 235 | 265 | 290 | 350 | 350 | 390 | 420 | 470 |
| H | 212 | 212 | 212 | 265 | 265 | 310 | 350 | 460 | 520 | 570 | 695 | 780 | 905 | 1025 | 1080 | 1135 | 1135 | 1270 | 1460 | 1640 |
| H1 | 179 | 179 | 179 | 210 | 210 | 215 | 245 | 305 | 365 | 415 | 510 | 560 | 658 | 696 | 735 | 665 | 665 | 725 | 865 | 975 |
| F | 116 | 116 | 116 | 170 | 170 | 180 | 210 | 275 | 310 | 355 | 460 | 500 | 580 | 640 | 715 | 830 | 830 | 920 | 980 | 1050 |
| Parts Name | Material |
| Valve body | Dutile iron, stainless steel, Cast Seel |
| Valve seated seal | Rubber |
| Connection type | Flange |
| Application temperature | ≤80°C |
| Valve stem | Stainless steel |
Feature of float valve:
The float valve is consist of main valve, needly valve, float ball, the water tank float valve are designed to control
the water level of liquid. it open or shut the valve to control the water and prevent water from upstream, The float
valve is unacted no matter the preussre is high or low, with the characterized by water tight, smooth operation,
easy maintenance.
We also make the electric actuator:
FOLS electric valve actuator has the multi-funtion such as: ON/Off function, regulating functhion, (whatever you can adjust
the dis of butterfly valve), it depens on your technical request for butterfl y valve.ball valve, gater valve, globe valve
We have different kinds of butterfly valves, each adapted for different pressures and different usage. The zero offset
butterfly valve, double offset butterfly valve, the triple offset butterfly valve. also has different connect type: flange conn-
ection butterfly valve, wafer-style butterfly valve, At last: Concentric butterfly valves, Doubly-eccentric butterfly valves(
double-offset butterfly valve) Triply-eccentric butterfly valves ( triple-offset butterfly valves), We waiting for your selectin.
Pindly noted: all this butterfly valves can assemble our electric actuators
Our valve actuators for difference sizes of ductile iron butterfly valve
