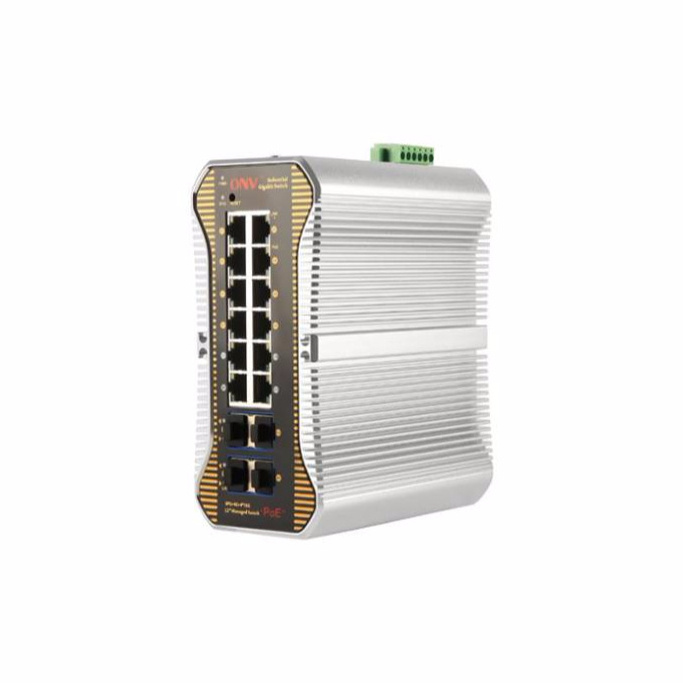

16-port 10/100/1000M L2+ managed industrial 10g ethernet poe switch IP40 for cctv system(ONV-IPS36168PFM)

Model

ONV-IPS36168PFM

Interface

8*10/100/1000M PoE ports (Data/Power);

4*10/100/1000M RJ45 ports;

4*1/10G uplink SFP+ fiber slot ports (Data);

1*Console RS232 port (115200,N,8,1);

2 sets of V+, V- redundant DC power interface (6 Pin Phoenix terminal)

PoE Port

Port 1-8 can support POE @ IEEE802.3af/at

Network Protocol

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;

IEEE802.3u 100Base-TX;

IEEE802.3ab 1000Base-T;

IEEE802.3z 1000Base-X;

IEEE802.3ae 10GBase-LR/SR

IEEE802.3x

PoE Standard

IEEE802.3af/at

Ethernet Port

Port 1-12 can support 10/100/1000BaseT (X) automatic detection, full / half duplex MDI/MDI-X adaptive

SFP Port

10G SFP+ optical fiber interface, default matching optical modules, need to buy separately, (optional order mode / multi-mode, single fiber / double fiber optical module.

Forwarding Mode

Store and Forward (full wire speed)

Switching Capacity

368Gbps

Forwarding Rate@64byte

77.38Mpps

MAC

24K

Buffer Memory

24M

Twisted Pair Transmission

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)

1000BASE-T: Cat5e or later UTP(≤100 meter)

Optical Cable

Multi mode: 850nm 0 ~ 550M,single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM.

Power Supply Pin

Only support 1/2 (+), 3/6 (-)

MAX / Average Power Per Port

30W/15.4W

30W/30W

Total PWR / Input Voltage

120W (48-57VDC)

240W (50-57VDC)

Power Consumption

Standby:<15W; Full load:120W

Standby:<16W; Full load:240W

LED

Power indicator : PWR (green); System indicator :(green); Network indicator: Link (yellow); SFP indicator: L/A (green); PoE indicator: PoE (green)

Power Supply

No, see accessories information table to buy and use

Operation TEMP / Humidity

-40~+80°C;5%~90% RH Non condensing

Storage TEMP / Humidity

-40~+85°C;5%~95% RH Non condensing

Dimension

166*149*74.5mm

Net /Gross Weight

<1.9kg / <2.4kg

Lightning protection / protection level

Lightning protection: 6KV 8/20us;Protection level: IP40

IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge

IEC61000-4-3(RS):10V/m(80~1000MHz)

IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV

IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV

IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz)

IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s

IEC61000-4-9(pulsed magnet field):1000A/m

IEC61000-4-10(damped oscillation):30A/m  1MHz

IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV

IEC61000-4-16(common-mode transmission):30V; 300V,1s

FCC Part 15/CISPR22(EN55022):Class A

IEC61000-6-2(Common Industrial Standard)

Mechanical Properties

IEC60068-2-6 (anti vibration)

IEC60068-2-27 (anti shock)

IEC60068-2-32 (free fall)

Certification

CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS;

Warranty

5 years , lifelong maintenance.
