Quick Details
-
Forming Time:
-
Welding Culinderical
-
Welding Mode:
-
TIG MIG MAG SAW
-
Welding Diameter:
-
30-1000mm
-
Dimensions:
-
Optional
-
Usage:
-
Welding
-
Voltage:
-
standard
-
Weight (KG):
-
2000 KG
-
Suitable Tank Length:
-
500mm-3000mm
-
Suitable Tank Diameter:
-
30mm-1000mm
-
Suitable Wall Thickness:
-
0.3mm-4mm
-
Material:
-
Carbon Steel, Stainless Steel, etc
-
Welding process:
-
TIG, MIG/MAG, Plasma, etc
-
Process technology:
-
Shot blasting
-
Electric components:
-
Imported brand
Quick Details
-
Marketing Type:
-
Hot Product 2021
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Volcano
-
Forming Time:
-
Welding Culinderical
-
Welding Mode:
-
TIG MIG MAG SAW
-
Welding Diameter:
-
30-1000mm
-
Dimensions:
-
Optional
-
Usage:
-
Welding
-
Voltage:
-
standard
-
Weight (KG):
-
2000 KG
-
Suitable Tank Length:
-
500mm-3000mm
-
Suitable Tank Diameter:
-
30mm-1000mm
-
Suitable Wall Thickness:
-
0.3mm-4mm
-
Material:
-
Carbon Steel, Stainless Steel, etc
-
Welding process:
-
TIG, MIG/MAG, Plasma, etc
-
Process technology:
-
Shot blasting
-
Electric components:
-
Imported brand

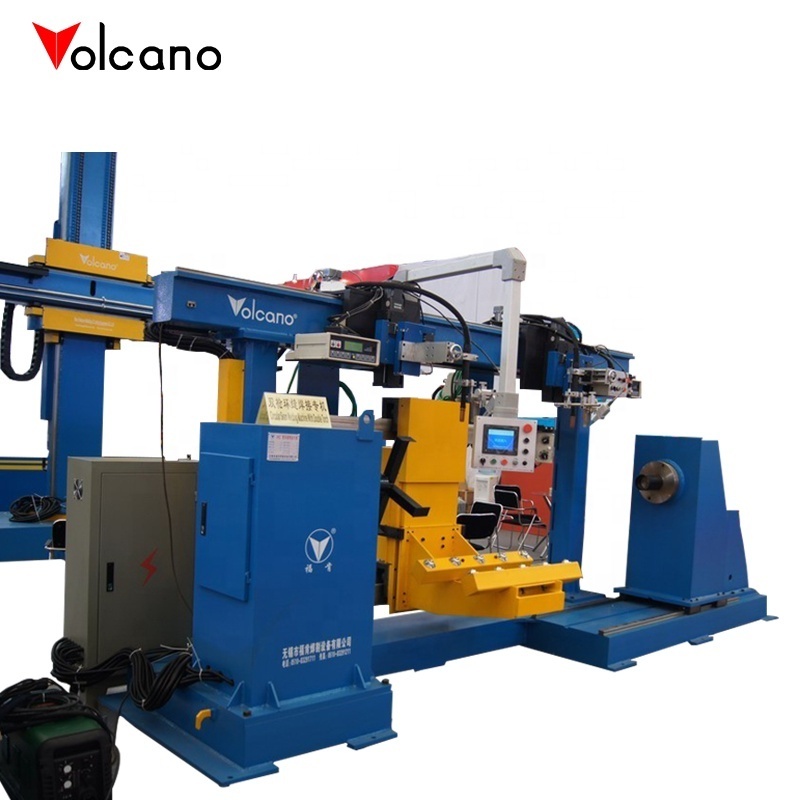

Circle Seam Welding Machine
Circular seam welding machine is mainly used for circular seam butt or lap joint of sheet barrel. It adopts
structure of head & tail stock and mainly composes of head stock, bed, tail stock support, welding torch holder,
traveling carriage and so on.
Main Parameter
| Model | HHZ-1000 | HHZ-1500 | HHZ-2000 | HHZ-2500 | HHZ-3000 | |||
| Welding length (mm) | ≤1000 | ≤1500 | ≤2000 | ≤2500 | ≤3000 | |||
| Min. cylinder diameter (mm) | φ30-φ300 | φ50-φ400 | φ100-φ500 | φ150-φ800 | φ200-φ1000 | |||
| Rotation speed (rpm) | 0.125-2.5 | 0.075-1.5 | 0.075-1.5 | 0.05-1 | 0.05-1 | |||
| Speed control | Various Frequency Drive | |||||||
| Work piece clamp method | Pneumatic | |||||||
Circular Seam Welding Machine
Circular Seam Welding Machine
Circular Seam Welding Machine (export to Bulgaria)
Circular Seam Welding Machine (with robots)
Steel pipe wall surfacing
Hydraulic Circular Seam Welding Machine
