Quick Details
-
Power Source:
-
Electric, Manual
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KH
-
Model Number:
-
KSD301
-
Cover:
-
fixed/ moveable/ screw
-
Case:
-
bakelite/ceramic
-
Product name:
-
Snap-action thermostat
-
Switch Type:
-
Normally Closed/Open
-
Temperature range:
-
45~270°C
-
Reset Type:
-
Auto-reset and Manual-reset
-
Terminal's size:
-
customized
-
Safety Approval Certificate:
-
UL.TUV.DVE.CB.CQC.CQM.SGS,ROHS ,REACH
-
Contact capacity:
-
100,000 times
-
Thermostat Type:
-
Other Home Appliance Parts
Quick Details
-
After-sales Service Provided:
-
Return and Replacement
-
Warranty:
-
1 Year
-
Application:
-
Commercial, Household
-
Power Source:
-
Electric, Manual
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KH
-
Model Number:
-
KSD301
-
Cover:
-
fixed/ moveable/ screw
-
Case:
-
bakelite/ceramic
-
Product name:
-
Snap-action thermostat
-
Switch Type:
-
Normally Closed/Open
-
Temperature range:
-
45~270°C
-
Reset Type:
-
Auto-reset and Manual-reset
-
Terminal's size:
-
customized
-
Safety Approval Certificate:
-
UL.TUV.DVE.CB.CQC.CQM.SGS,ROHS ,REACH
-
Contact capacity:
-
100,000 times
-
Thermostat Type:
-
Other Home Appliance Parts

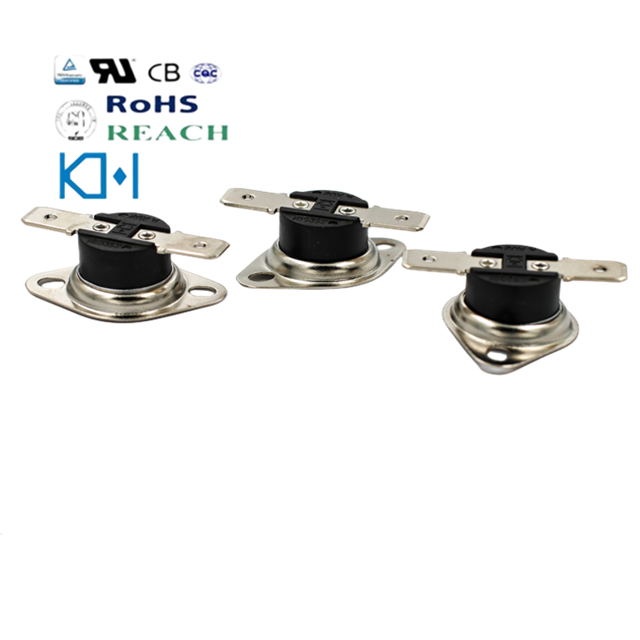

KSD301 series snap-action use in a great variety of small home appliances, such as portable icebox, to provide temperature control or temperature protection. This can be divided into 7 sub-series: KSD301,KSD301R,KSD301G,KSD301GR,KSD301-SG,KSD301R-M,KSD301,GR-M
Our advantage
We are professional manufacture KSD 301 thermostat .
Our thermostat have the advantages of With stable performance, high precision, small size, light weight, high reliability, long lifetime , No arcing ,small radio interference .
And have passed UL .TUV.DVE.CB.ISO.CQC.SGS.ROHS.REACH ect safety certificate. I believe we can meet your market requirement .
Technical Parameters
1.Electrical parameters: 1)TUV.DVE.CQC AC250V 50 ~ 60Hz 5A / 10A / 16A (resistive load)
2) UL AC125V 50Hz 5A 10A 16A (resistive load)
2.Body:Bakelite or ceramic
3 Action: Normally open or normally closed.
4.Reset Method: automatic reset and manual reset
5.Action temperatures range:45~300℃(Optional)
6.Recovery and action temperature difference: 5~200℃(Optional)
7.Temperature accuracy: ±3 ±5 ±10 degrees
8.Circuit resistance: ≤50mΩ
9.Insulation resistance:≥5mΩ (DC500V Normal State)
10.Dielectric Strength: AC50Hz 2500V /3S, no breakdown blinding (Normal State)
11.Life cycle:≥100000
12.Mounting bracket: Customized according to customer's requirements
13.Terminal:Customized according to customer's requirements
14.Terminal angle:Customized according to customer's requirements
15.Heat resistance: PF180℃.UP / PPS 220℃ EC 250℃ (24 hours)
SAFETY CERRIFICATE
| Type | Max.Operating values | Rated vlotage | Rated current | Life |
| KSD301 SERIES | 185℃ | 250VAC | 5A,10A,16A | 100,000 cycles |
| KSD301R SERIES | 185℃ | 250VAC | 5A,10A,16A | 10,000 cycles |
| KSD301G SERIES | 270℃ | 250VAC | 5A,10A,16A | 100,000 cycles |
| KSD301GR SERIES | 270℃ | 250VAC | 5A,10A,16A | 10,000 cycles |
| KSD301R-M SERIES | 185℃ | 250VAC | 5A,10A,16A | 10,000 cycles |
| KSD301GR-M SERIES | 270℃ | 250VAC | 5A,10A,16A | 10,000 cycles |
| Type | Max.Operating values | Rated vlotage | Rated current | Life |
| KSD301 SERIES | 150℃ | 125VAC | 5A,10A,16A | 100,000 cycles |
| KSD301-R SERIES | 150℃ | 125VAC | 5A,10A,16A | 10,000 cycles |
| KSD301-G SERIES | 240℃ | 125VAC | 5A,10A,16A | 100,000 cycles |
| KSD301-GR SERIES | 240℃ | 125VAC | 5A,10A,16A | 10,000 cycles |
| KSD301-SG SERIES | 160℃ | 125VAC | 5A,10A,16A | 100,000 cycles |
*TERMINALS AND COVERS OF BIMETAL THERMOSTAT CAN BE CUSTOMIZED UNDER YOUR REQUEST. PLEASE REFER TO OUR SPECIFICATION. WELCOME TO OUR WEBSITE TO GET MORE INFORMATION ABOUT BIMETAL THERMOSTATS.
