Quick Details
-
Brand Name:
-
sharphy
-
Model Number:
-
DC 0-100V Voltmeter
-
Supply Voltage:
-
DC 0 ~ 100V
-
Operating Temperature:
-
-10 to 65° C
-
Dimensions:
-
0.28"
-
DIY Supplies:
-
Electrical
Quick Details
-
Measuring Range:
-
DC 0 ~ 100V
-
Accuracy Class:
-
1% (± 1 digit)
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
sharphy
-
Model Number:
-
DC 0-100V Voltmeter
-
Supply Voltage:
-
DC 0 ~ 100V
-
Operating Temperature:
-
-10 to 65° C
-
Dimensions:
-
0.28"
-
DIY Supplies:
-
Electrical

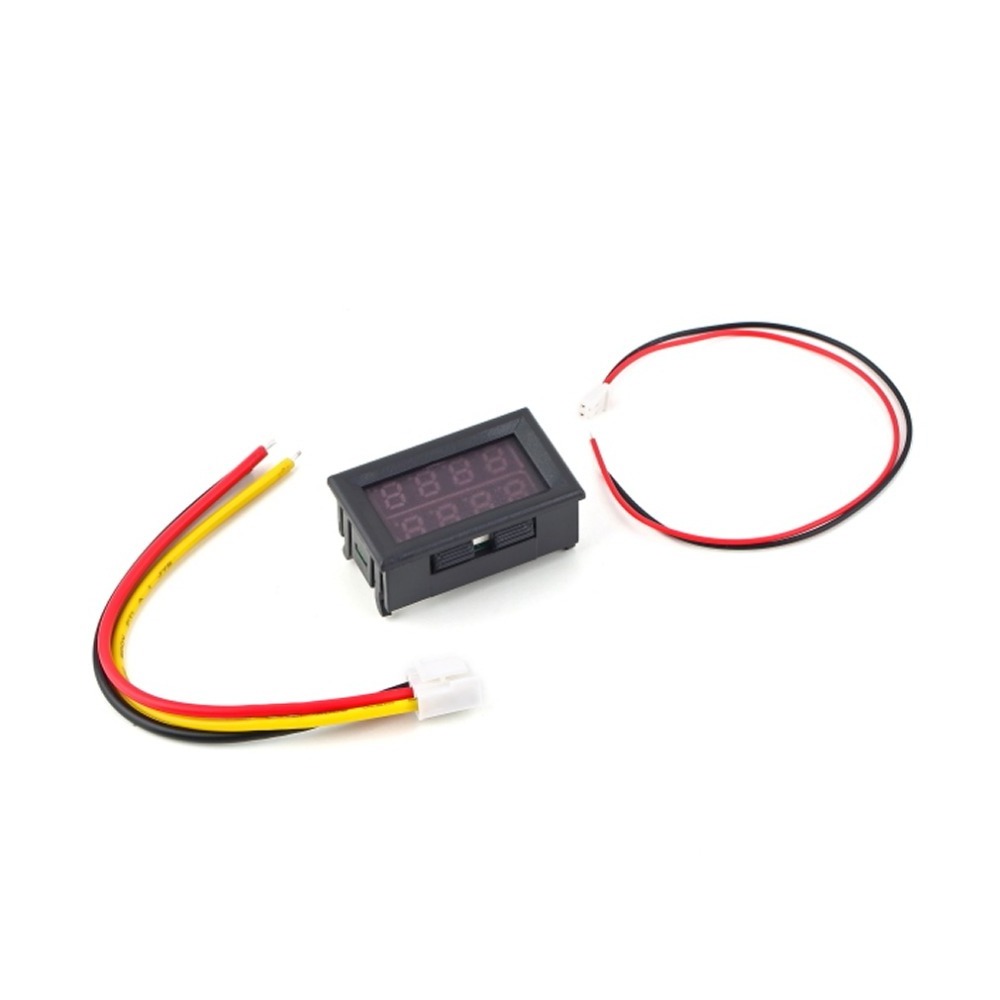

DC 0-100V Voltmeter Ammeter 10A Red LED Panel Amp Digital Volt Gauge Display New
Features:
100% Brand New and High QualityDisplay color: Red (dual display)Operating voltage:for DC 4.5 ~ 30VMeasure voltage: for DC 0 ~ 100VMinimum resolution (V): 0.1VRefresh rate: ≥500ms / timesMeasure accuracy: 1% (± 1 digit)Minimum resolution (A): 0.01AOperating Current: <20mAMeasure current: 10A (direct measurement, built-in shunt)Operating temperature: -10 to 65° COperating Humidity: 10 to 80% (non-condensing)Mounting cutout: Approx. 4.6 x 2.6cm/1.82 x 1.03inchDimensions: Approx. 4.8 x 2.9 x 2.2cm/1.89 x 1.14 x 0.87inch
conection of terminal wires
terminal (white-black):black wire conect to nothing(insulation seal)terminal(white-black):
white wire conect to the cathode of machine/controller/accumulator (DC 4.5 ~ 30V)
terminal(green-red-black):green wire conect to the cathode of machine/controllerterminal(green-red-black):red wire conect to the cathode of machine/controller/accumulatorterminal(green-red-black):black wire conect to the cathode of accumulator
Package Included:
1x Voltmeter Ammeter
